Aluminum alloy painted junction box with silicone seal , IP66/67, RAL9006, 128x103x55mm, t = -60
Code: 653S01
Aluminum alloy painted junction box with silicone seal , IP66/67, RAL9006, 128x103x55mm, t = -60
Code: 653S01
| Mounting method | Universal |
| Colour | Grey |
| Width, mm | 103 |
| Depth, mm | 55 |
| Length, mm | 128 |
| Material | Aluminium |
| Cover attachment | Screwed |
| Degree of protection (IP) | IP67 |
| Shape | Rectangular |
| Type of housing feed-through | None |
| Surface protection | Untreated |
| Product type | Junction box with silicone seal |
| Material | Aluminum Alloy UNI 5076 |
| Color | gray |

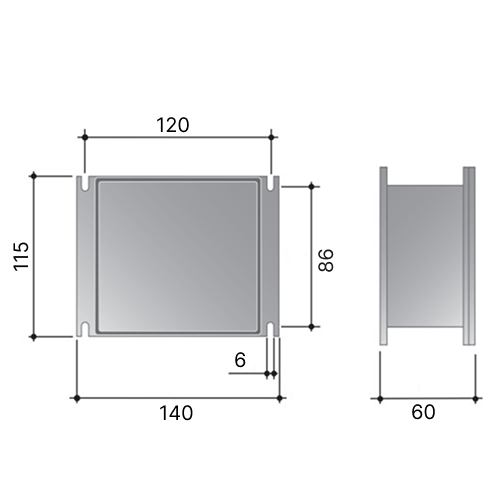

| Height, mm | 115 |
| Width, mm | 140 |
| Depth, mm | 60 |
| Temperature of mounting, °C | -60 ... +70 °С |
| Temperature of operation, °C | -60 ... +70 °С |
| Width (nominal), mm | 128 |
| Height (nominal), mm | 103 |
| Depth (nominal), mm | 55 |
| Ingress Protection rating, IP | IP66/IP67 |
