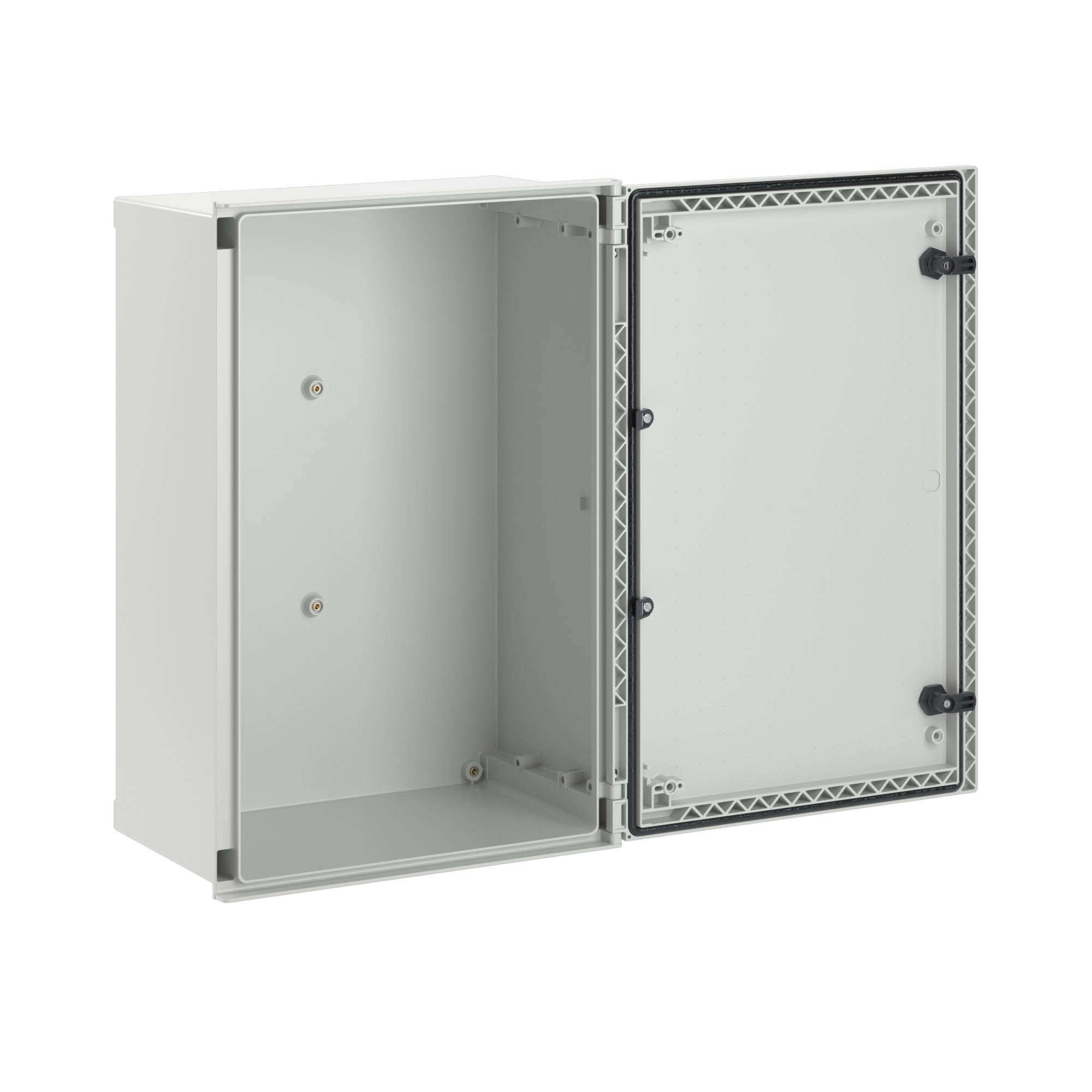

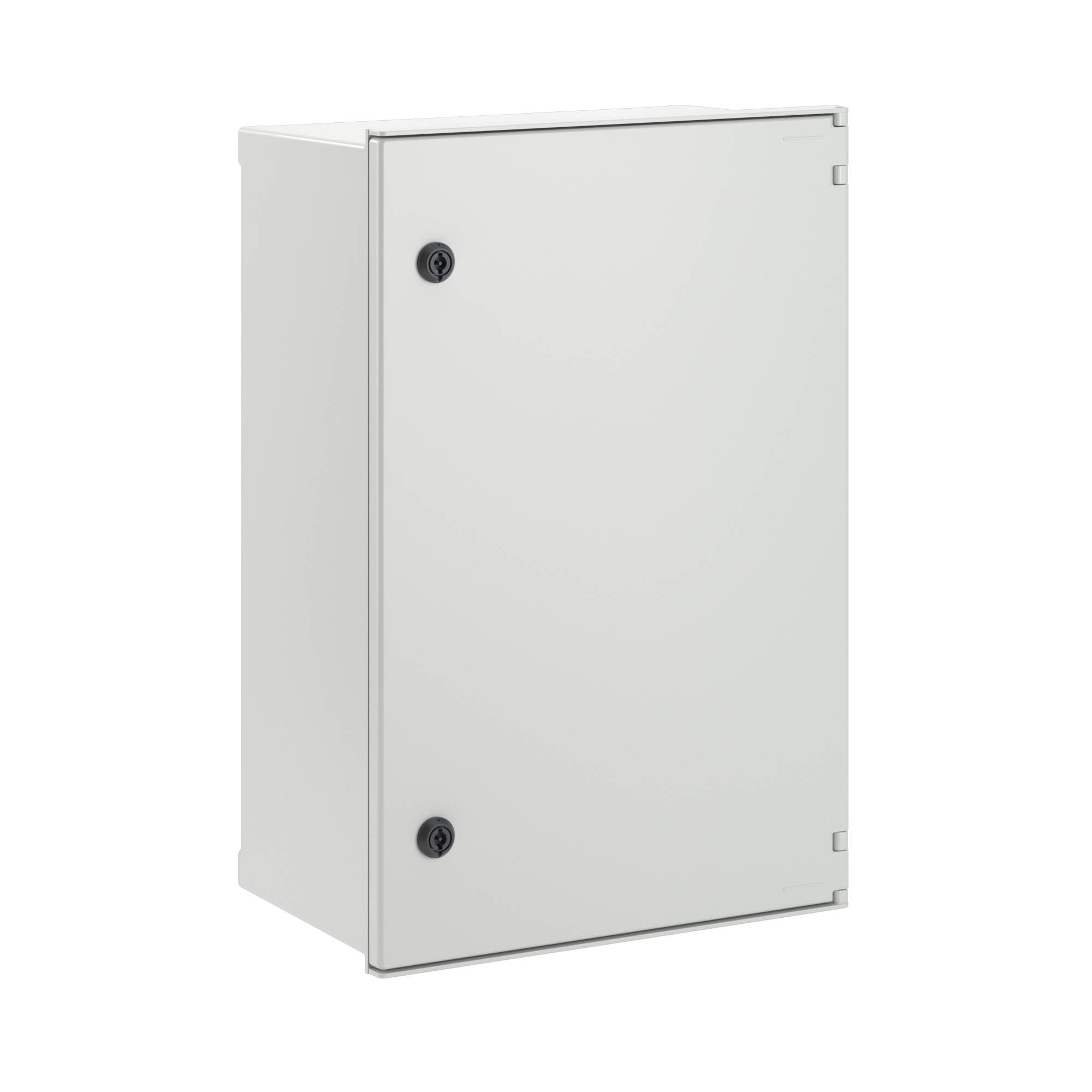

Solid wall-mounted fibreglass enclosure w/o MP with solid door 600х500х230 mm

Code: CN50659

Solid wall-mounted fibreglass enclosure w/o MP with solid door 600х500х230 mm

Code: CN50659
Colour Grey
Width, mm 500
Height, mm 600
Depth, mm 230
RAL-number 7035
With mounting plate Yes
Number of doors 1
Number of locks 2
EMC-version Yes
With glazed door Yes
Material Plastic
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door Yes
Surface finishing Untreated
With backside door Yes
Impact strength IK10
Material quality GRP (Glass fiber reinforced plastic)
Wall build in Yes

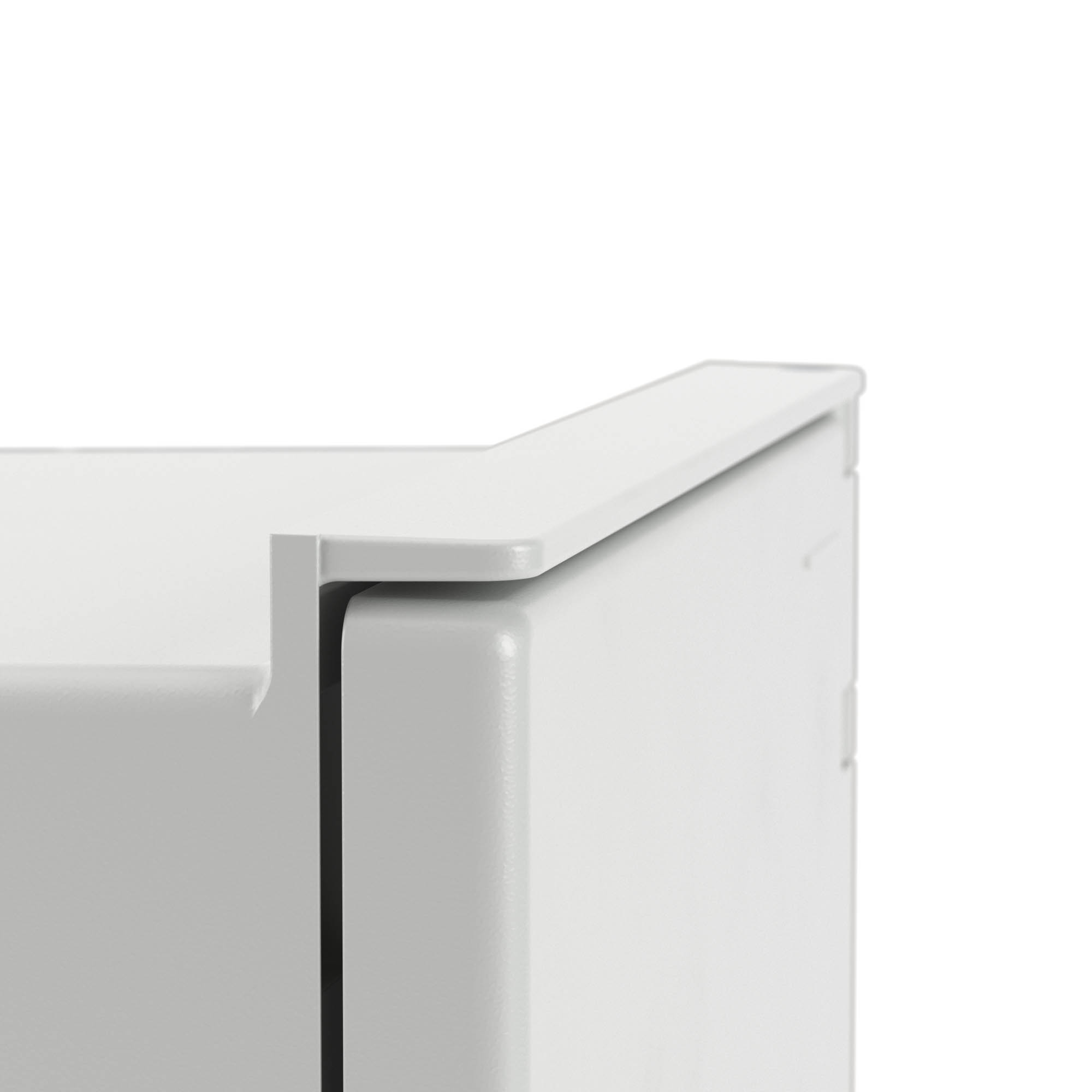

Pitched roof Yes
Pole fastening Yes
Product type Solid Wall-mounted Fibreglass Enclosures
Mounting type Wall-mounted
Material Fiberglass
Door type Solid door
Degree of protection IP66
Climatic version (according to GOST 15150-69) UHL1
Flammability ratings (according to UL94) V0
Impact protection ratings IK10
Delivery package Front door, solid enclosure, screws for direct wall mounting.
Modification possibility Symmetrical enclosure. The door hinge is changed by turning the enclosure. Cut-outs on request.
Height 600 mm
Width 500 mm
Depth 230 mm
