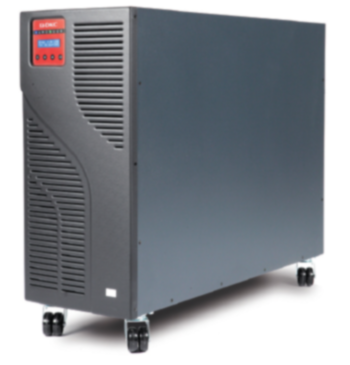

Online UPS (3/3), 12 kVA, 40 x 7 Ah
Code: TRIOTT12A15
Online UPS (3/3), 12 kVA, 40 x 7 Ah
Code: TRIOTT12A15
| Width, mm | 300 |
| Height, mm | 700 |
| Depth, mm | 900 |
| Weight, kg | 145 |
| Bridging time full load, min | 9 |
| Construction type | Free standing model |
| Input voltage, V | 315...470 |
| USV- technology | Online |
| Output effective power, W | 12000 |
| Output apparent power, VA | 12000 |
| Phase | Three-Phase |
| Modifications of Output sockets | Terminals |
| Cold start | Yes |
| Auto-restart | Yes |
| Interface | EPO, RS-232, AS400, SNMP |
| External Battery | Yes |
| Service Bypass | Yes |
