No name
Code:

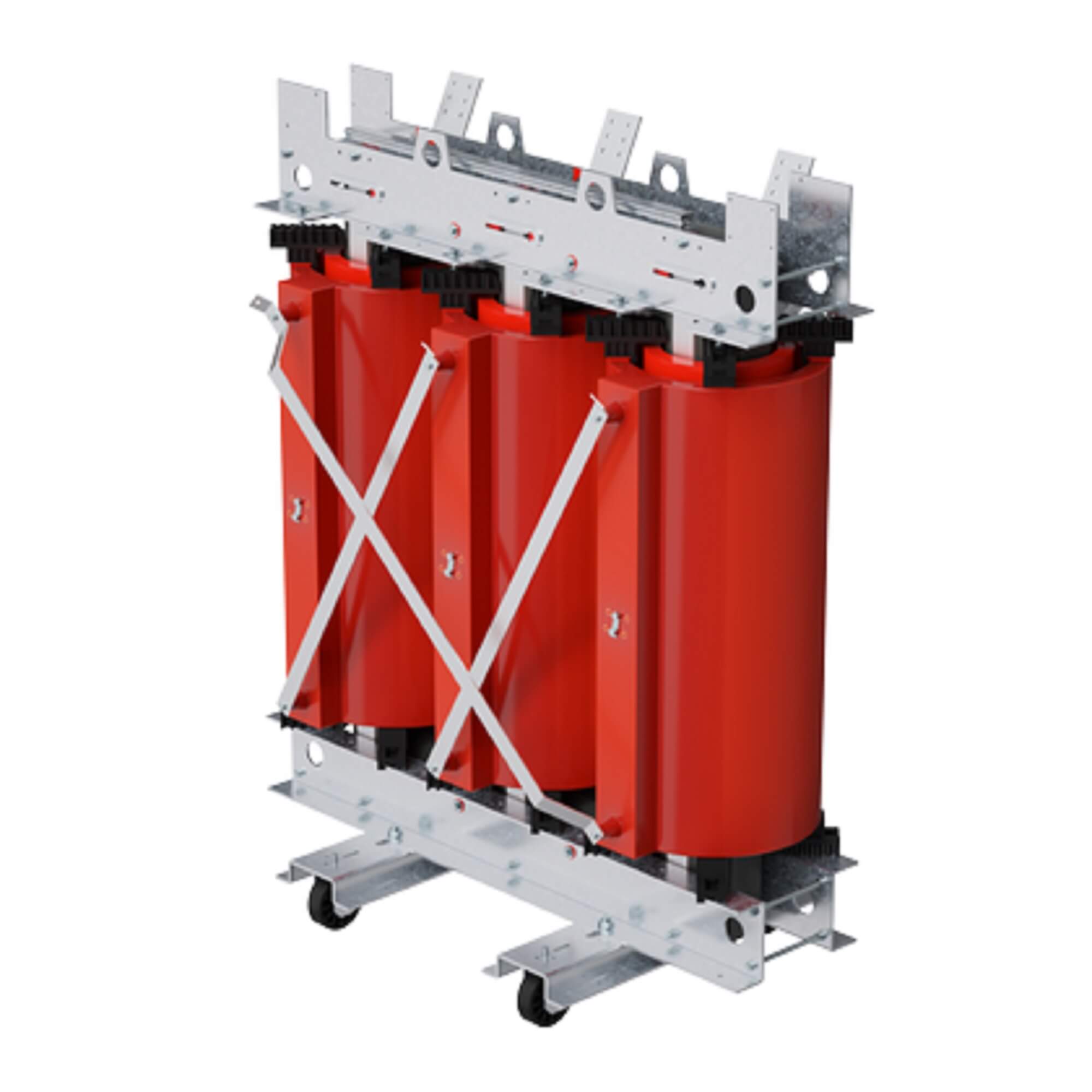

TDA10BDYN5AF000
No name
Code:
TDA10BDYN5AF000
| Width, mm | 1500 |
| Height, mm | 1850 |
| Depth, mm | 970 |
| Wiring system | DY |
| Degree of protection (IP) | IP00 |
| Built as energy saving transformer | No |
| Rated power, VA | 1000 |
| Type of insulation material according to IEC 85 | F |
| Primary voltage, kV | 6 |
| Secondary voltage, kV | 0.4 |
| Uk | 0.06 |
| Po | 1700 W |
| Pk 120ºC | 10500 W |
| Sound preassure level | 58 dB |
| Option | Forced ventilation antivibration mounts |
