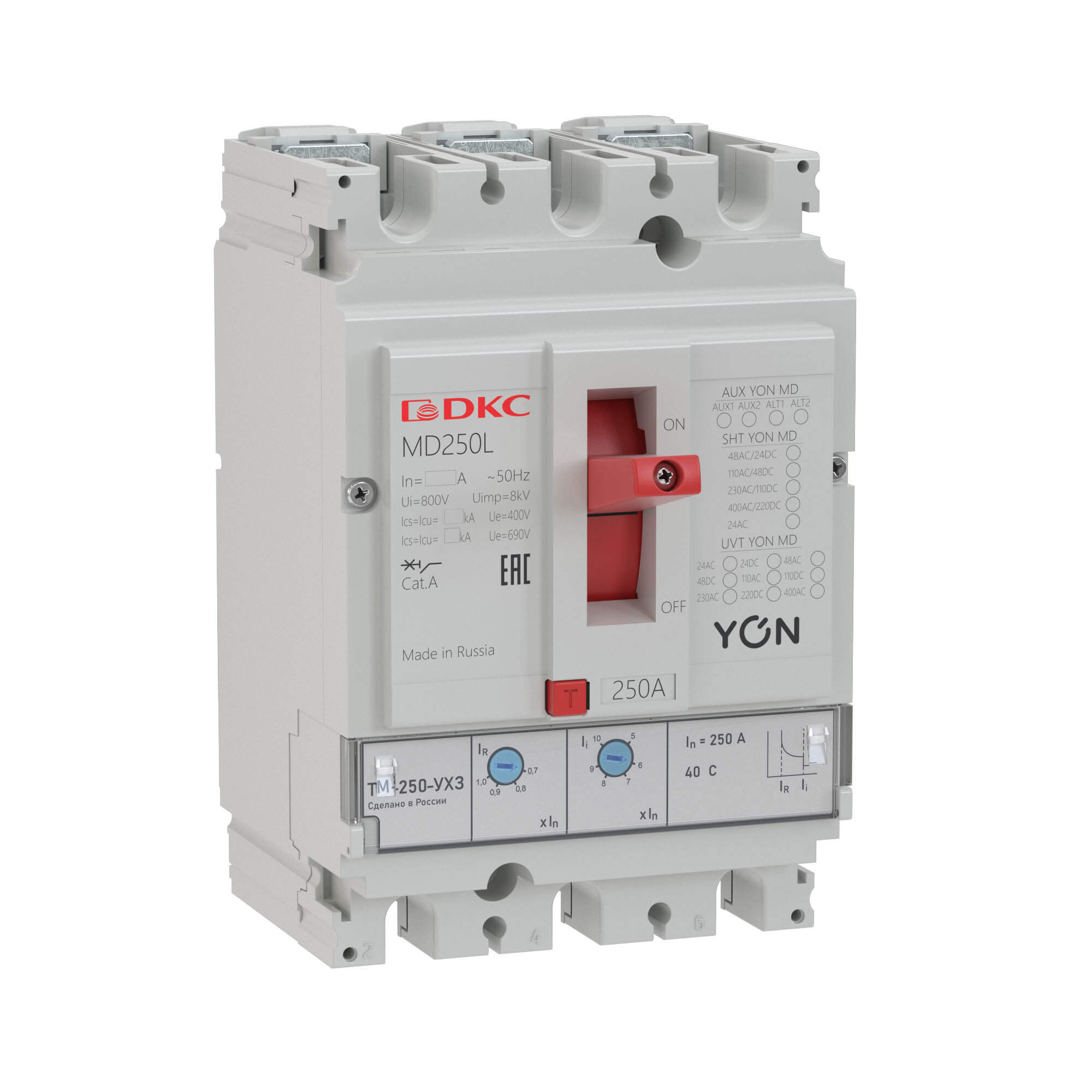

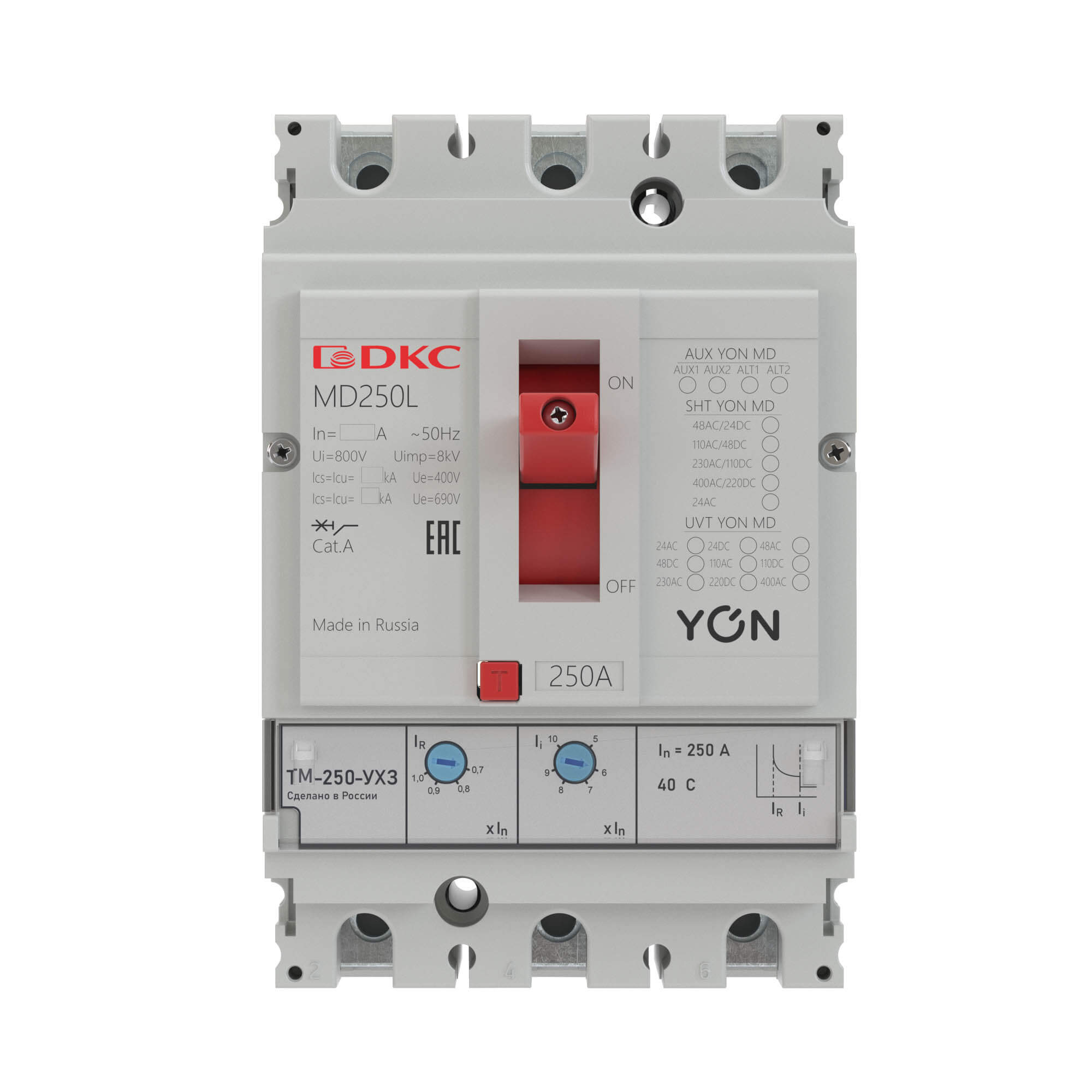

Molded case circuit breaker YON MD250L-TM063
Code: MD250L-TM063
Molded case circuit breaker YON MD250L-TM063
Code: MD250L-TM063
| Rated permanent current Iu, A | 63 |
| Number of poles | 3 |
| Overload release current setting, A | 44…63 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Screw connection |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 25 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| With under voltage release | No |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Rocker lever |
| DIN rail (top hat rail) mounting optional | No |
| Rated current In | 63 A |
| Q'ty of poles | 3 |
| Type release | Thermal and electromagnetic |
| Breaking Capacity Limit Icu | 25 kA |
| Regulation of currents in the overload zone | Yes |
| Regulation of currents in the short-circuit zone | No |
