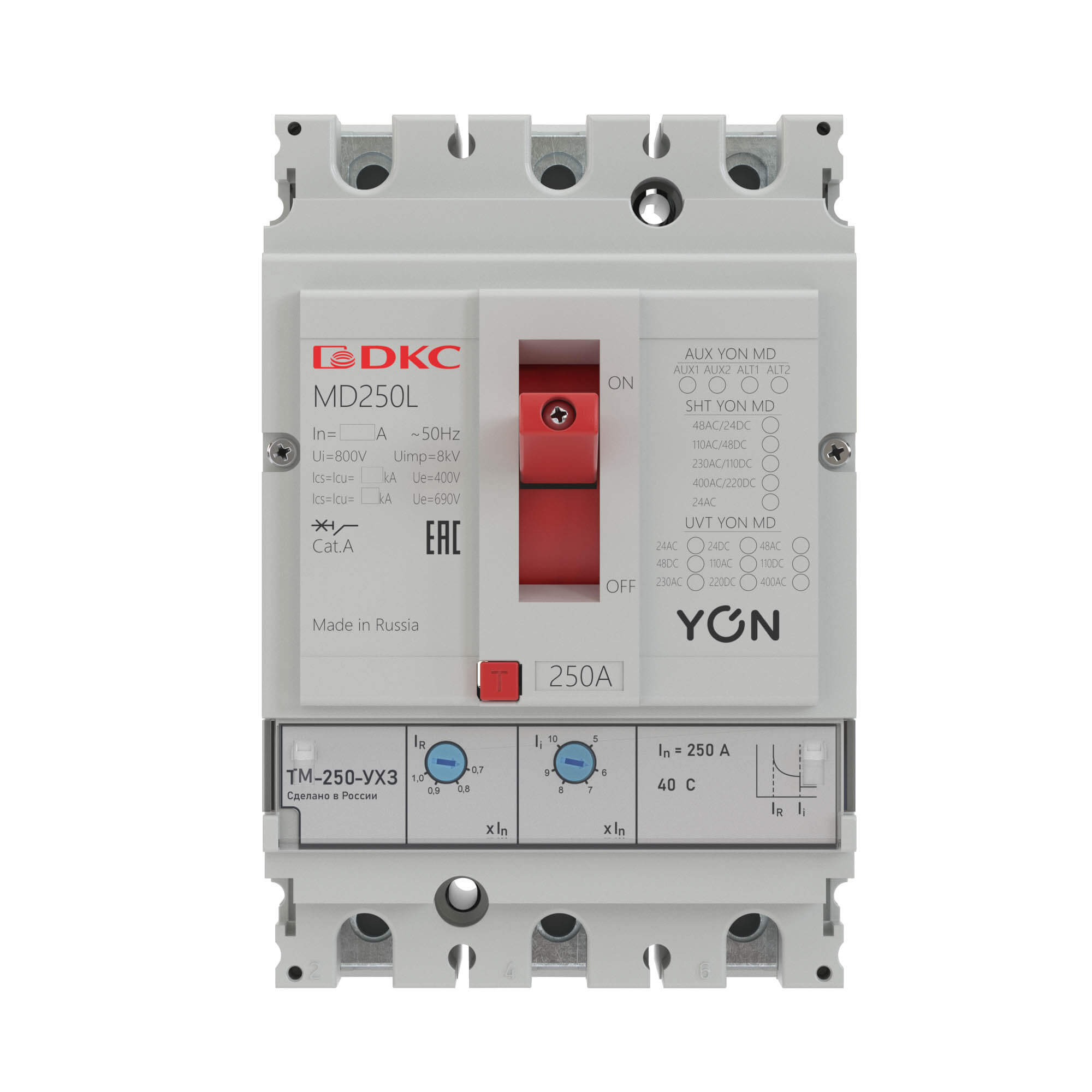

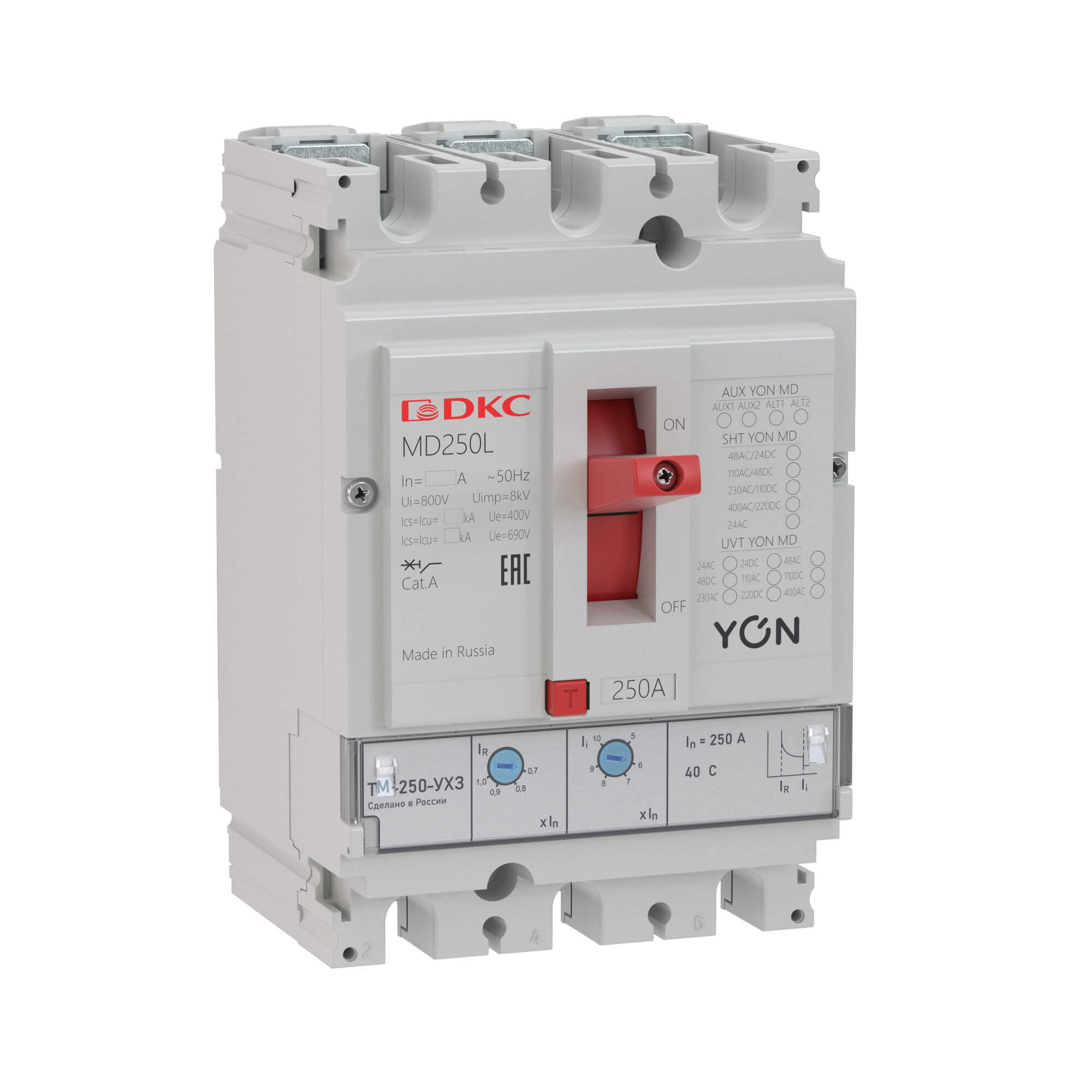

Molded case circuit breaker YON MD250N-TM125

Code: MD250N-TM125

Molded case circuit breaker YON MD250N-TM125

Code: MD250N-TM125
Rated permanent current Iu, A 125
Number of poles 3
Overload release current setting, A 87.5…125
Degree of protection (IP) IP20
Type of electrical connection of main circuit Screw connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA 40
Suitable for DIN rail (top hat rail) mounting No
Motor drive optional Yes
With under voltage release No
Device construction Built-in device fixed built-in technique
Type of control element Rocker lever
DIN rail (top hat rail) mounting optional No
Rated current In 125 A
Q'ty of poles 3
Type release Thermal and electromagnetic
Breaking Capacity Limit Icu 40 kA
Regulation of currents in the overload zone Yes
Regulation of currents in the short-circuit zone No
