No name
Code: 1201.121.22.121B
No name
Code: 1201.121.22.121B
Mounting method | Surface mounted (plaster) |
Material | Aluminium |
Explosion-tested version | Yes |
Impact strength | IK07 |
Cover attachment | Screwed |
Degree of protection (IP) | IP66 |
For Ex-zone gas | 1, 2 |
For Ex-Zone dust | 21, 22 |
Nominal cross-section of terminals | 2,5 mm2 |
Terminal type | Screw |
Quantity | 6 шт. x CBC.2 (gray) |
Type of a cable gland for: | Armored cable |
Series | KA |
Installation side: A | 2 pcs. outer D: 9-17 mm / inner x d: 5,8-12 mm |
Material | Aluminium alloy |

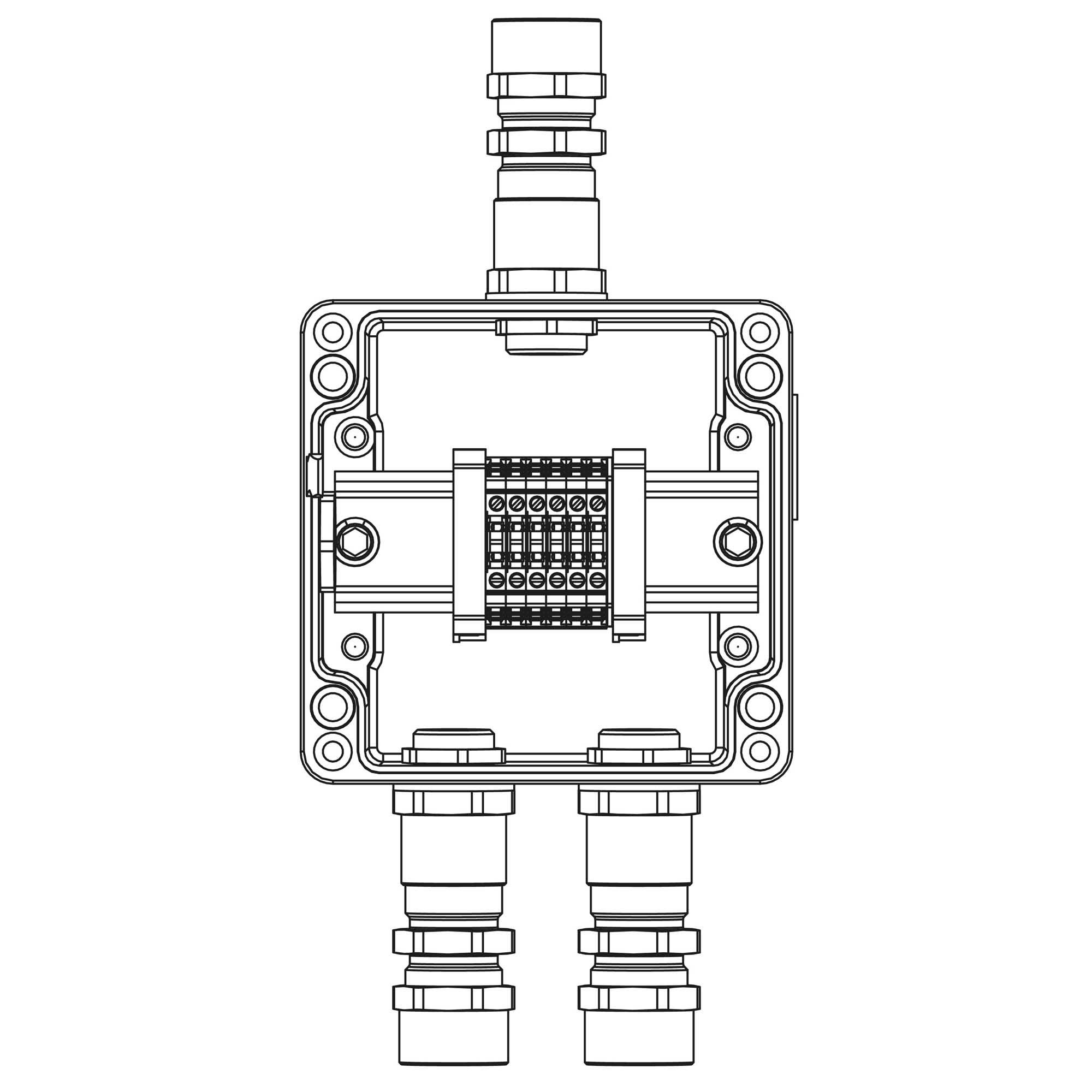

Product type | Explosion-proof box |
Electrical equipment group | IIC hydrogen |
Ex | e;t |
Geometric dimensions | 120x120x90 mm |
Installation side: C | 1 pc. outer D: 9-17 mm / inner x d: 5,8-12 mm |
