Junction box with 10 cable inputs Ø 25 mm, IP55, 150х110х70 mm

Code: 54000

Junction box with 10 cable inputs Ø 25 mm, IP55, 150х110х70 mm

Code: 54000
Colour Grey

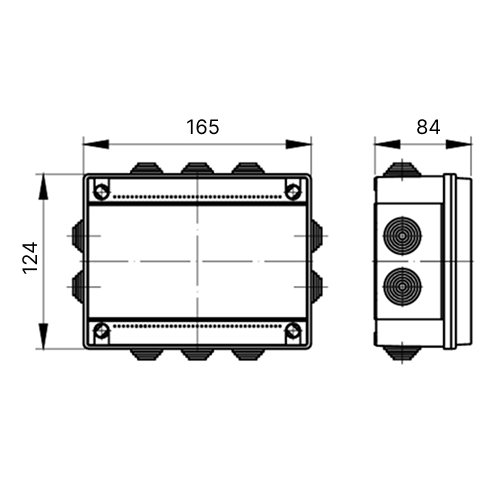

Width, mm 165
Depth, mm 84
Surface protection Untreated
Length, mm 124
Sealable Yes
Circuit integrity None
Material Plastic
Number of inlets 10
Explosion-tested version Yes
Cover attachment Screwed
With screening Yes
Degree of protection (IP) IP55
Inlet from the rear Yes
For Ex-zone gas None
Tackable Yes
For Ex-Zone dust None
Shape Rectangular
For tube diameter 25 mm
Equipped with None
Color gray
Height 124 mm
Width 165 mm
-5°С ... +60°С -5°С …+60°С
72 мм 150 mm
Degree of protection IP55
от -25°С до +60°С -25°С …+60°С
72 мм 110 mm
10 мм 70 mm
Depth 84 mm
Product type Junction box with cable inputs
ТУ 2248-012-47022248-2009 Technical specifications 3464-028-47022248-2011
3 года 3 years
Climate version У2
