Updating the «Cable Support System» plugin for Autodesk Revit

Designing becomes more convenient! We have finalized the "Cable Support System" plugin, compatible with Autodesk Revit versions 2020 and 2021, and added new functions in order to automate design work. You can download the new version of the program by following the link: https://www.dkc.ru/upload/dkc/pub/Prog/Autodesk/Revit/Trays/010321/Plugintrays2.exe

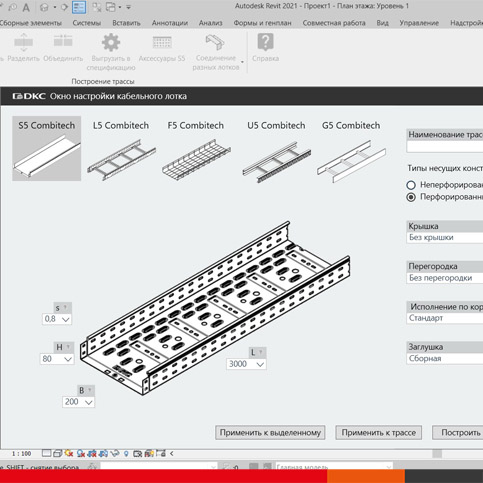

We have improved the plugin interface and added new features. The new version of the plugin complies with the BIM 2.0 standard, supports three additional languages: English, Portuguese and Italian, and does not require special loading of families into the user's project.

What can the "Cable Support System" plugin do?

1. Build a route of cable trays with accessories in a BIM environment;

2. Automatically position the rotary accessories;

3. Automatically select the metal fixing and connecting elements;

4. Form specifications for cable trays and components.

Installing and using the "Cable Support System" plugin does not require special skills – the installation is automatic, and the program interface is intuitive.

If you have any questions or suggestions for improving the software, plugins, databases of the DKC company, you can write us by e-mail: ramcube@dkc.ru.

In the "Drawings and BIM models" site section https://www.dkc.ru/en/support/drawings/ you can additionally select the remaining necessary drawings and three-dimensional models for DKC products from a large database.
