Mesh tray 30х200 L3000
Code:
FC3020
Mesh tray 30х200 L3000
Code:
FC3020
Width, mm | 200 |
Model | Without connector |
Height, mm | 30 |
Surface protection | Galvanic/electrolytic zinc plated |
Material quality | Other |
Length, mm | 3000 |
Material | Steel |
Wire diameter, mm | 4 |
Integrated partition | None |
Useful cross section, mm² | 6000 |
Profile shape | U-shape |
Stainless steel, pickled | No |
Wide span model | No |
Screwless connector | No |
Product type | Wire mesh cable tray |
Type | Metal wire mesh trays - "F5 Combitech" |
Height | 30 mm |
Length | 3000 mm |
Material | Electrogalvanised |
Width | 200 mm |
Accessories
Analogs

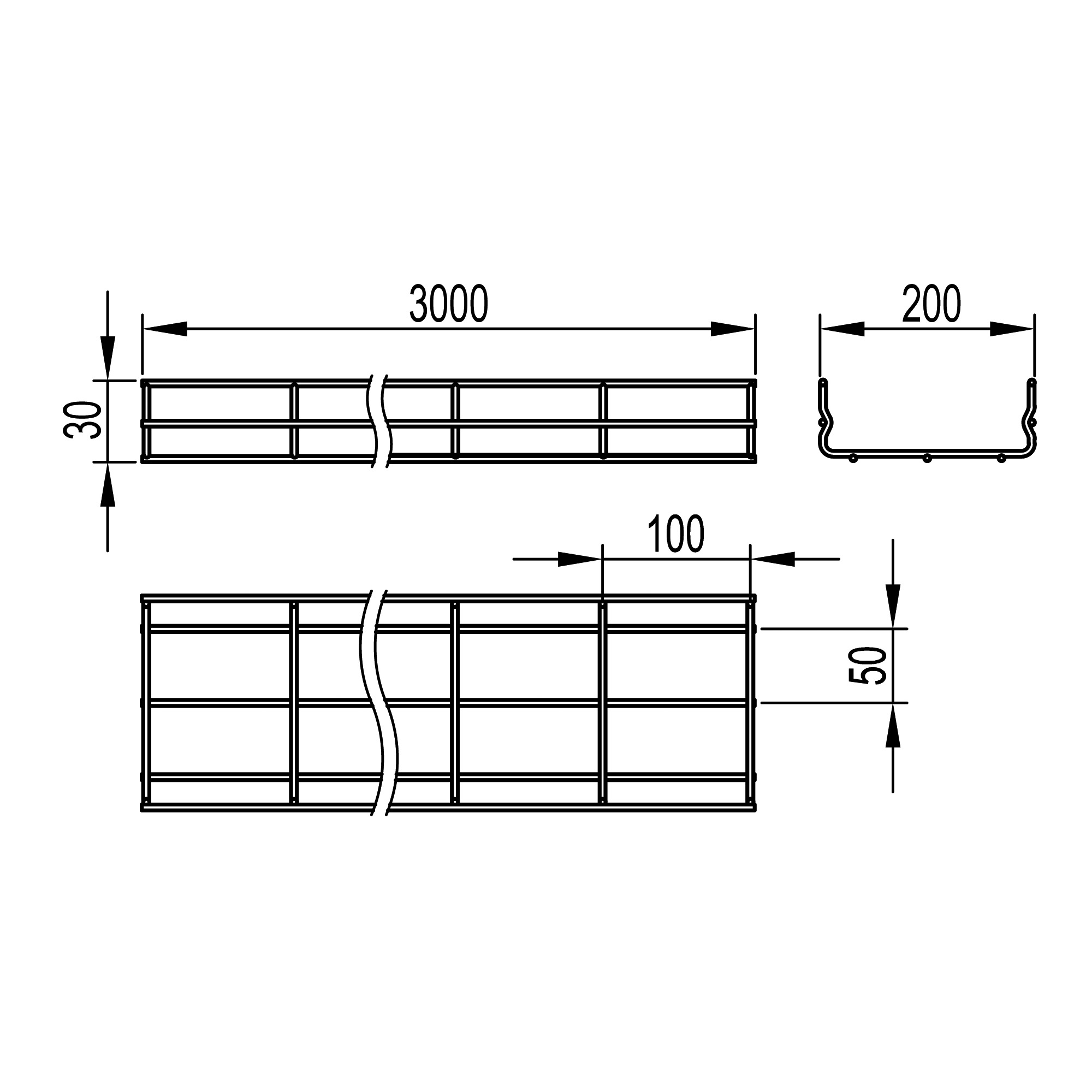

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
---|---|---|---|---|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
