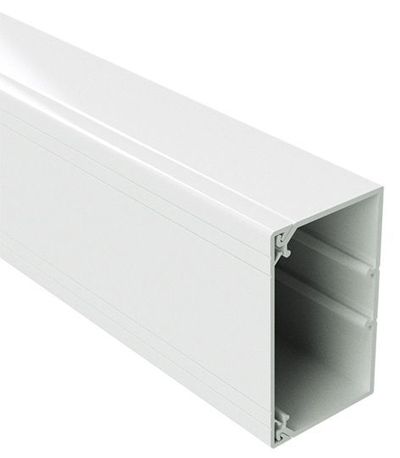

TA-GN 120x40 Cable trunking with cover, white
Code: 01783
TA-GN 120x40 Cable trunking with cover, white
Code: 01783
| Colour | Pure white |
| Width, mm | 120 |
| Depth, mm | 40 |
| Material quality | Polyvinyl chloride (PVC) |
| Length, mm | 2000 |
| Material | Plastic |
| Mounting method cover | Inner lying |
| Number of covers | 1 |
| Number of plug-in partitions | 4 |
| Mounting perforation in bottom | Yes |
| With cable fixing clip | Yes |
| With duct connector | Yes |
| Useful cross section, mm² | 3840 |
| Cover width 1, mm | 120 |
| With protection film | Yes |
| Symmetric | Yes |
| Construction type rectangular | Yes |
| Covers supplied with the product | Yes |
| Material | PVC |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 120 |
| Ingress Protection rating, IP | IP40 |
| Average filled area, sq.mm | 3840 |
| Summarized profile area (max), sq.mm | 3840 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Shock resistance, J | 6 |
| Climate version | UHL4 |
| Q'ty of bays | 1 |
| Voltage of disruption, V | More 2500 |
| Height (nominal), mm | 40 |
| Self-glueing base | false |
| Product type | Cable duct with a cover |
