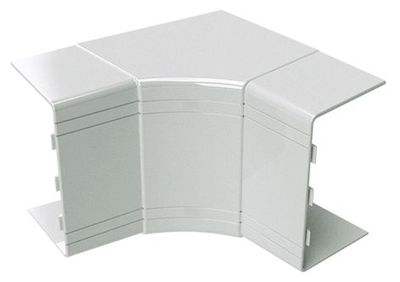

NIAV 120x60 Internal angle (70-120°)

Code: 01730
  • To ask a question
Colour Pure white
Width, mm 120
Model Moulded hood
Halogen free Да
Depth, mm 60
Surface protection Other
Material quality Other
Material Plastic
Mounting method cover Inner lying
Mounting perforation in bottom Да
With cable fixing clip Нет
With duct connector Нет
With protection film Нет
Angle, ° 70...120
Shape Symmetric
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 120
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 60
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Internal changeable angle
