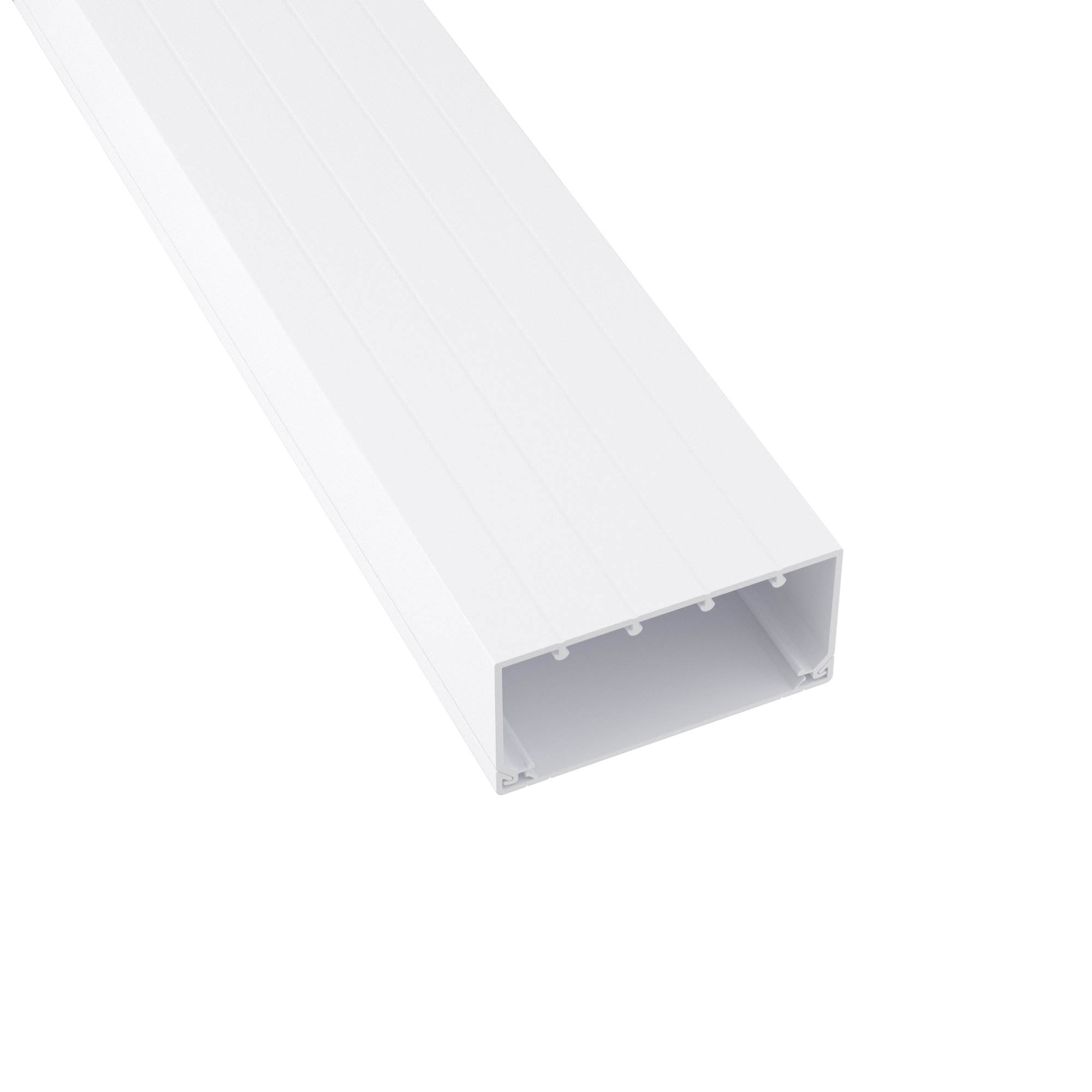

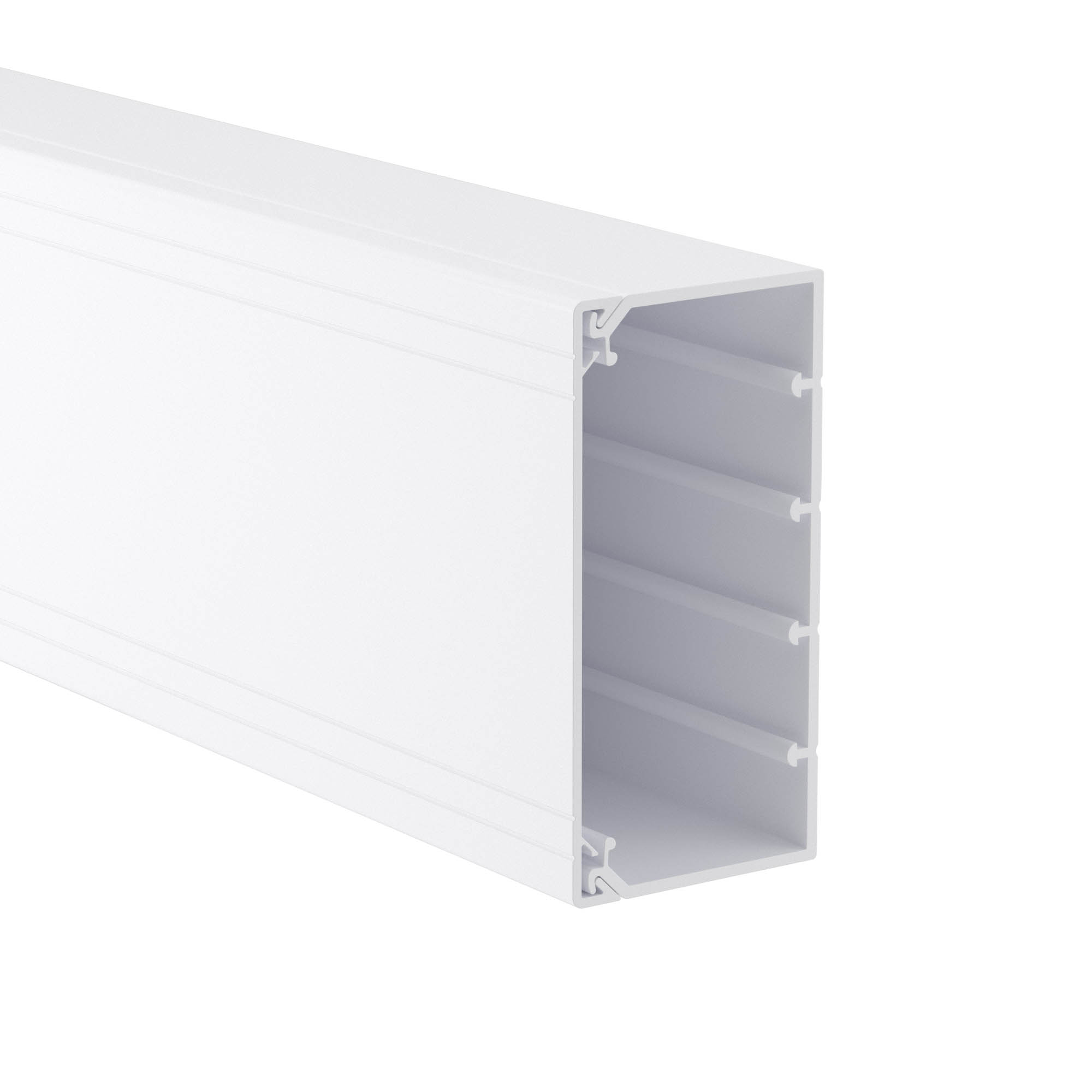

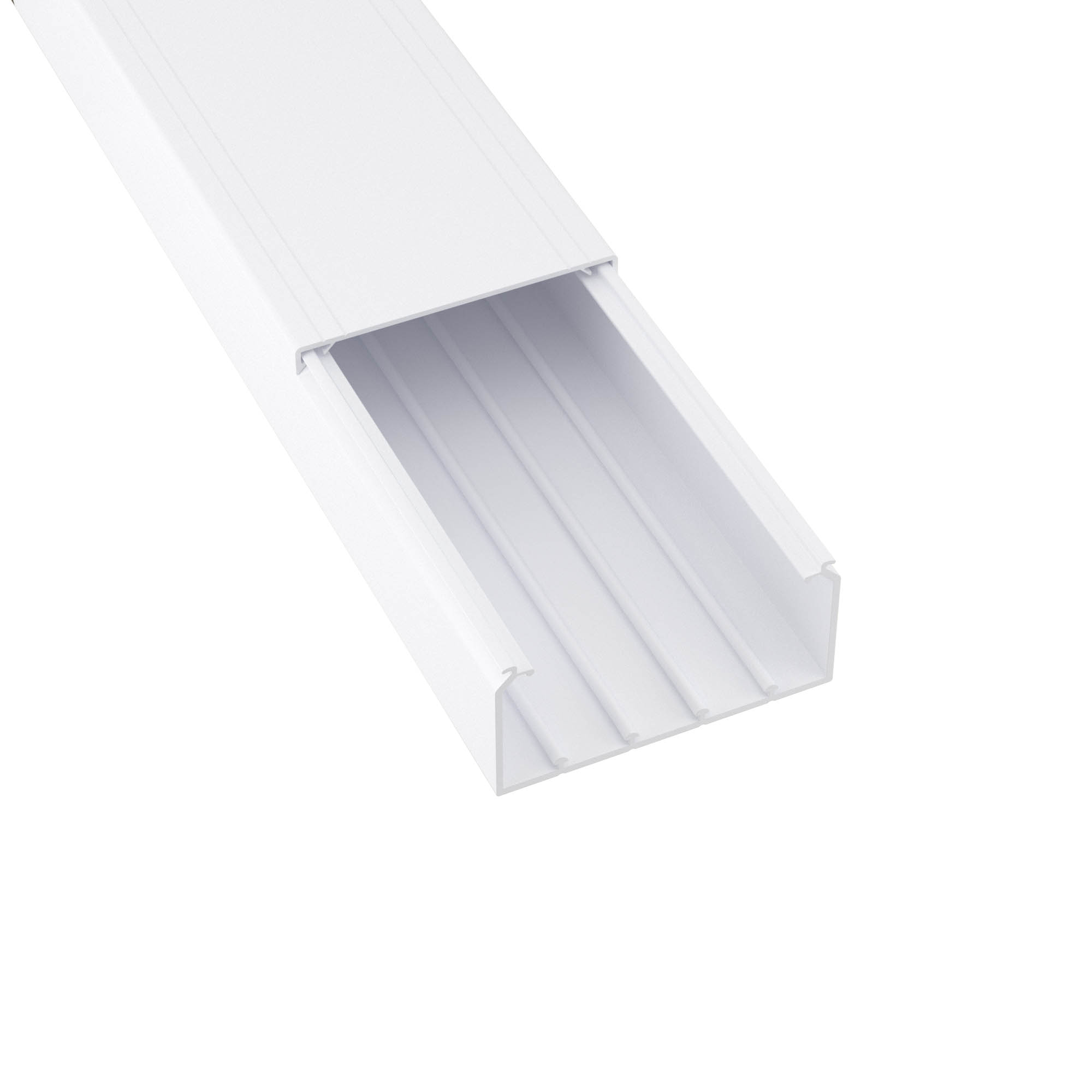

TA-GN 120x60 Cable trunking with cover, white
Code:
01787
TA-GN 120x60 Cable trunking with cover, white
Code:
01787
Colour | Pure white |

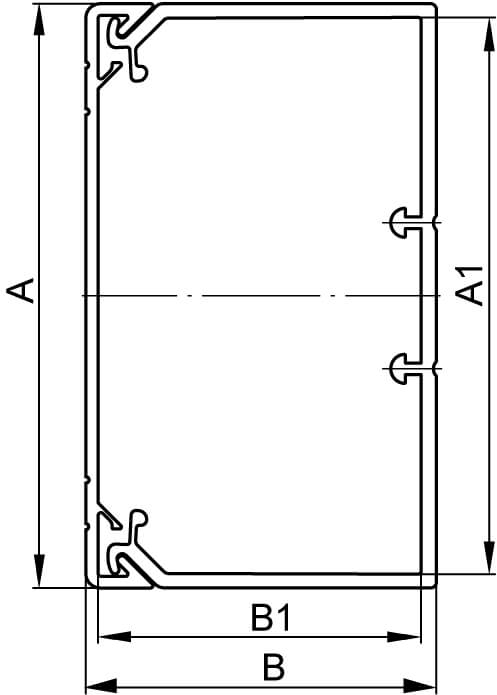

Width, mm | 120 |
Depth, mm | 60 |
Material quality | Polyvinyl chloride (PVC) |
Length, mm | 2000 |
Material | Plastic |
Mounting method cover | Inner lying |
Number of covers | 1 |
Number of plug-in partitions | 4 |
Mounting perforation in bottom | Yes |
With cable fixing clip | Yes |
With duct connector | Yes |
Useful cross section, mm² | 6019 |
Cover width 1, mm | 120 |
With protection film | Yes |
Symmetric | Yes |
Construction type rectangular | Yes |
Covers supplied with the product | Yes |
Material | PVC |
Temperature of mounting, °C | 5°С ... +60°С |
Width (nominal), mm | 120 |
Ingress Protection rating, IP | IP40 |
Average filled area, sq.mm | 6139 |
Summarized profile area (max), sq.mm | 6139 |
Temperature of operation, °C | 5°С ... +60°С |
Temperature of operation, °C | +60°C |
Shock resistance, J | 6 |
Climate version | UHL4 |
Q'ty of bays | 1 |
Voltage of disruption, V | More 2500 |
Height (nominal), mm | 60 |
Self-glueing base | false |
Product type | Cable duct with a cover |
