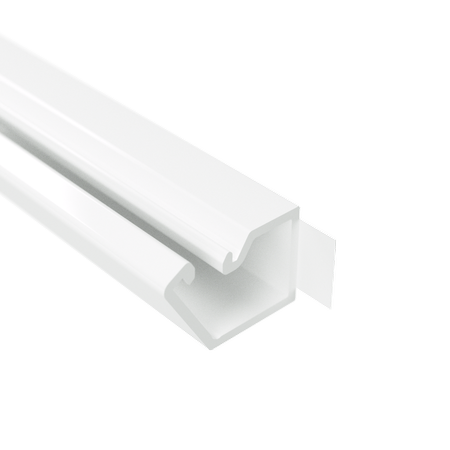

TMR 15х12 Cable trunking with cover, self-adhesive, white

Code: 00302
  • To ask a question
Colour Pure white

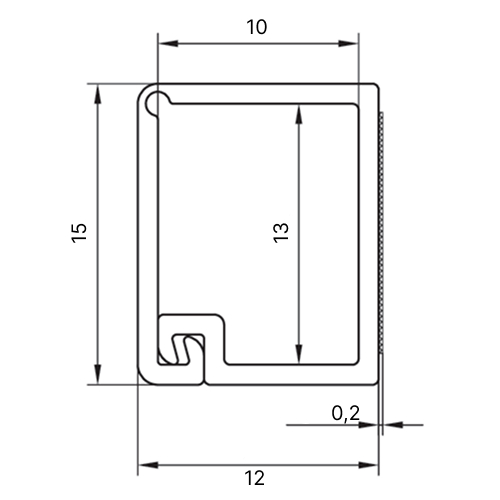

Width, mm 15
Height, mm 12
RAL-number 9016
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Type of fastening Self-adhesive
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 123
With protection film Yes
Delivery on roll Yes
Transparent Yes
Suitable for circuit integrity Yes
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 15
Ingress Protection rating, IP IP40
Average filled area, 123
Summarized profile area (max), 123
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 0.5
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 12
Product type Miniduct
