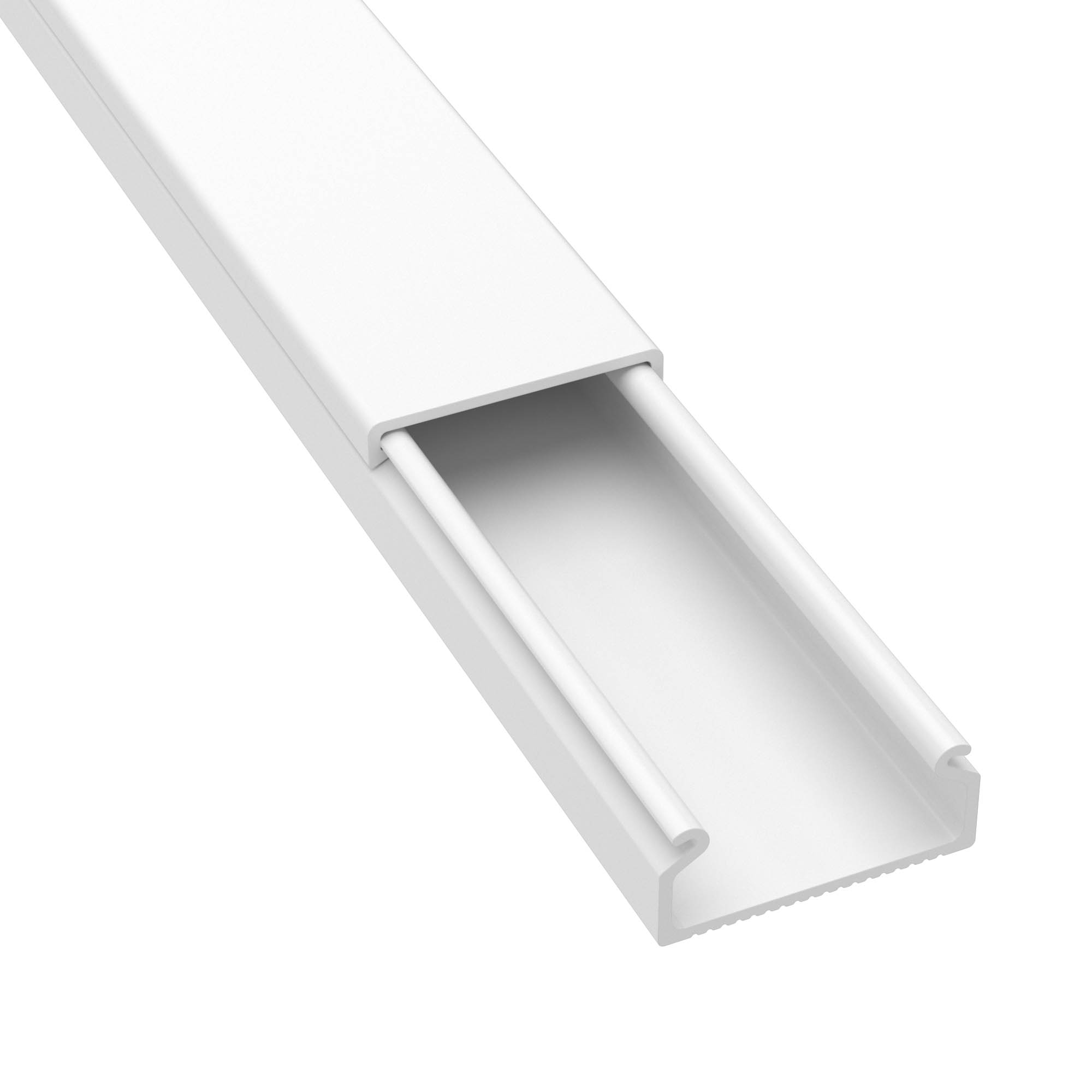

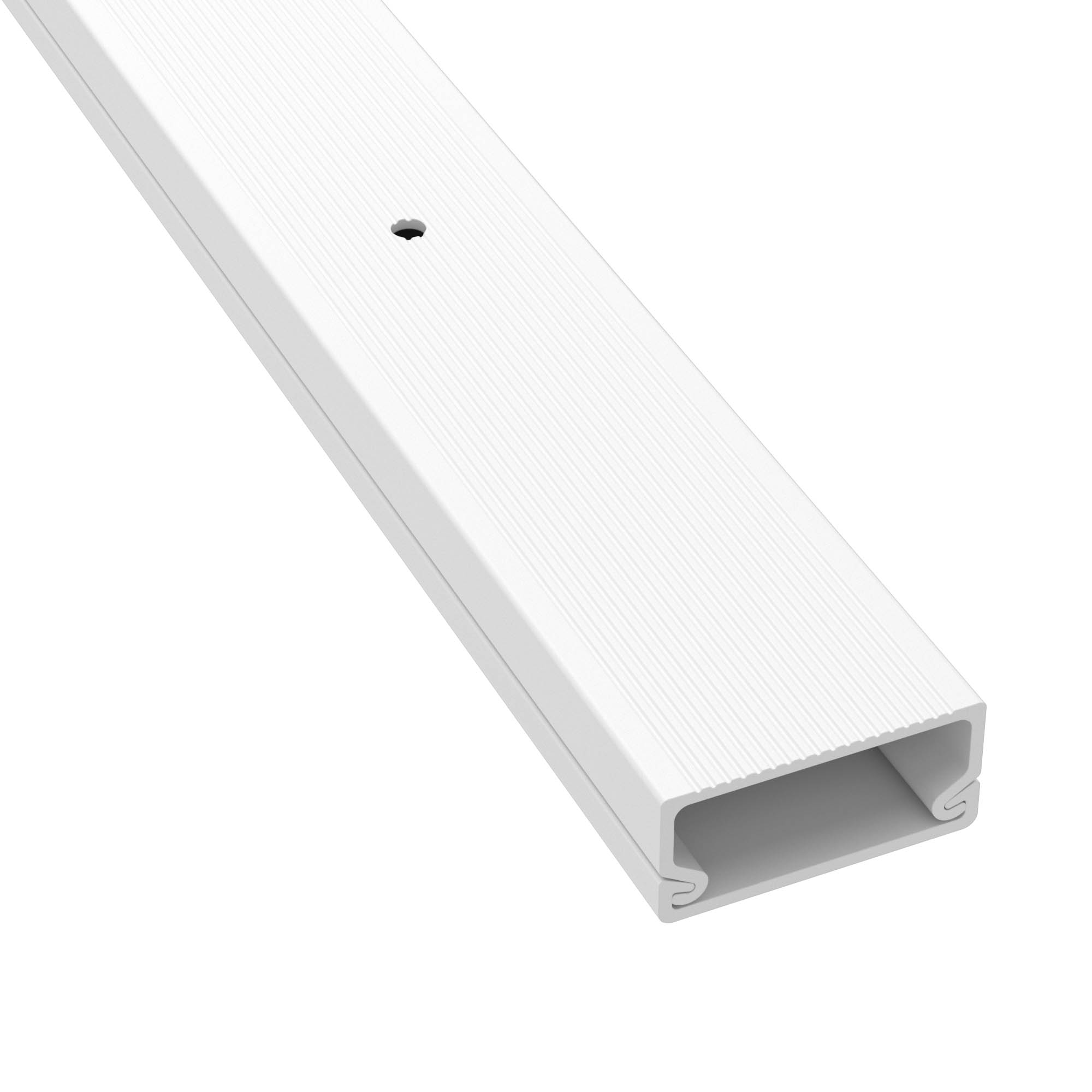

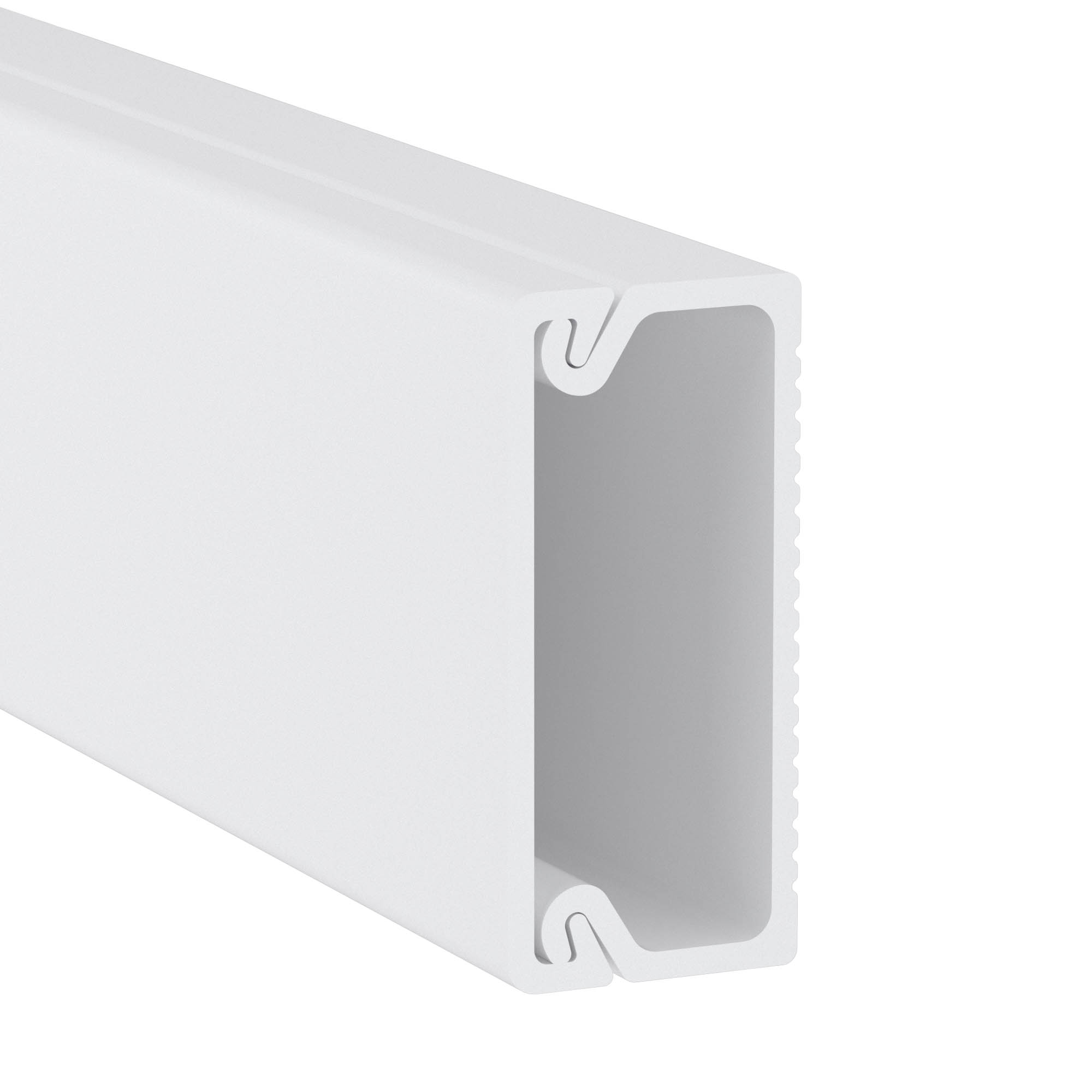

TMC 22x10 Cable trunking with cover, white
Code:
00317
TMC 22x10 Cable trunking with cover, white
Code:
00317
| Colour | Pure white |

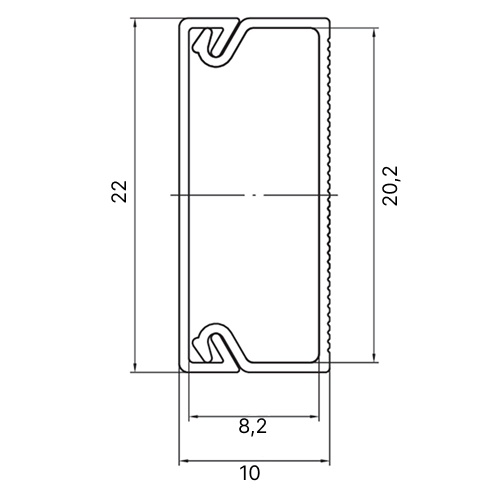

| Width, mm | 22 |
| Height, mm | 10 |
| RAL-number | 9016 |
| Material quality | Polyvinyl chloride (PVC) |
| Length, mm | 2000 |
| Material | Plastic |
| Type of fastening | Snapper mounting |
| With cable fixing clip | Yes |
| With duct connector | Yes |
| Useful cross section, mm² | 151 |
| With protection film | Yes |
| Delivery on roll | Yes |
| Transparent | Yes |
| Suitable for circuit integrity | Yes |
| Material | PVC |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 22 |
| Ingress Protection rating, IP | IP40 |
| Average filled area, sq.mm | 151 |
| Summarized profile area (max), sq.mm | 151 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Shock resistance, J | 2 |
| Climate version | UHL4 |
| Q'ty of bays | 1 |
| Voltage of disruption, V | More 2500 |
| Height (nominal), mm | 10 |
| Product type | Miniduct |
