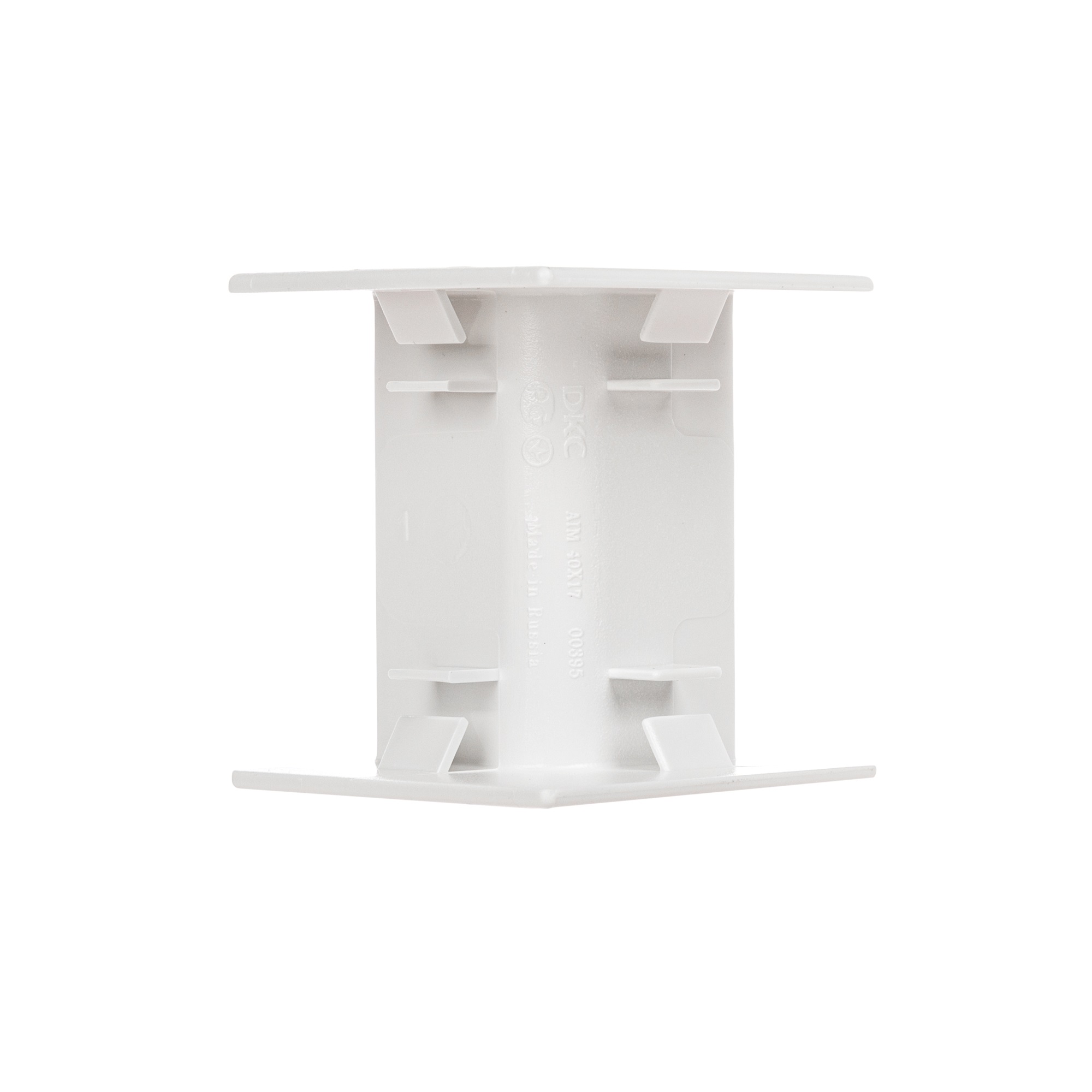

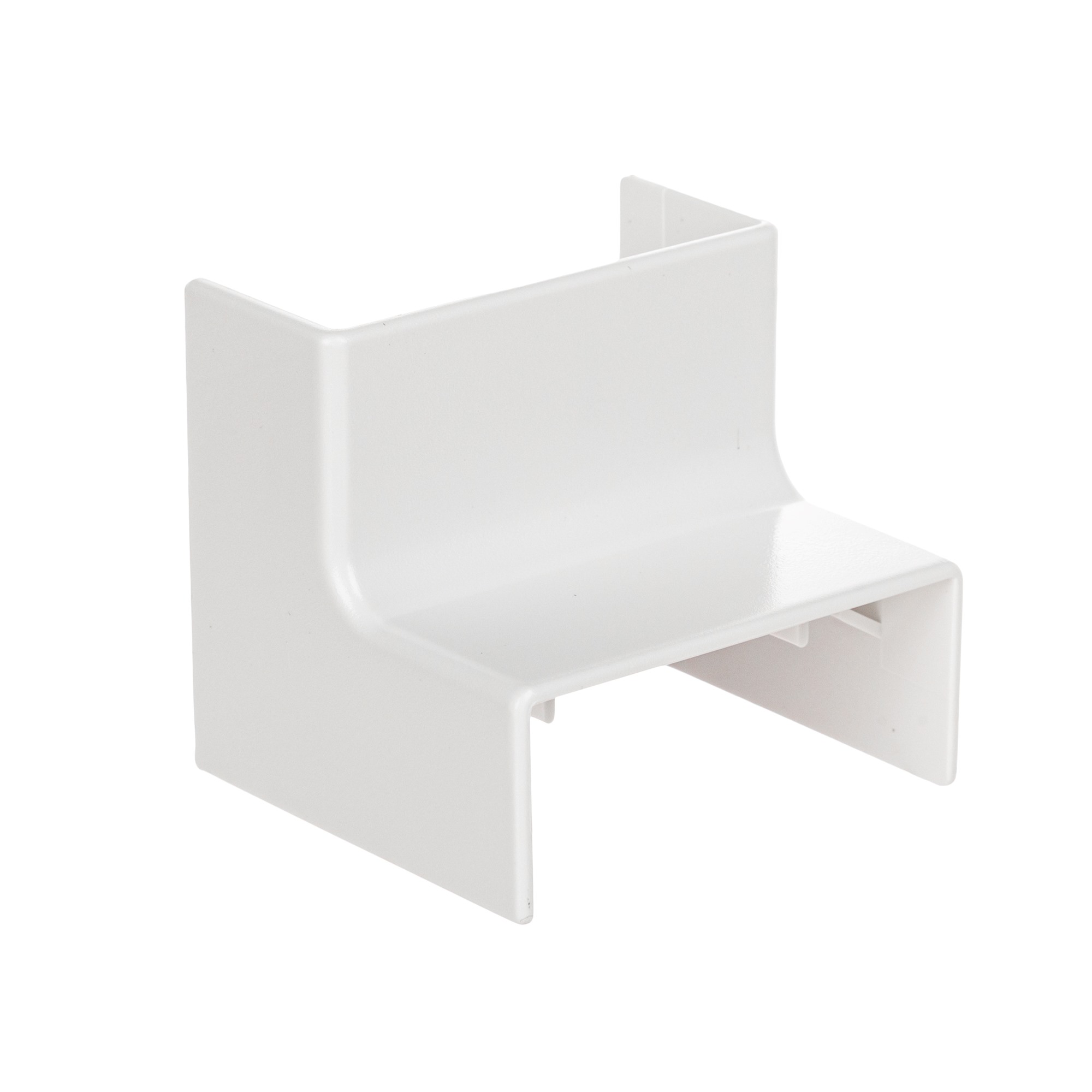

AIM 22x10 Internal angle, white (retail)
Code: 00386R
AIM 22x10 Internal angle, white (retail)
Code: 00386R
| Colour | Pure white |

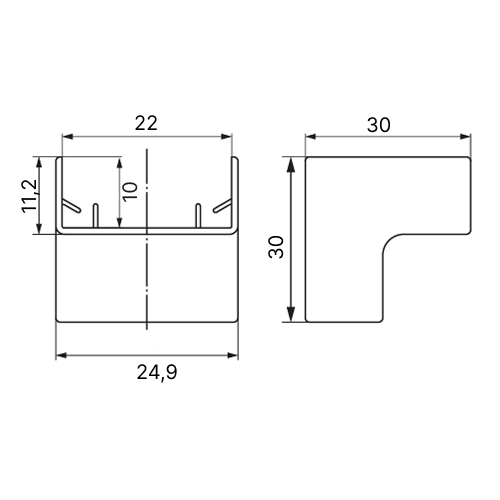

| Width, mm | 22 |
| Model | Base unit and cover |
| Halogen free | Yes |
| Depth, mm | 10 |
| Material | Plastic |
| Mounting method cover | Inner lying |
| Angle, ° | 90...90 |
| Shape | Symmetric |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 22 |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Q'ty of bays | 1 |
| Height (nominal), mm | 10 |
| Q'ty of holes | 2 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Product type | Internal angle |
