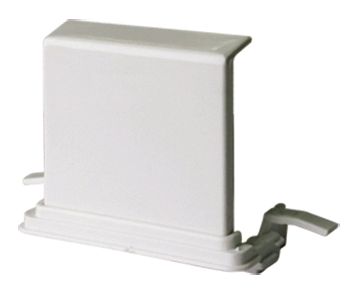

Adapter for duct 40x17, 50x20 mm, white
Code:
10046
Adapter for duct 40x17, 50x20 mm, white
Code:
10046

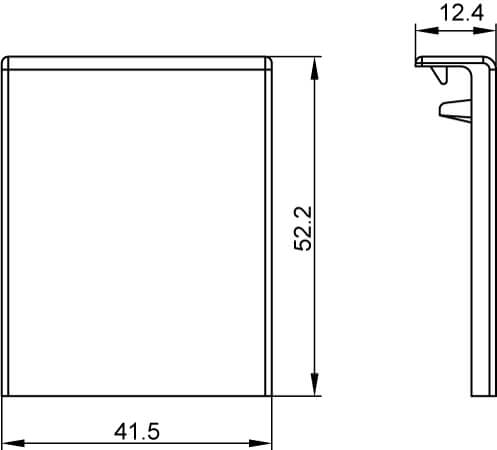

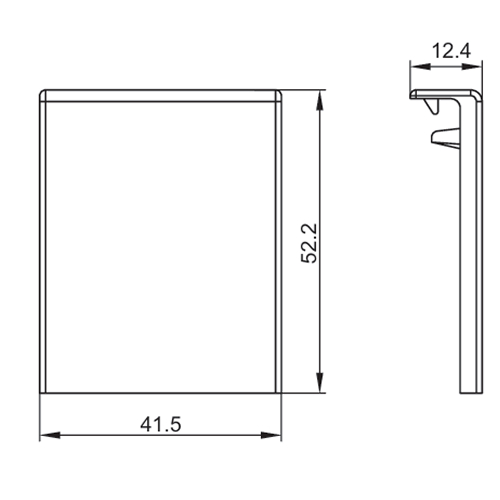

| Width, mm | 41.5 |
| Height, mm | 52.2 |
| Depth, mm | 12.4 |
| Type of accessory/spare part | Formwork adapter |
| Color | white, RAL 9016 |
| Material | ABC-plastic |
| Height, mm | 27 |
| Width, mm | 48 |
| Length, mm | 68 |
| Temperature of mounting, °C | 5°С ... +60°С |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Product type | Adapter |
