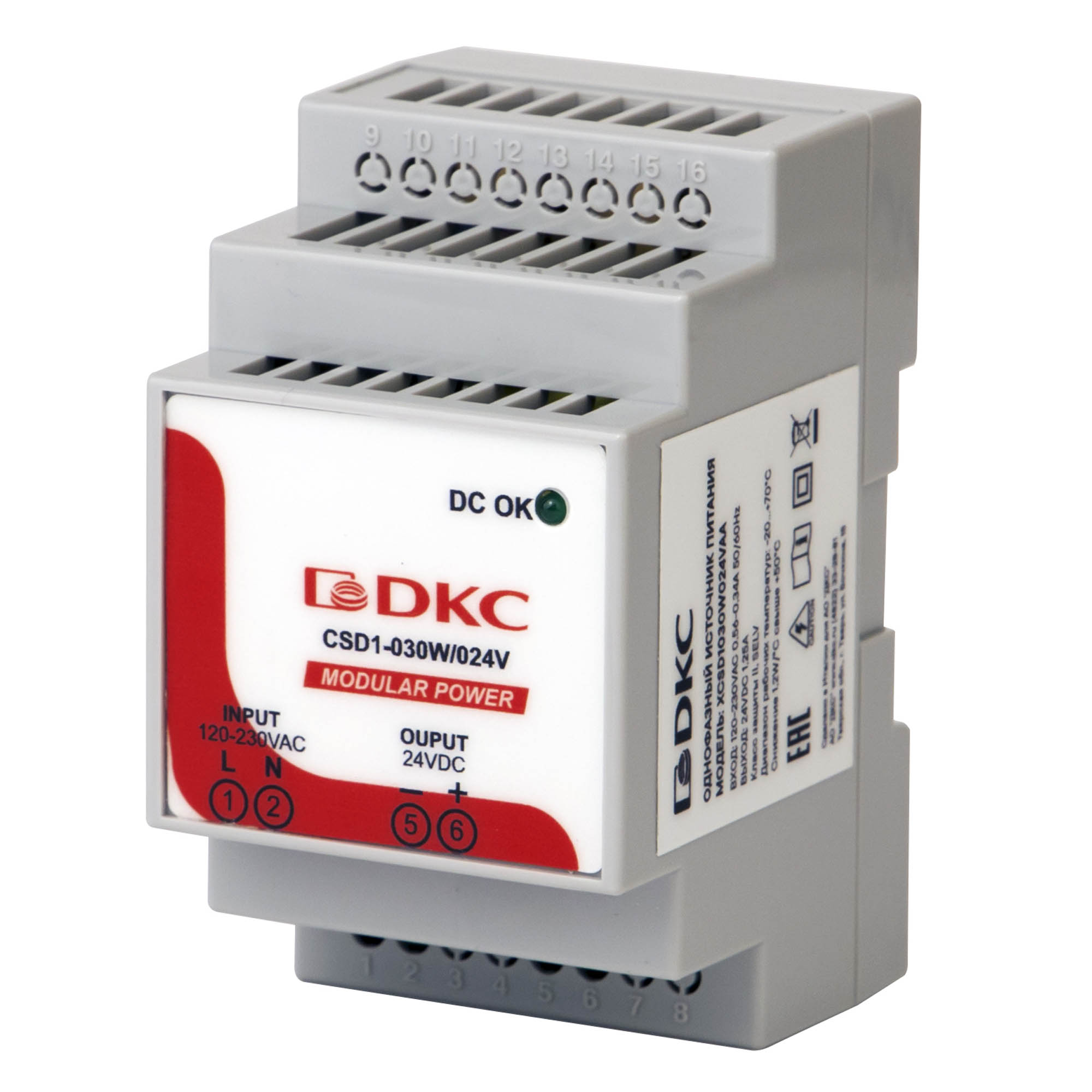

Switch mode power supply "MODULAR POWER", single phase, 30W, 1.25A, 24V
Code: XCSD1030W024VAA
Switch mode power supply "MODULAR POWER", single phase, 30W, 1.25A, 24V
Code: XCSD1030W024VAA
| Width, mm | 53 |
| Height, mm | 90 |
| Depth, mm | 62 |
| Modular version | Yes |
| Width in number of modular spacings | 3 |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 30 |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| Secondary voltage adjustable | No |
| Rated supply voltage at AC 50 Hz, V | 120...230 |
| Rated supply voltage at AC 60 Hz, V | 120...230 |
| Rated supply voltage at DC, V | 100...370 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 1.25 |
| Max. output current 2, A | 2 |
| Type of electric connection | Screw connection |
| Nominal value output voltage 1, V | 24 |
| Nominal value output current 1, A | 1.25 |
| Power consumption, VA | 130 |
| Number of phases | Single phase |
