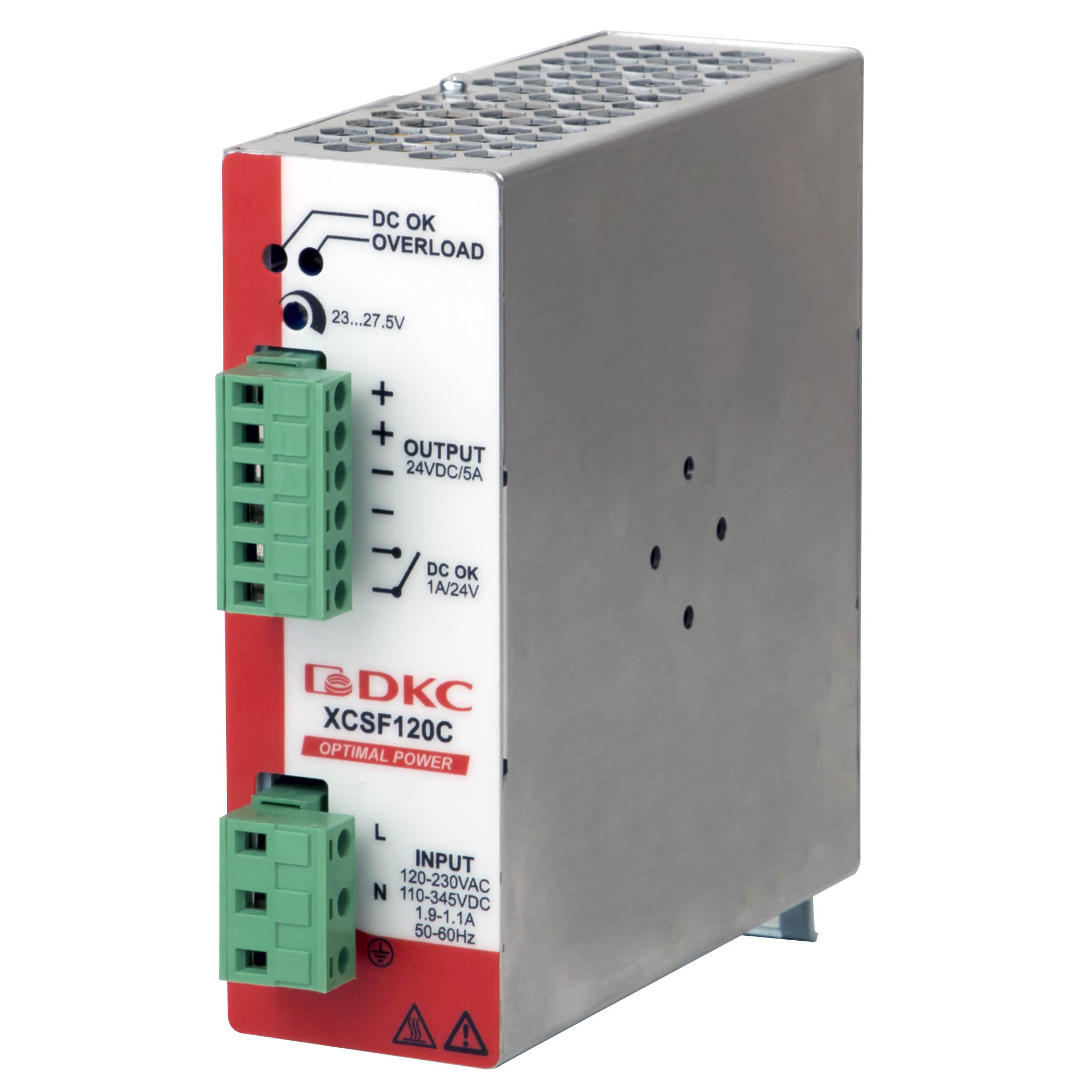

Switch mode power supply "OPTIMAL POWER", single phase, 120W, 5A, 24V with ORing diode

Mounting method	DRA (DIN-rail adapter)
Width, mm	40
Height, mm	115
Depth, mm	130
Number of lines to feed	2
Modular version	No
Max. output current	15
Voltage type of supply voltage	AC/DC
Power output, W	120
Output voltage stabilized	24
Rail mounting possible	Yes
Degree of protection (IP)	IP20
With LED indication	Yes
1st secondary output voltage, V	23…27.5

Secondary voltage adjustable	Yes
Rated supply voltage at AC 50 Hz, V	120...230
Rated supply voltage at AC 60 Hz, V	120...230
Rated supply voltage at DC, V	100...345
Short-circuit-proof	Yes
Max. output current 1, A	5
Max. output current 2, A	8
Max. output current 3, A	15
Type of electric connection	Spring clamp connection
Max. electricity consumption	1.9
Operating temperature	-20...+60
Nominal value output voltage 1, V	24
Nominal value output current 1, A	5
