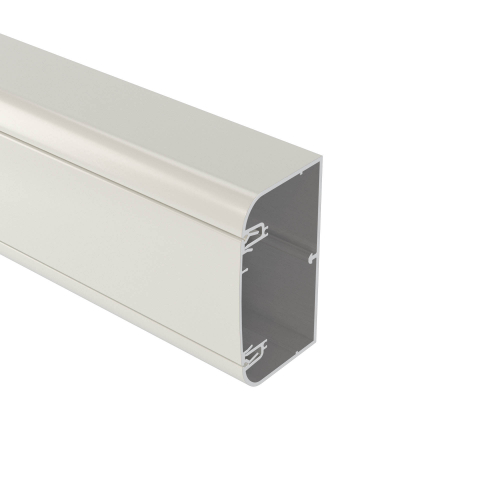

Cable trunking 110x50 mm with cover, aluminum, white

Code: 11199

Cable trunking 110x50 mm with cover, aluminum, white

Code: 11199
Colour Pure white
Width, mm 110
Halogen free Yes
Depth, mm 50
Length, mm 2000
Material Aluminium
Mounting method cover Inner lying
Number of covers 1
Number of plug-in partitions 3
Mounting perforation in bottom Yes
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 4427
Cover width 1, mm 110
With protection film Yes
Symmetric Yes
Construction type rectangular Yes
Covers supplied with the product Yes
Color white, RAL 9016
Material Aluminium
Width (nominal), mm 110
Ingress Protection rating, IP IP40
Average filled area, sq.mm 4427
Summarized profile area (max), sq.mm 4427
Temperature of operation, °C +60°C
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 50
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Self-glueing base false
Product type Cable duct
Type of groupe Aluminum cable channel
