Aluminum alloy painted junction box with silicone seal , IP66/67, RAL9006, 294х244х114mm, t = -60

Code: 653S05
  • To ask a question
Mounting method Universal
Colour Grey
Width, mm 244
Depth, mm 114
Length, mm 294
Material Aluminium
Cover attachment Screwed
Degree of protection (IP) IP67
Shape Rectangular
Type of housing feed-through None
Surface protection Untreated
Product type Junction box with silicone seal
Material Aluminum Alloy UNI 5076
Color gray

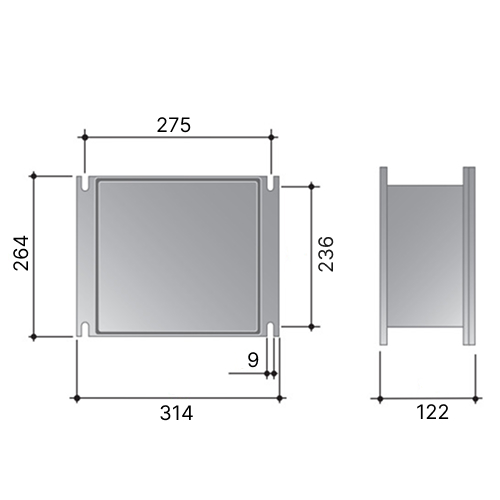

Height, mm 264
Width, mm 314
Depth, mm 122
Temperature of mounting, °C -60 ... +70 °С
Temperature of operation, °C -60 ... +70 °С
Width (nominal), mm 294
Height (nominal), mm 244
Depth (nominal), mm 114
Ingress Protection rating, IP IP66/IP67
