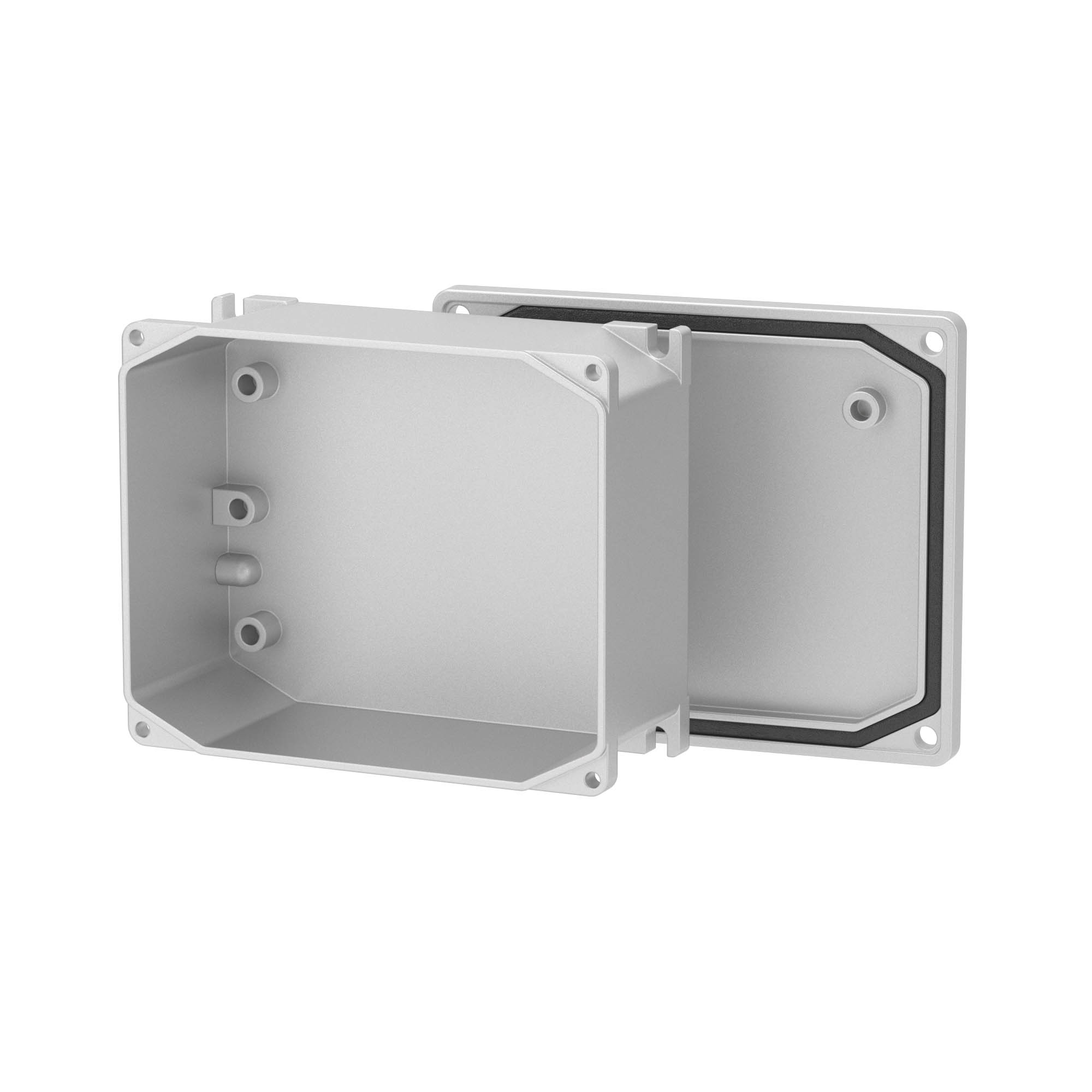

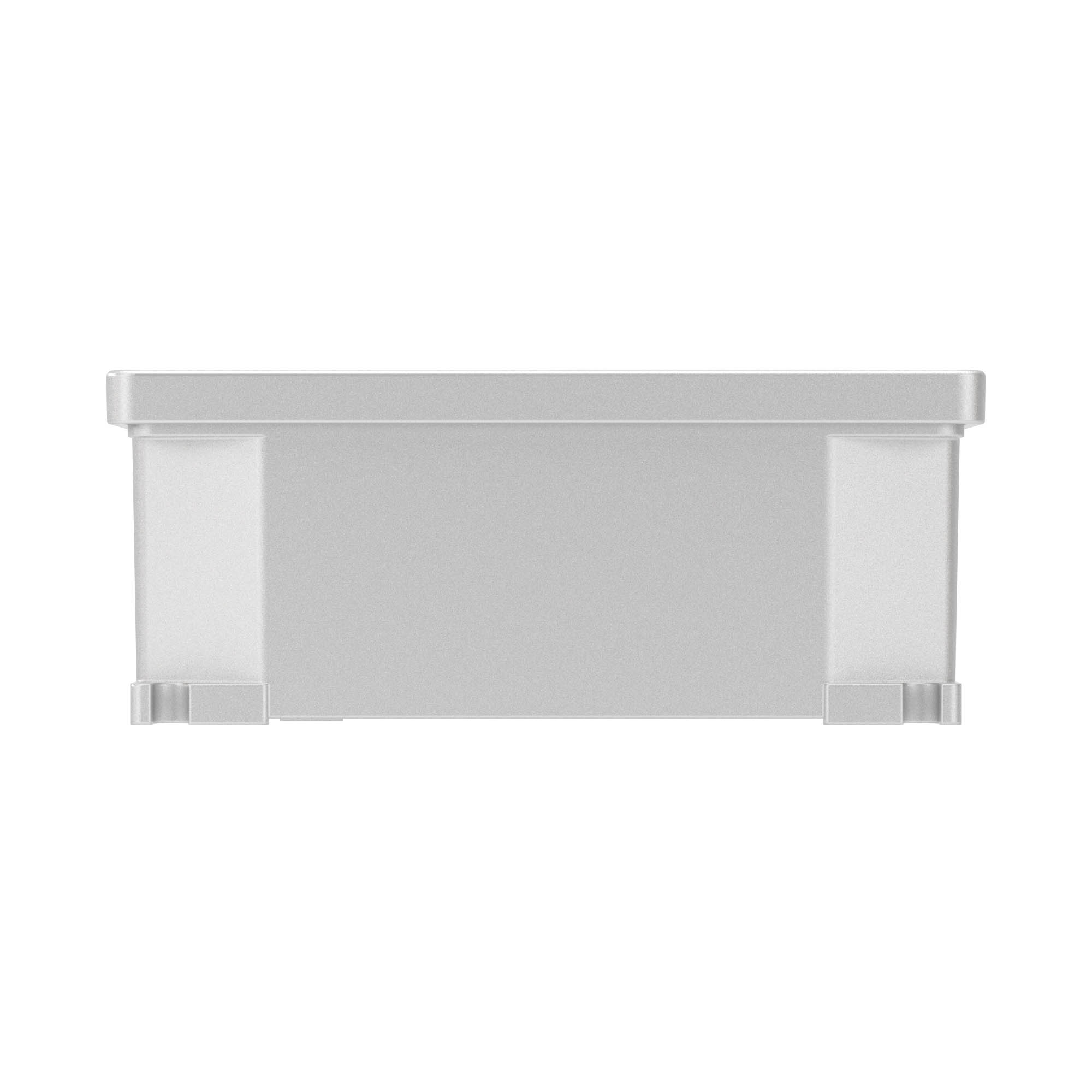

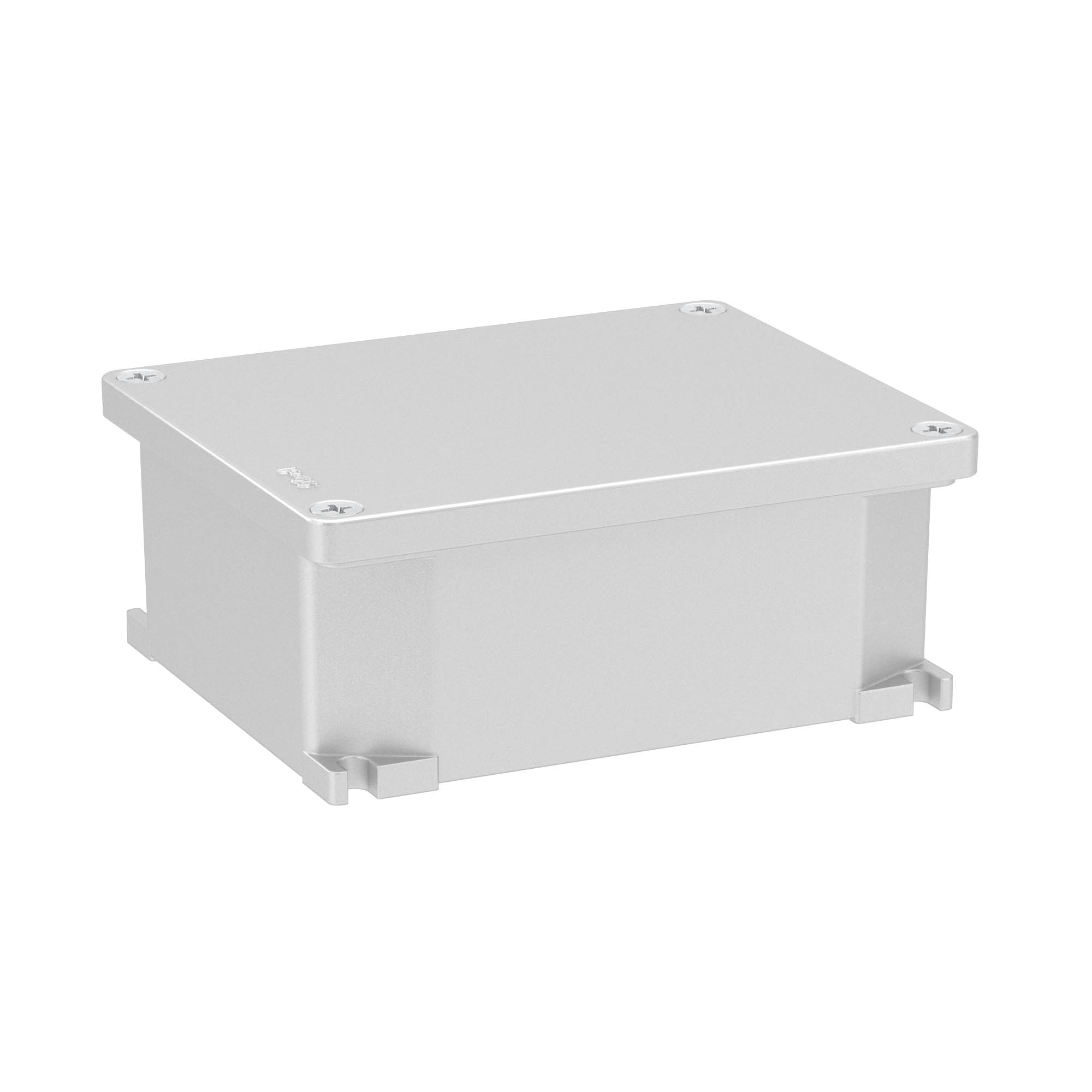

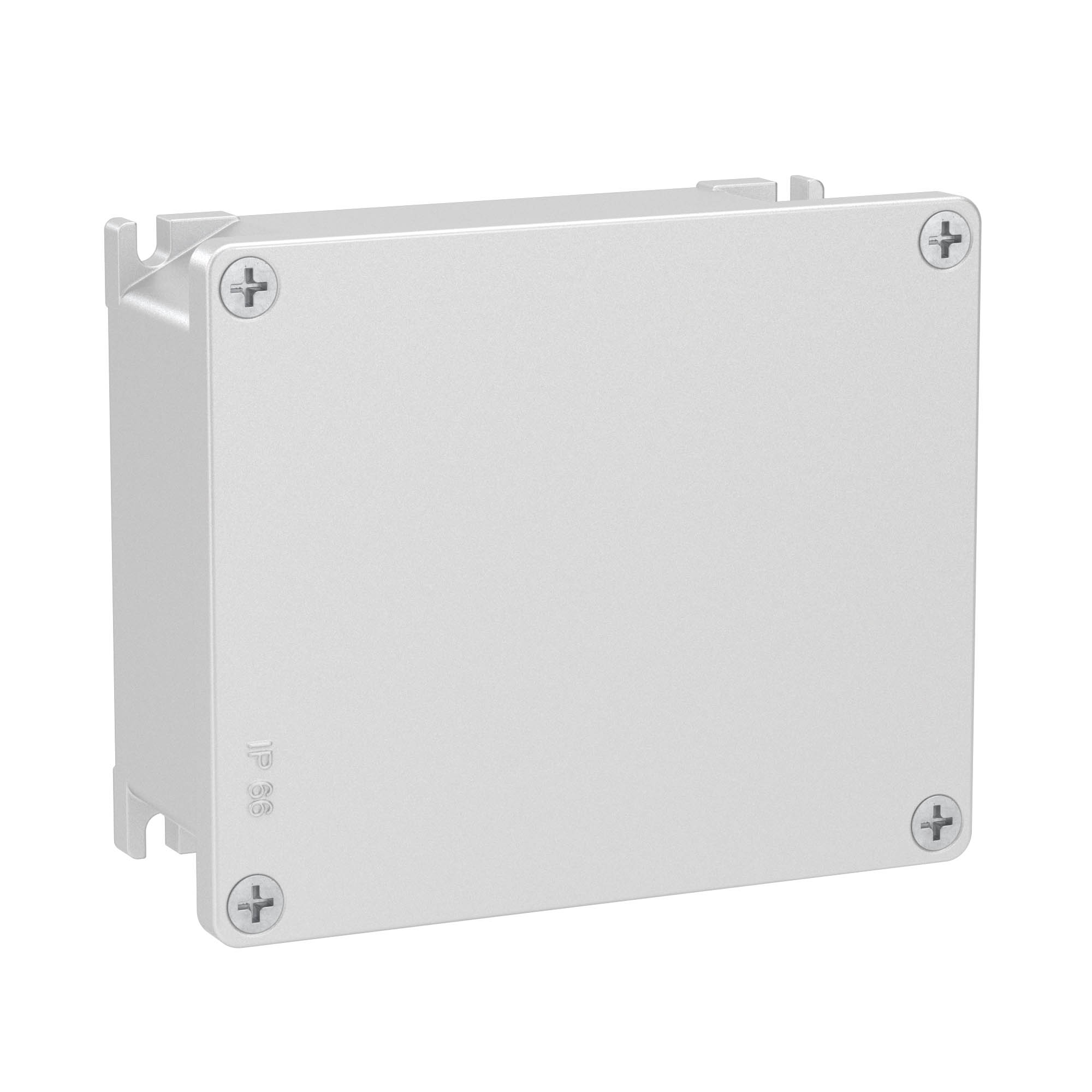

Alluminium alloy painted juncion box, IP66, 128x103x55 mm
Code: 65301
Alluminium alloy painted juncion box, IP66, 128x103x55 mm
Code: 65301
Mounting method | Universal |
Colour | Grey |
Width, mm | 103 |
Depth, mm | 55 |
Length, mm | 128 |
Sealable | Yes |
Material | Aluminium |
Cover attachment | Screwed |
Weatherproof | Yes |
Degree of protection (IP) | IP66 |
Shape | Rectangular |
Equipped with | None |
Surface protection | Untreated |
Color | gray |
Product type | Junction boxes |
Material | PVC |
Height, mm | 140 |
Width, mm | 115 |
Temperature of mounting, °C | -25 ... +90 °С |
Width (nominal), mm | 103 |
Ingress Protection rating, IP | IP66/IP67 |
Temperature of operation, °C | from -25 to +90 °С |
Height (nominal), mm | 128 |
Depth (nominal), mm | 55 |
Depth, mm | 60 |

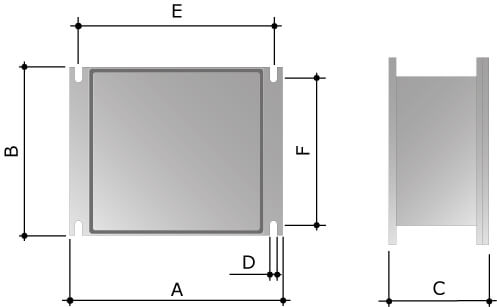

Drawings
Seria | Name | STEP |
---|---|---|
