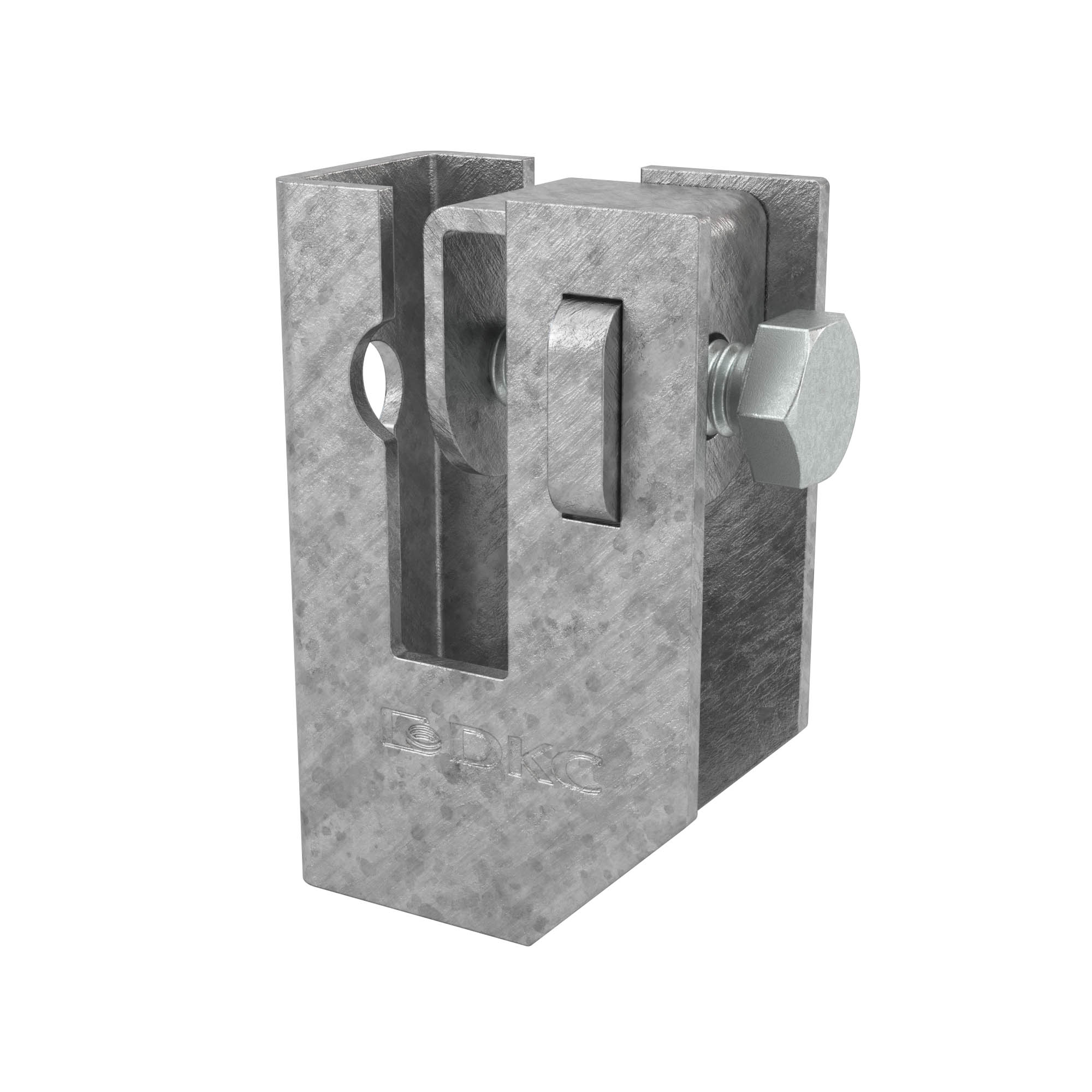

Strip holder with tightening screw

Code: ND2312
Code: ND2312
  • To ask a question
Thread size (metric) 8
Mounting type conductor With screw clamp
Mounting type holder Bore hole with M thread
Suitable for diameter round conductor, mm 8...10
Material of holder Thermo galvanized steel
Material of carrier Thermo galvanized steel
Suitable for width flat conductor, mm 25...60
Material base part Thermo galvanized steel
Product type Holders
Material hot dip galvanized steel
Fixed conductor Wire, 8-10 mm/ strip, 25-50 mm
Application area façade
Mounting type conductor screw clamp
