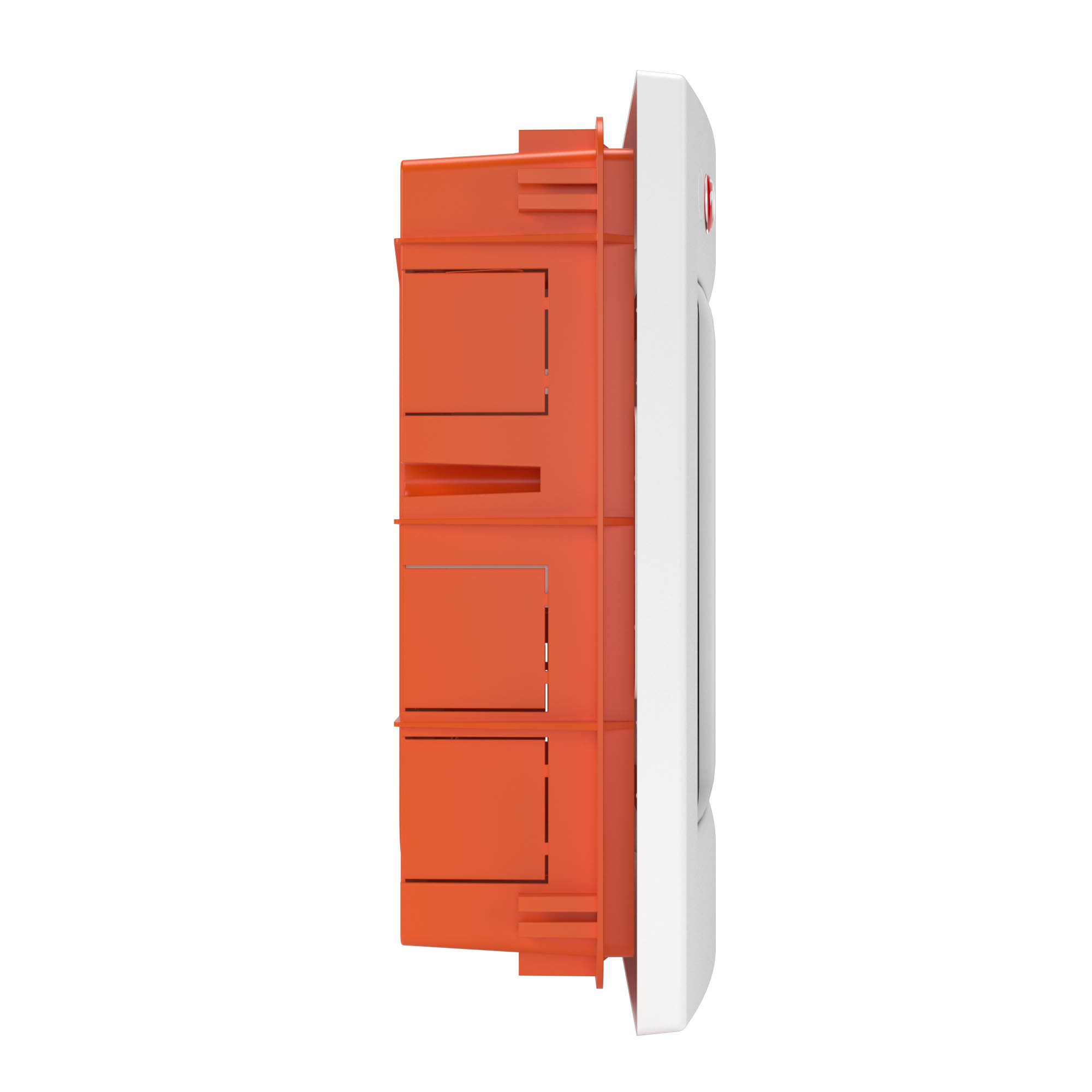

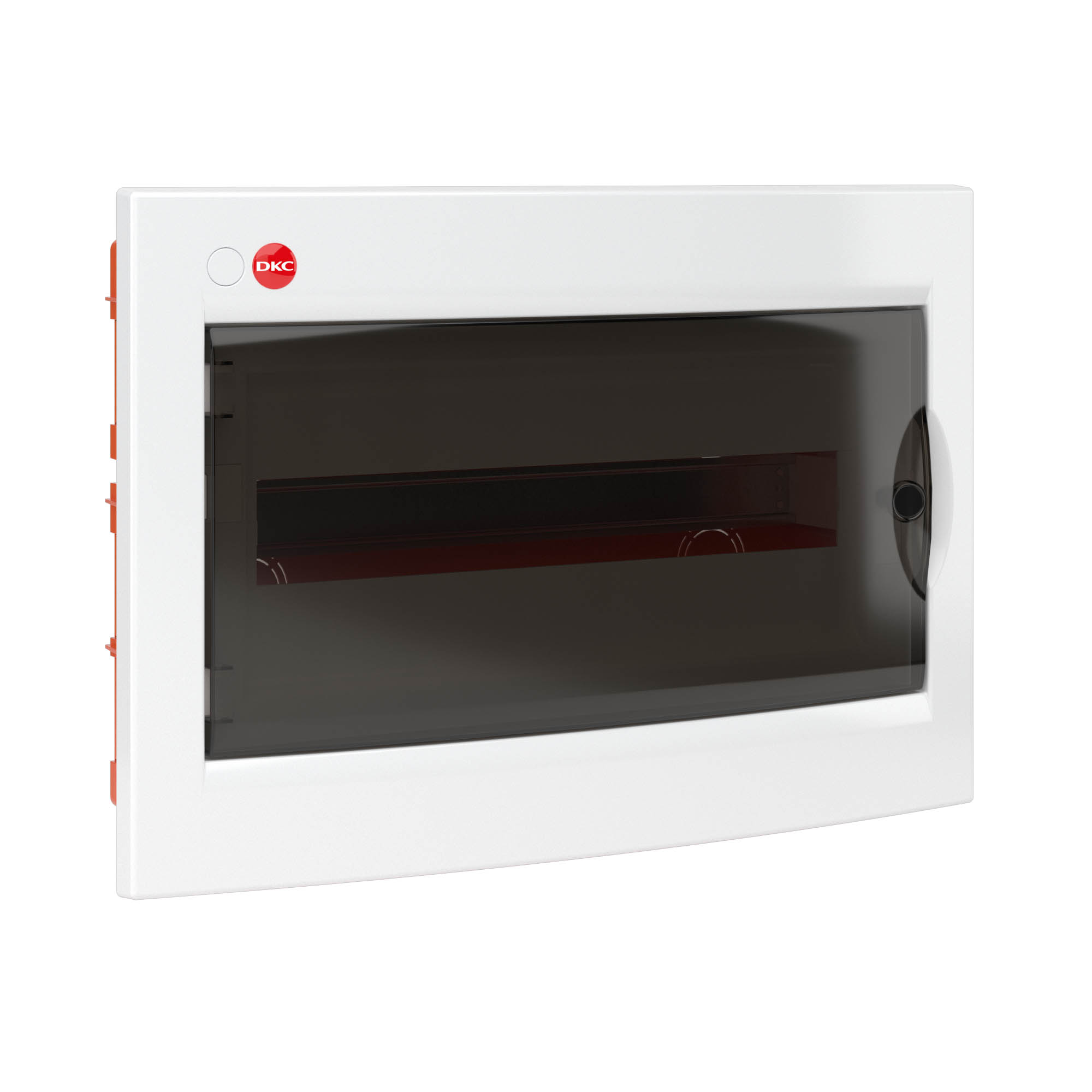

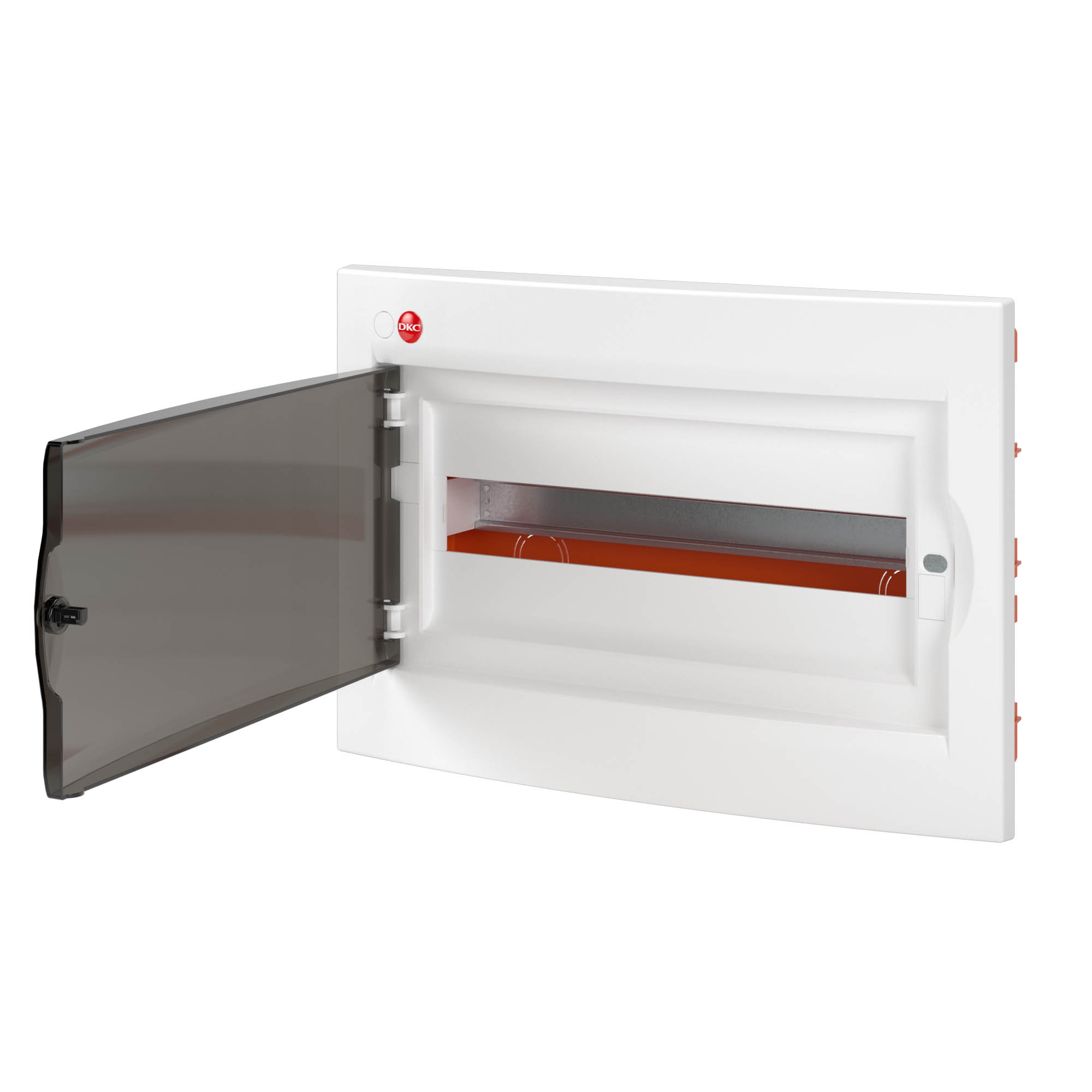

Plastic shield embeddable 18modules, IP41 white, with a terminal block 1х87318
Code:
81718
Plastic shield embeddable 18modules, IP41 white, with a terminal block 1х87318
Code:
81718
| Mounting method | Flush mounted (plaster) |
| Type of cover | Door |
| DIN-rail | Yes |
| Material housing | Plastic |
| Transparent cover/door | Yes |
| With lock | Yes |
| Cover model | Closed |
| Color | White |
| Material | PVC |
| Height, mm | 300 |
| Width, mm | 441 |
| Ingress Protection rating, IP | 41 |
| Shock resistance, J | 6 |
| Depth, mm | 114 |
| Depth of niche, mm | 77 |
Accessories

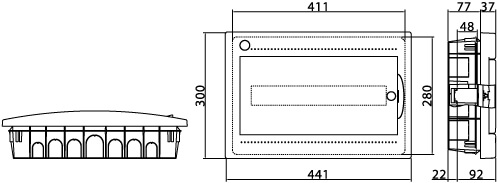

Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
