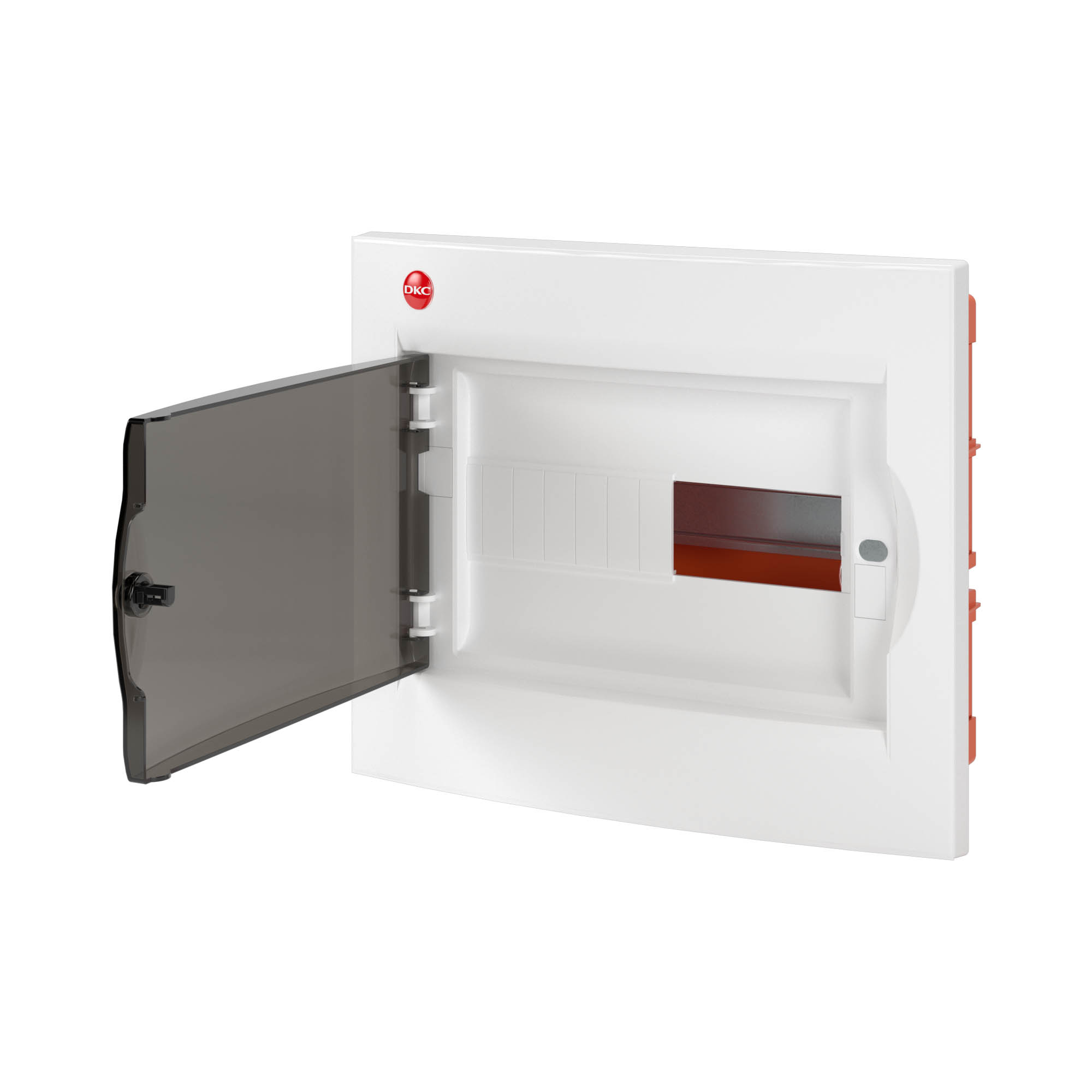

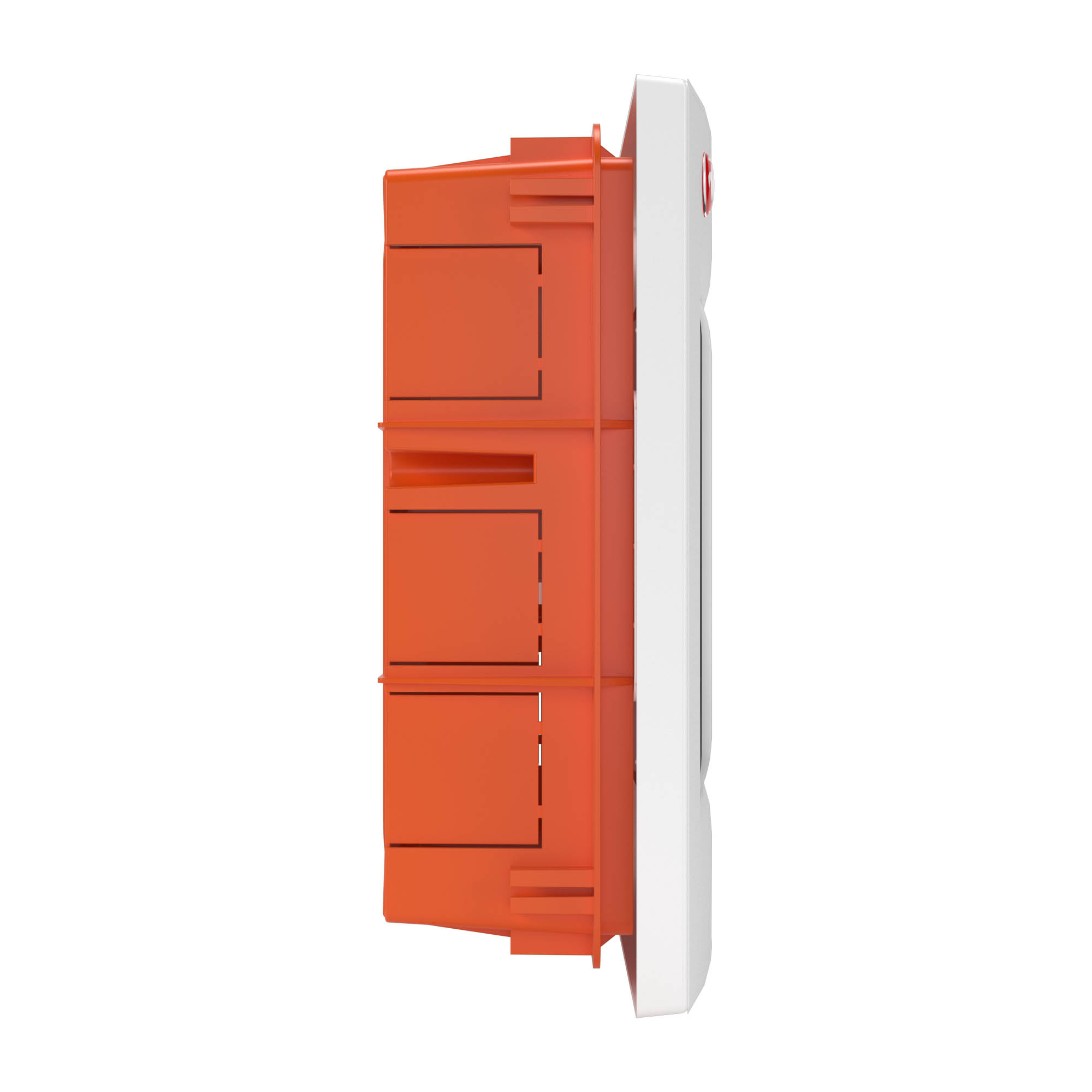

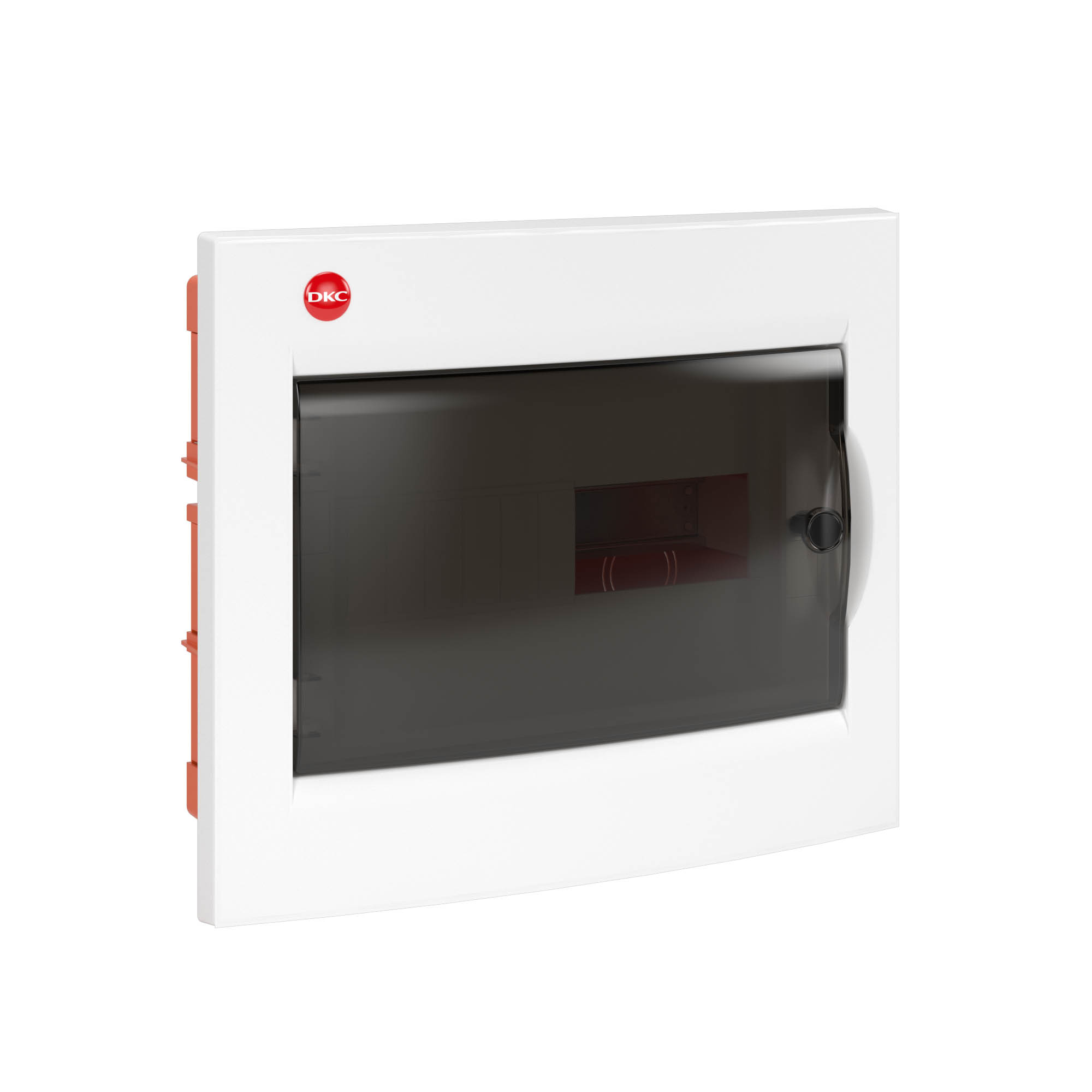

Plastic shield embeddable 12modules, IP41 white, with a terminal block.1х87512 and lock
Code:
81912
Plastic shield embeddable 12modules, IP41 white, with a terminal block.1х87512 and lock
Code:
81912
| Mounting method | Flush mounted (plaster) |
| Type of cover | Door |
| DIN-rail | Yes |
| Material housing | Plastic |
| Transparent cover/door | Yes |
| With lock | Yes |
| Cover model | Closed |
| Color | White |
| Material | PVC |
| Height, mm | 275 |
| Width, mm | 333 |
| Ingress Protection rating, IP | 41 |
| Shock resistance, J | 6 |
| Depth, mm | 103 |
| Depth of niche, mm | 72 |
