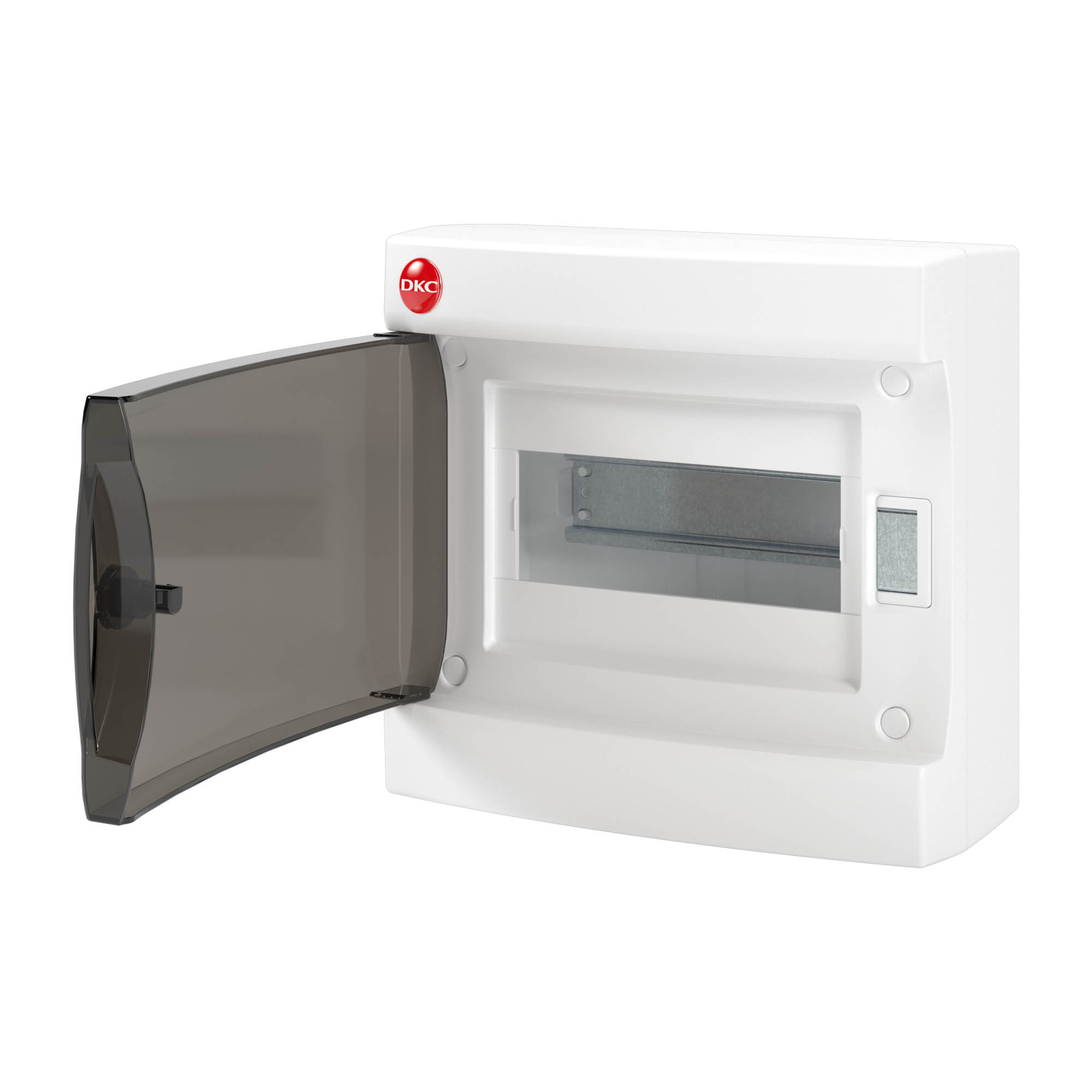

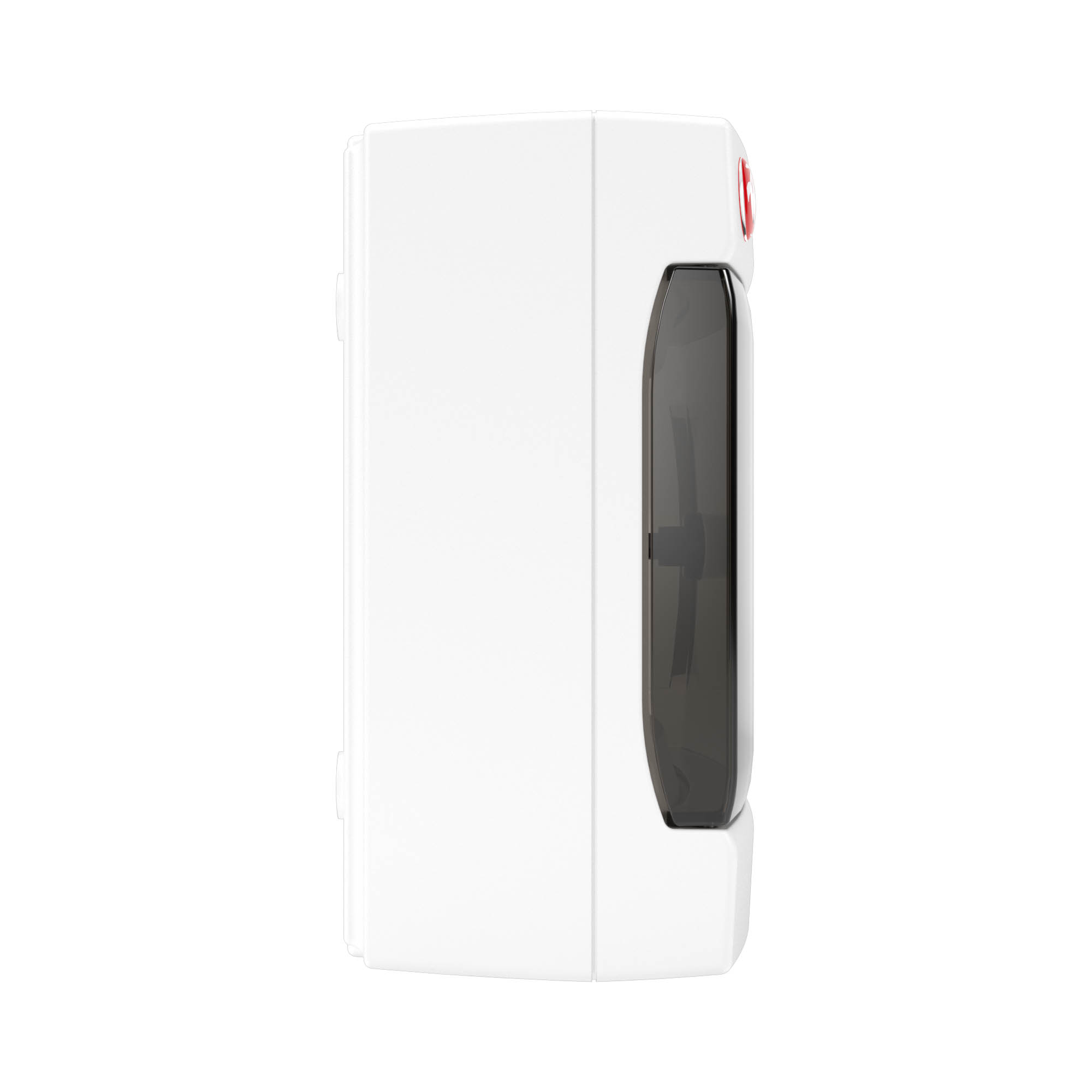

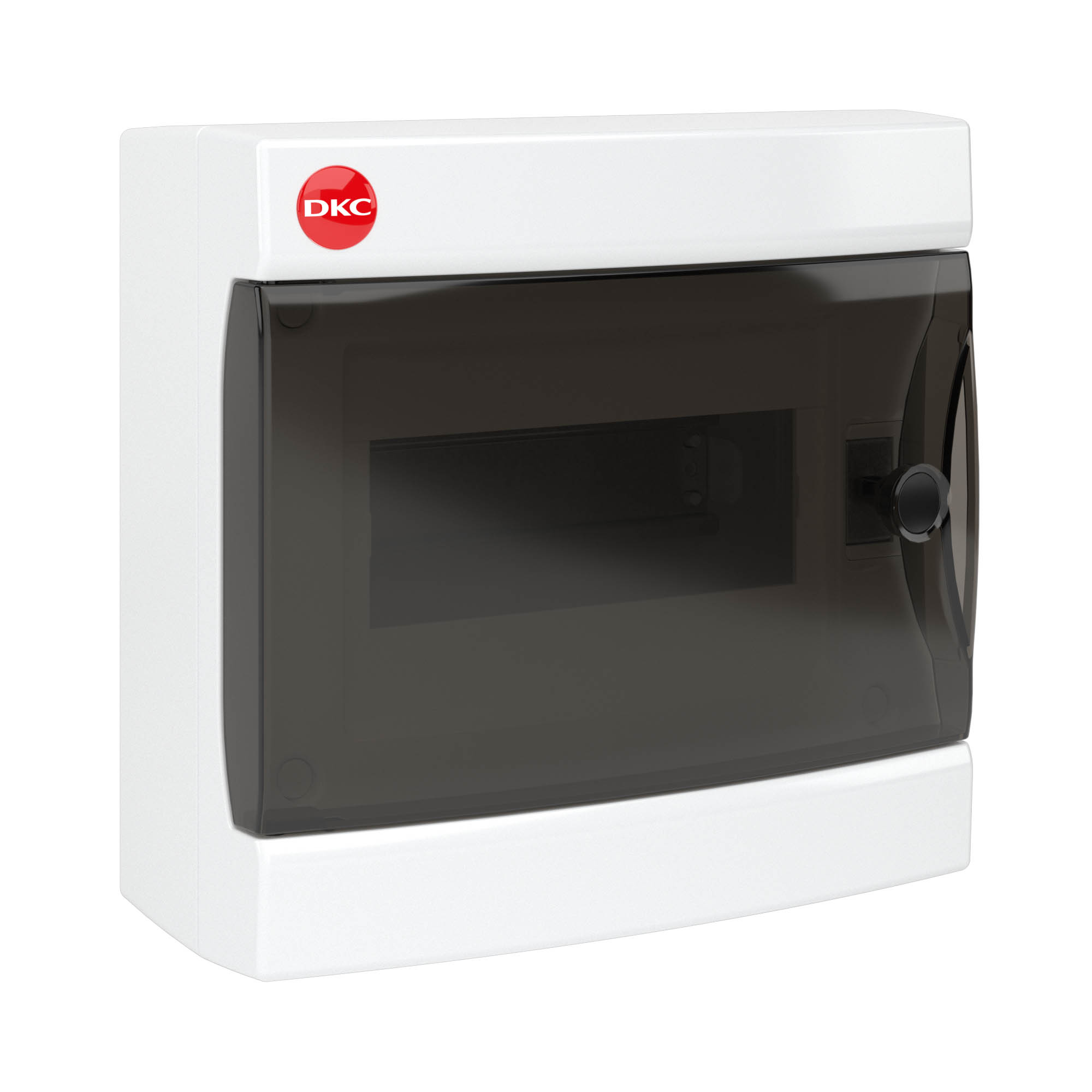

Plastic shield 8modules, IP41 white with reinforced terminal block 1х87308
Code:
84708
Plastic shield 8modules, IP41 white with reinforced terminal block 1х87308
Code:
84708
| Mounting method | Surface mounted (plaster) |
| Type of cover | Door |
| DIN-rail | Yes |
| Material housing | Plastic |
| Transparent cover/door | Yes |
| With lock | Yes |
| Cover model | Closed |
| Color | White |
| Material | PVC |
| Height, mm | 197 |
| Width, mm | 207 |
| Ingress Protection rating, IP | 41 |
| Shock resistance, J | 6 |
| Depth, mm | 101 |
Accessories

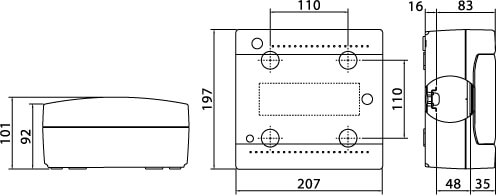

Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
Plastic modular enclosures - "RAMbase"
|
|
||
|
Plastic modular enclosures - "RAMbase"
|
|
