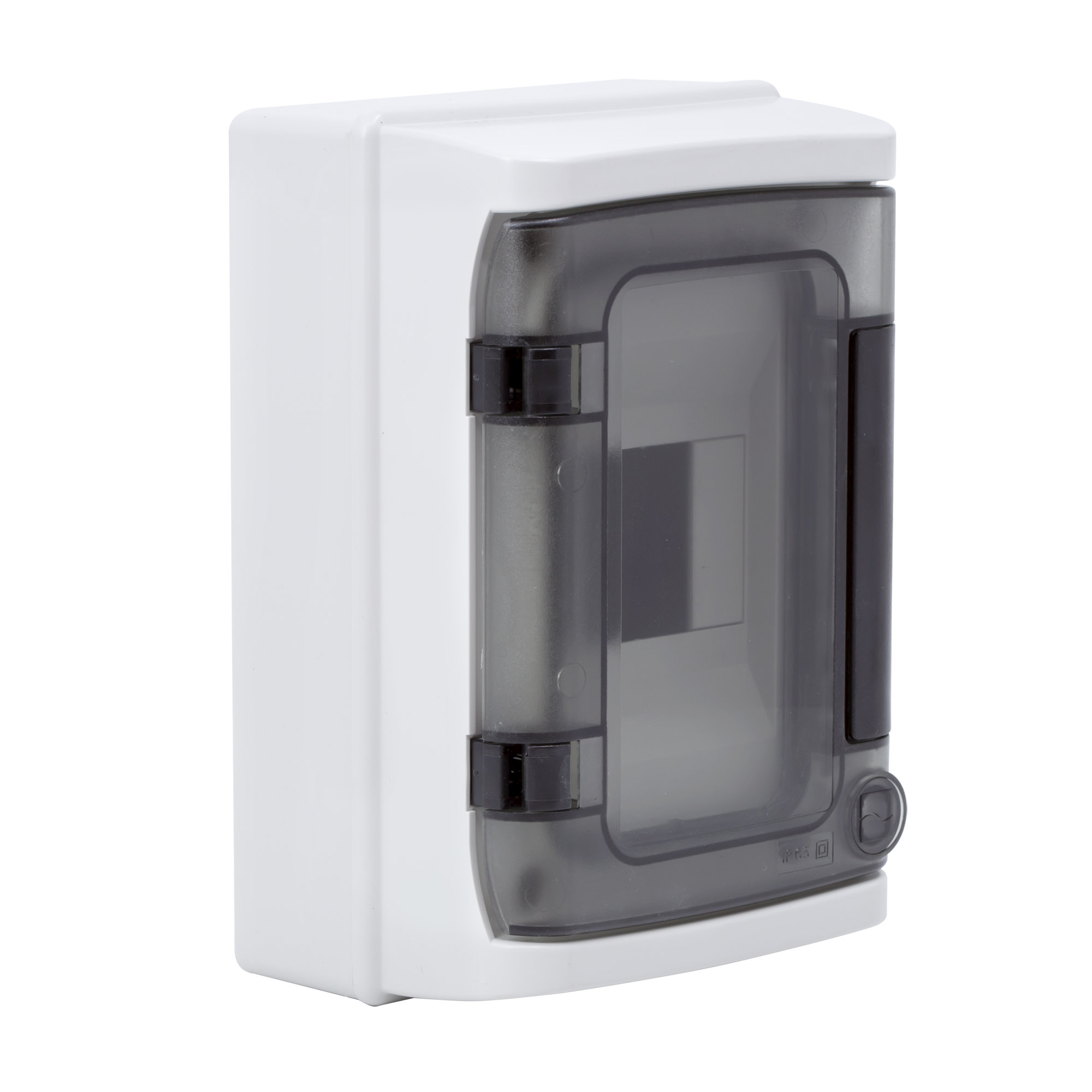

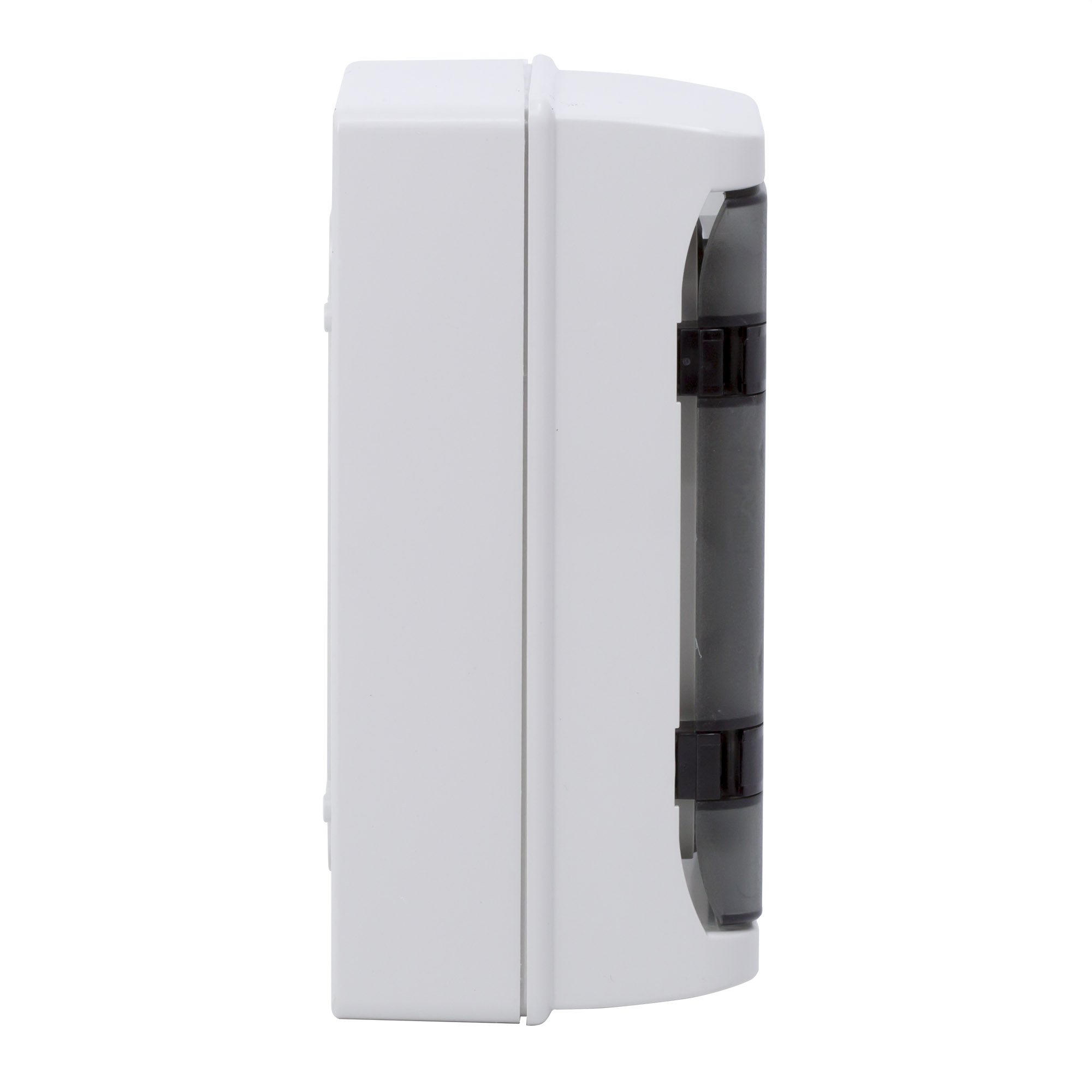

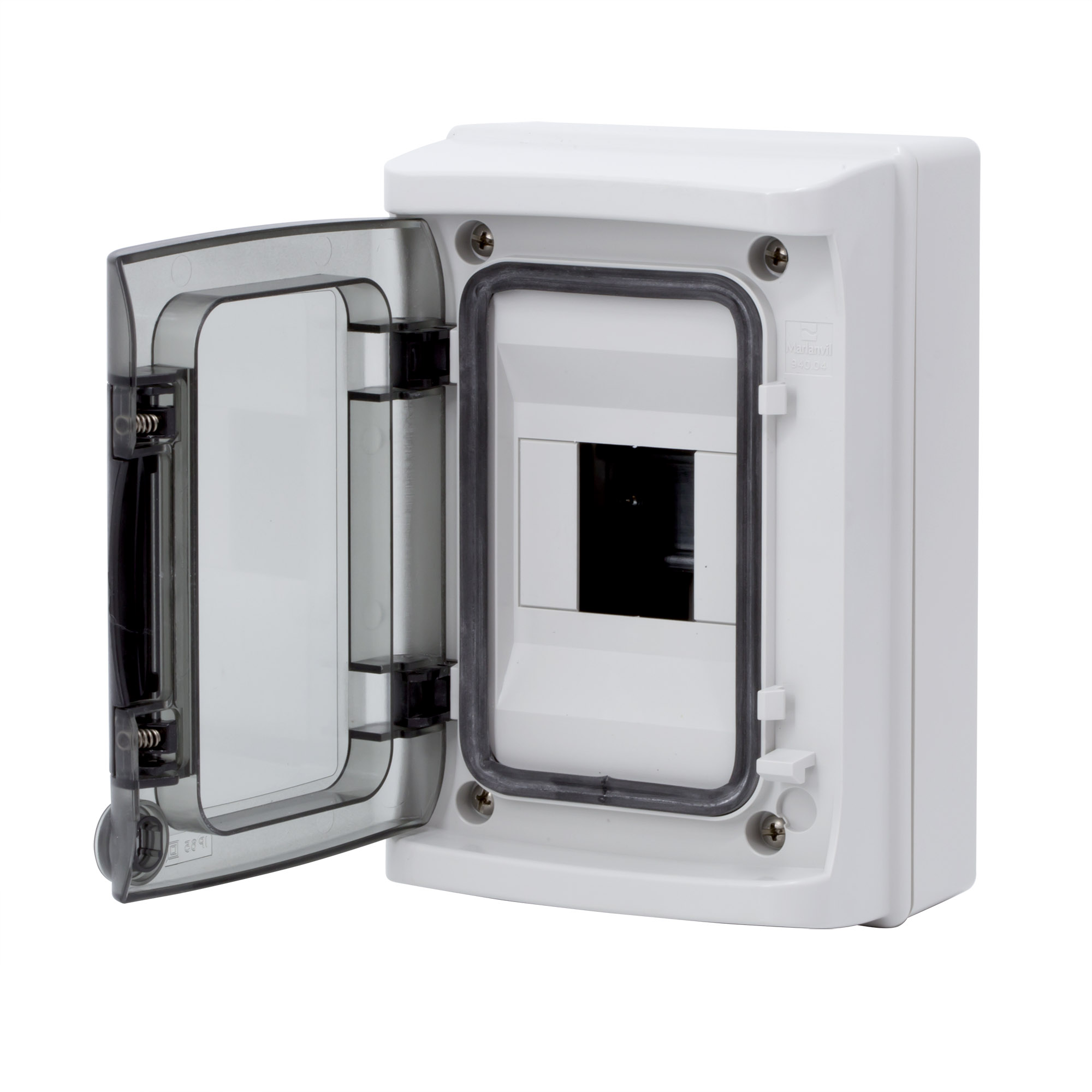

Plastic shield 4 modules, IP65, gray
Code:
85604
Plastic shield 4 modules, IP65, gray
Code:
85604
| Mounting method | Surface mounted (plaster) |
| Number of rows | 1 |
| Type of cover | Door |
| DIN-rail | Yes |
| Material housing | Plastic |
| Width in number of modular spacings | 4 |
| With lock | No |
| Cover model | Closed |
| Colour | Grey |
| Width, mm | 142 |
| Height, mm | 210 |
| Depth, mm | 100 |
| With mounting plate | No |
| Degree of protection (IP) | IP65 |
| Color | gray |
| Material | PVC |
| Width | 142 mm |
| Height | 210 mm |
| Depth | 100 mm |
| Degree of protection | IP65 |
| Shock resistance, J | IK09 |
Accessories

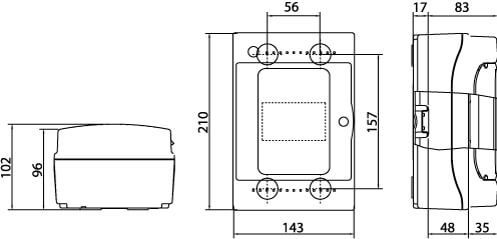

Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
