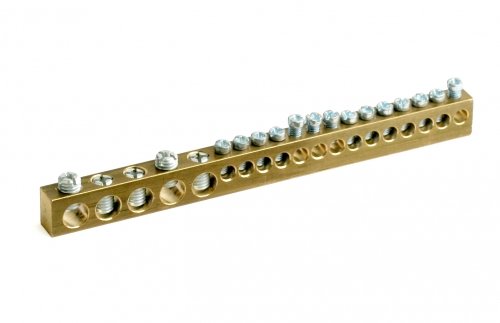

Reinforced terminal block 18 modules, (5х9mm+14х5,4mm)
Code:
87118
Reinforced terminal block 18 modules, (5х9mm+14х5,4mm)
Code:
87118
| Mounting method | Special profile |
| Colour | Other |
| Rated voltage, V | 400 |
| Number of poles | 18 |
| Length, mm | 23.7 |
| Operating temperature, °C | -60...80 |
| Number of clamp positions per pole | 14 |
| Width/grid dimension, mm | 5.4 |
| Closing plate required | Yes |
| Transparent | Yes |
| Rated current In, A | 160 |
| Explosion-tested version 'Ex e' | Yes |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connection position | Sideways |
Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
