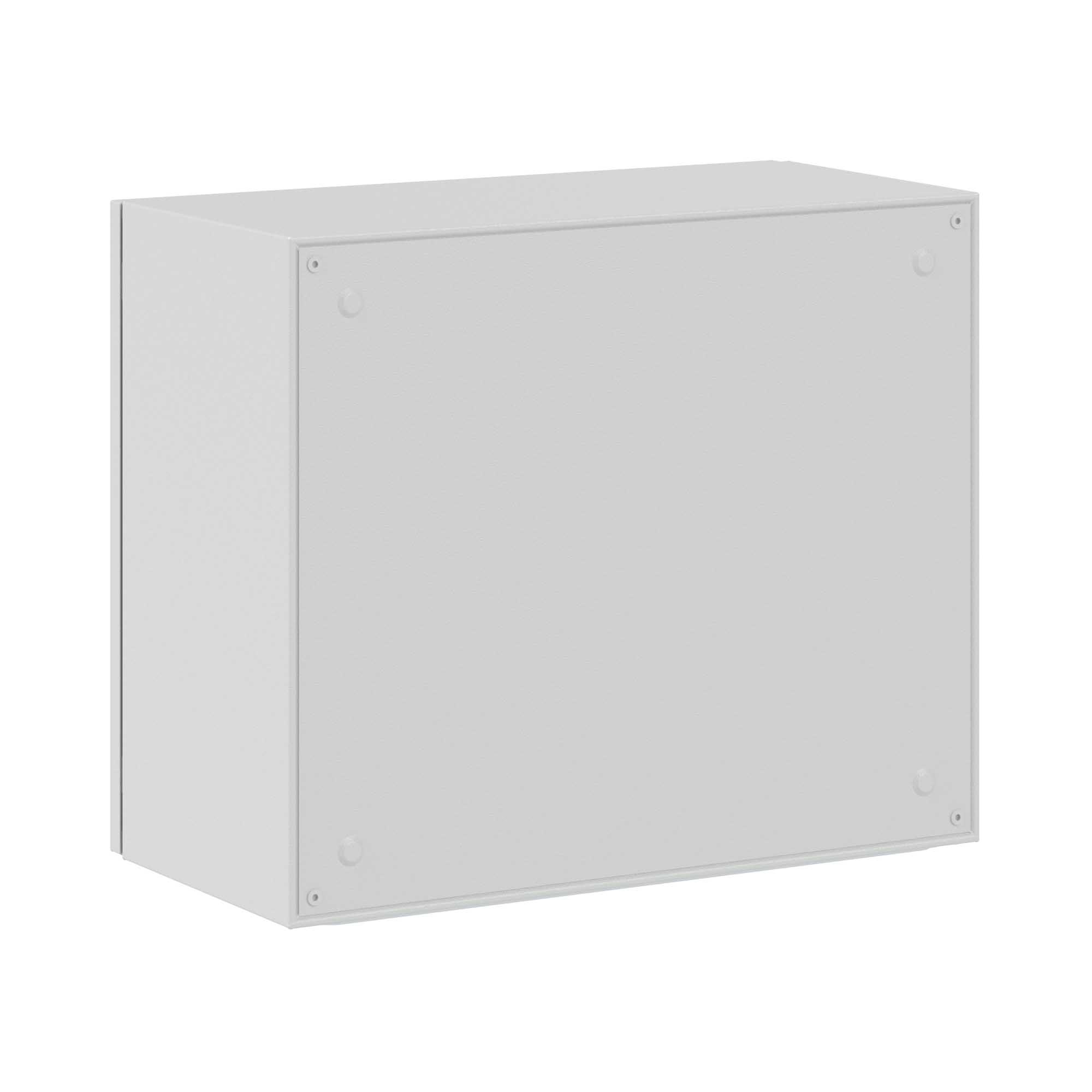

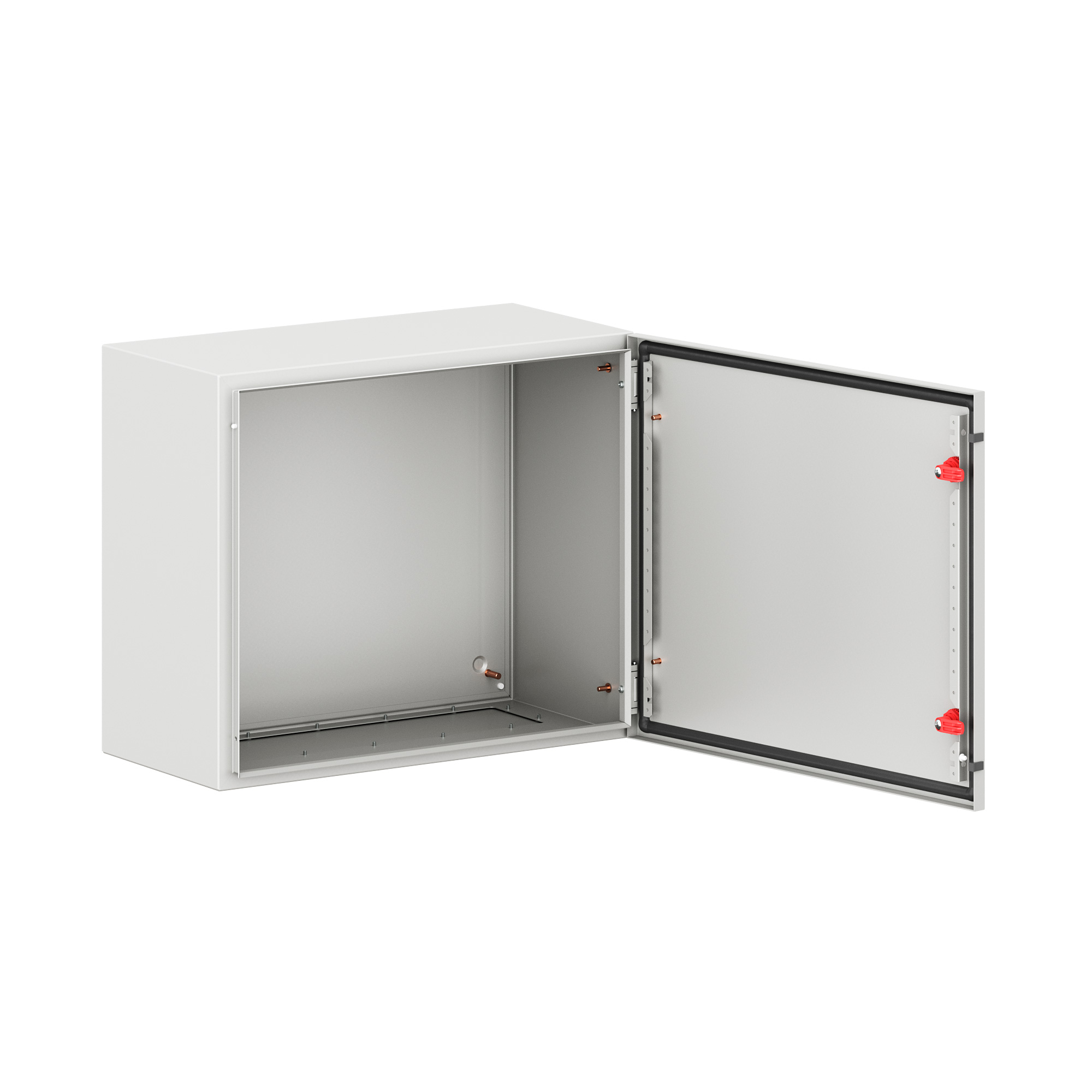

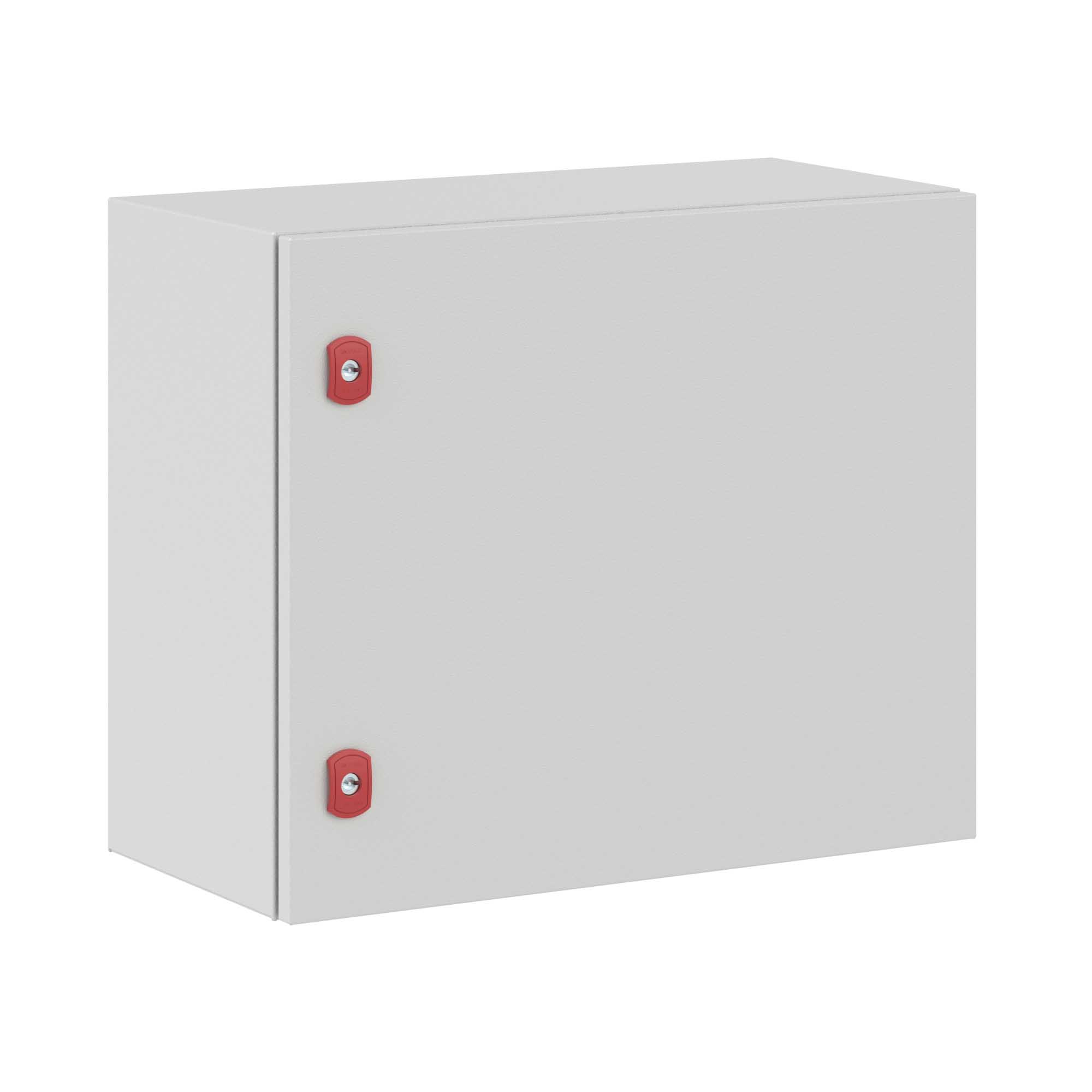

ST cabinet without MP 500x600x300

Code: R5ST0563WMP

ST cabinet without MP 500x600x300

Code: R5ST0563WMP
Colour Grey
Width, mm 600
Height, mm 500
Depth, mm 300
RAL-number 7035
With mounting plate No
Number of doors 1
Number of locks 2
EMC-version No
With glazed door No
Material Steel
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting No
Mounting plate depth-adjustable Yes
Tackable No
With ventilation door No
Surface finishing Powder coating
With backside door No
Impact strength IK10
Wall fastening possible Yes
Wall build in No
Pitched roof No
Floor installation possible No
Pole fastening Yes
Material quality Other
Enclosure type Wall-mounted
Enclosure specification Without a mounting plate
Material Painted steel
Product type Enclosure
Drawings
Seria Name Insulation cut out DWG (dynamic.)
