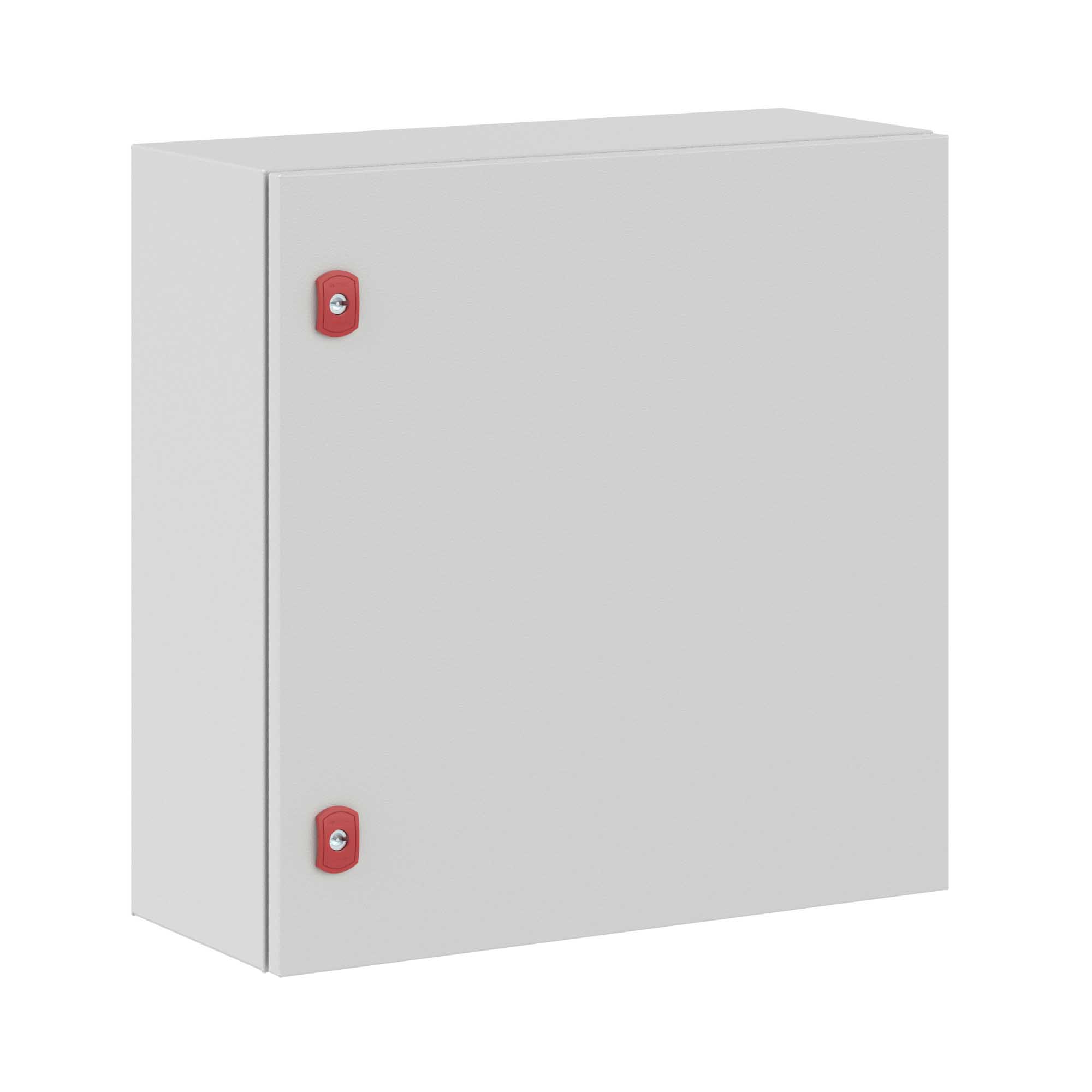

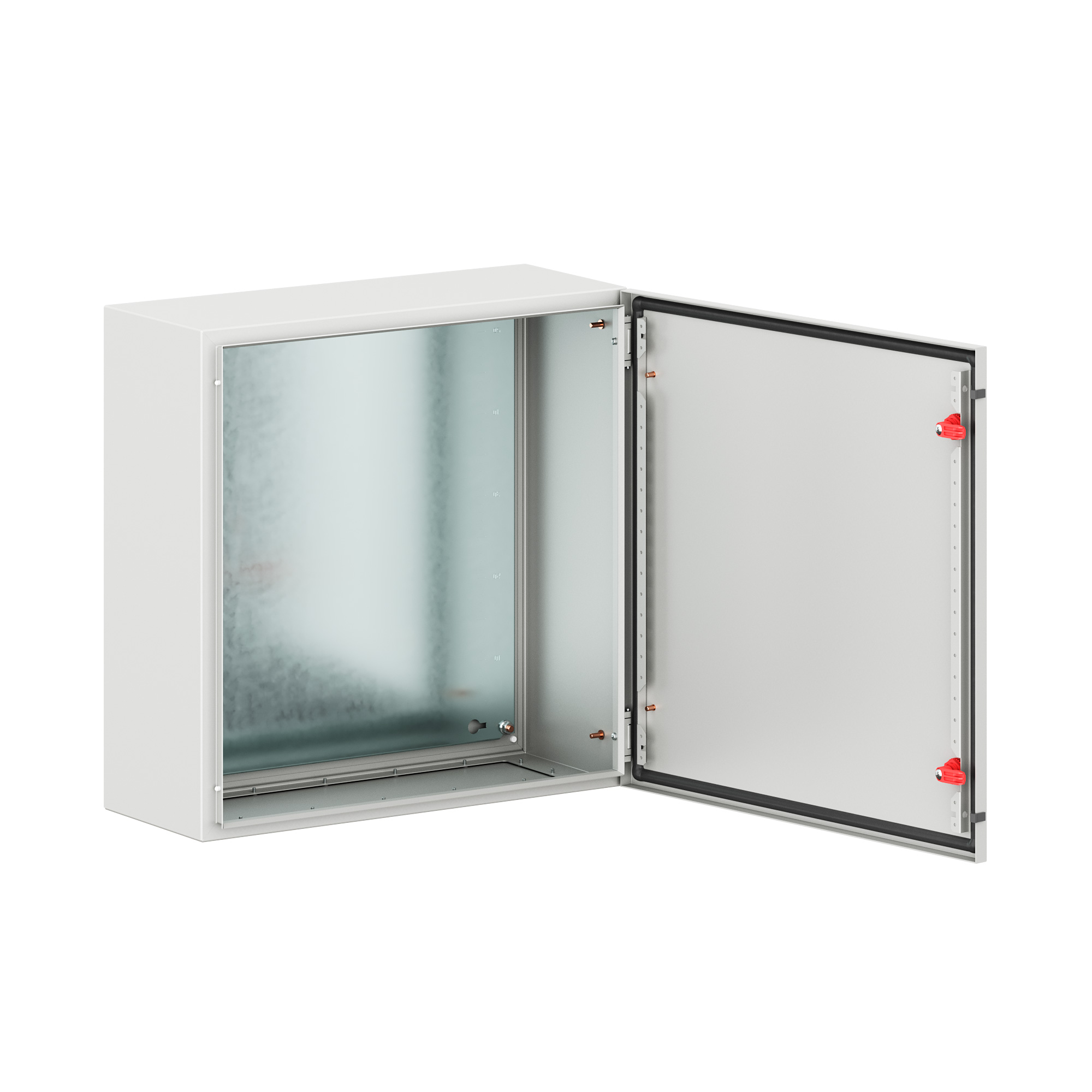

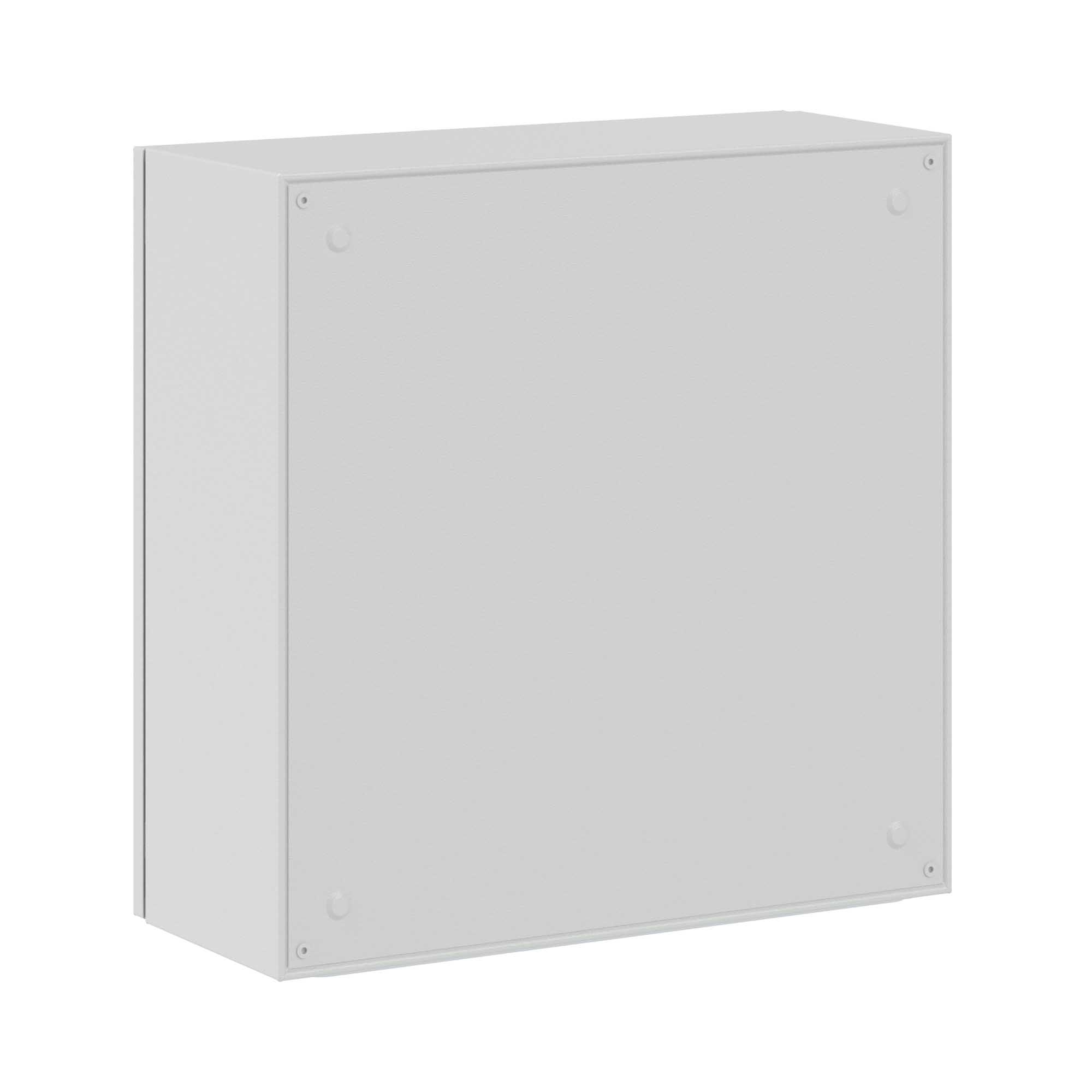

Wall cabinet ST, 600 x 600 x 250 mm
Code:
R5ST0669
Wall cabinet ST, 600 x 600 x 250 mm
Code:
R5ST0669
Colour | Grey |
Width, mm | 600 |
Height, mm | 600 |
Depth, mm | 250 |
RAL-number | 7035 |
With mounting plate | Yes |
Number of doors | 1 |
Number of locks | 2 |
Material | Steel |
Degree of protection (IP) | IP66 |
Suitable for outdoor set-up | Yes |
Mounting plate depth-adjustable | Yes |
Surface finishing | Powder coating |
Impact strength | IK10 |
Wall fastening possible | Yes |
Pole fastening | Yes |
Product type | Wall mounted enclosure |
Series | ST |
Material | Steel, light grey, RAL7035 |
Height | 600 mm |
Width | 600 mm |
Depth | 250 mm |
Enclosure design | Reversible plain door |
Mounting plate | Included |
Door slats | Included |
Cable flanges | Included |
Number of cable flanges | 1 pc. |
Enclosure thickness | 1,2 mm |
Door/lid thickness | 1,5 mm |
Mounting plate thickness | 1,8 mm |
Cablr flange thickness | 1,5 mm |
Gasket | Polyurethane |
Degree of protection | IP66 |
IK | IK10 |
Seismic resistance | Degree 9 of MSK-64 |
Mechanical strength | M39 |
Temperature range | -60...+90 °С |
Climate version | UHL1, OM2, OM3, U3 |
Flammability | G1 |
Russian Maritime Register of Shipping | Yes |
Russian Classification Society | Yes |
Accessories
Analogs
The accompanying goods
Drawings
Seria | Name | DWG | STEP |
---|---|---|---|
