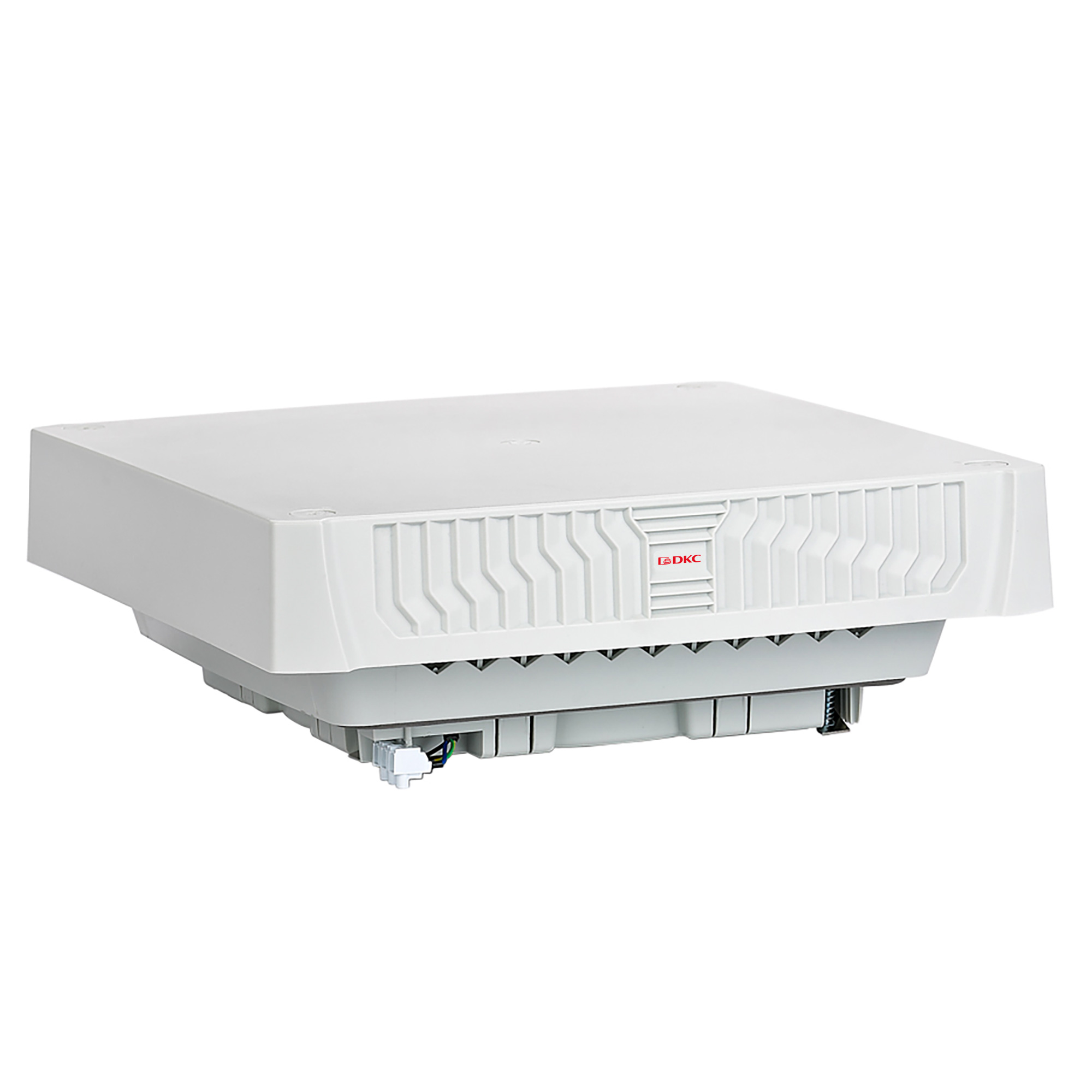

Roof fan with filter 135x400x400 mm, 430/465 m3/h, 230 V, IP55

Code: R5SCF500
Code: R5SCF500
  • To ask a question
Mounting method Screw mounting
Colour Grey
Width, mm 400
Height, mm 135
Depth, mm 400
RAL-number 7035
Voltage type AC
Suitable for 19 inch rack mounting Yes
Number of fans 1
Degree of protection (IP) IP55
With protective cover Yes
With filter Yes
Rated power, W 60
Roof ventilator Yes
Built as slide-in ventilator Yes
Volume flow, freeblowing, m³/h 430
Wall build in No
Noise emission, dB(A) 71
Operating voltage at AC 50 Hz, V 230...230
Operating voltage at AC 60 Hz, V 230...230
Product type Fan
Mounting type Roof-mounted
Rated voltage 230 VAC, 1 p, 50/60 Hz

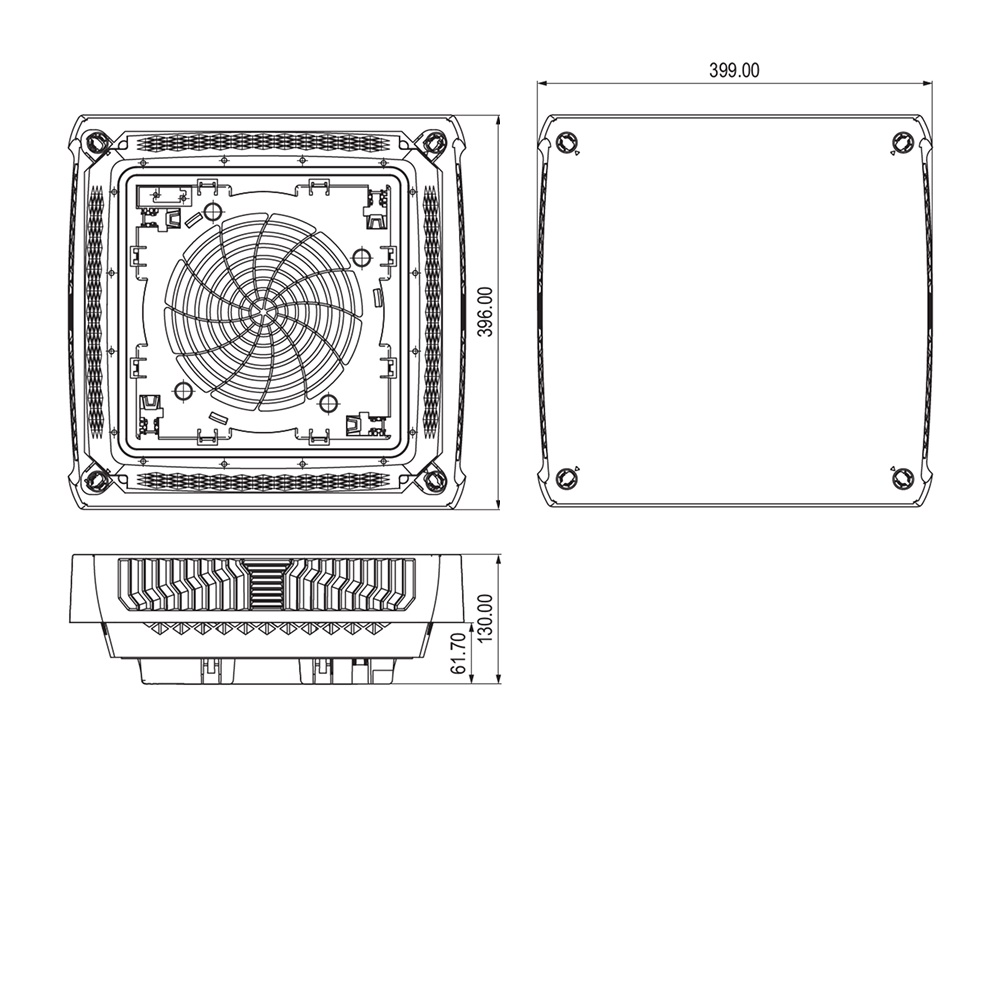

External dimensions (W x H x D) 400 x 130 x 400 mm
Required mounting cut-out (W x H) 258 x 258 мм
Degree of protection without filter: IP22, with filter: IP55
Material ABS plastic
Operating temperature range –25...+55 ˚C
Storage temperature range –40...+70 ˚C
Humidity range Not more than 75 % (without condensation)
Noise level 71 dB(A)
Operating current 0,28 А
3 кВА (максимальный входной ток 13,6 А) 60 W
air flow without filter 570 m3/h
air flow with filter 430 m3/h
Service life (MTBF) 50000 h
Filter class G4
Color RAL 7035, light grey
