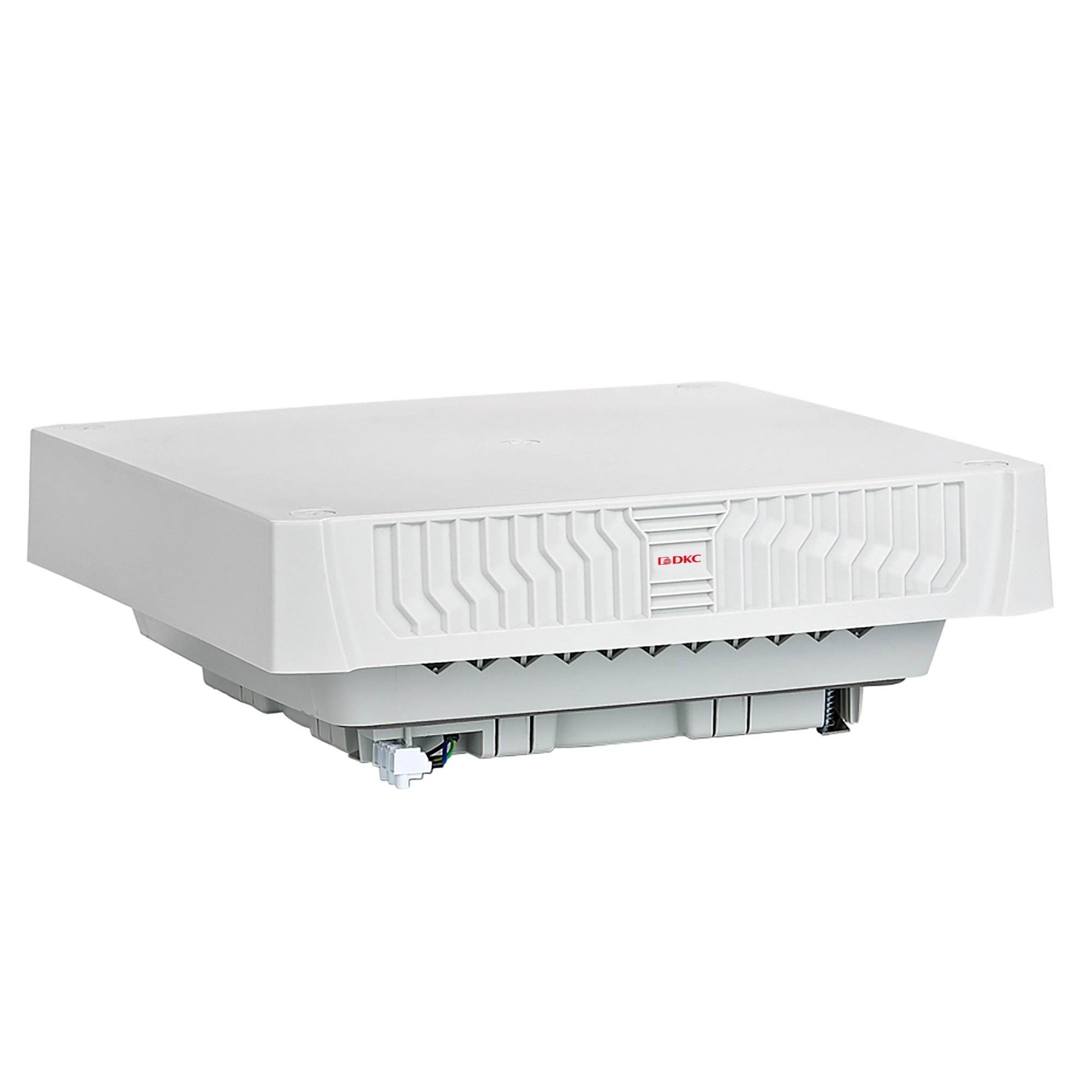

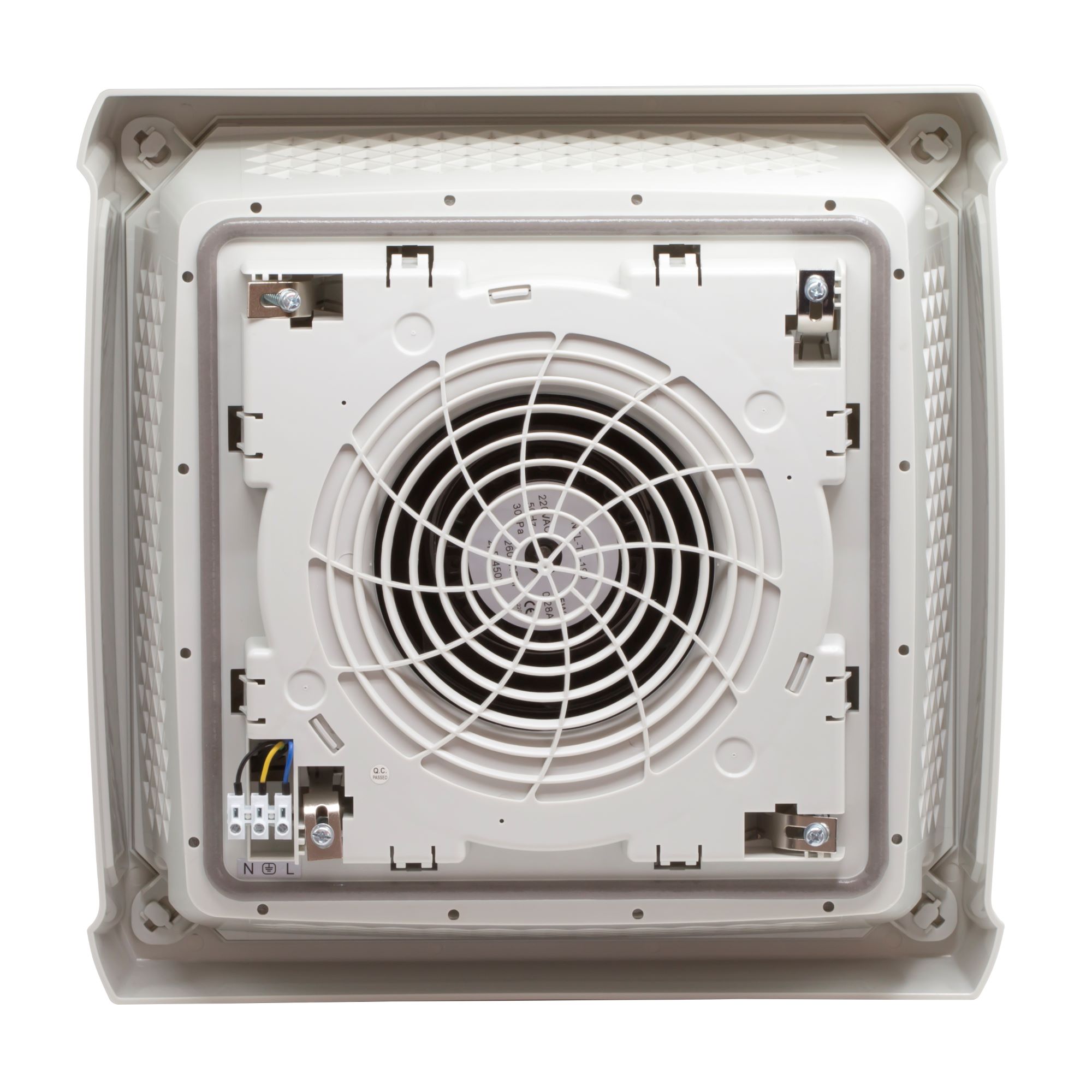

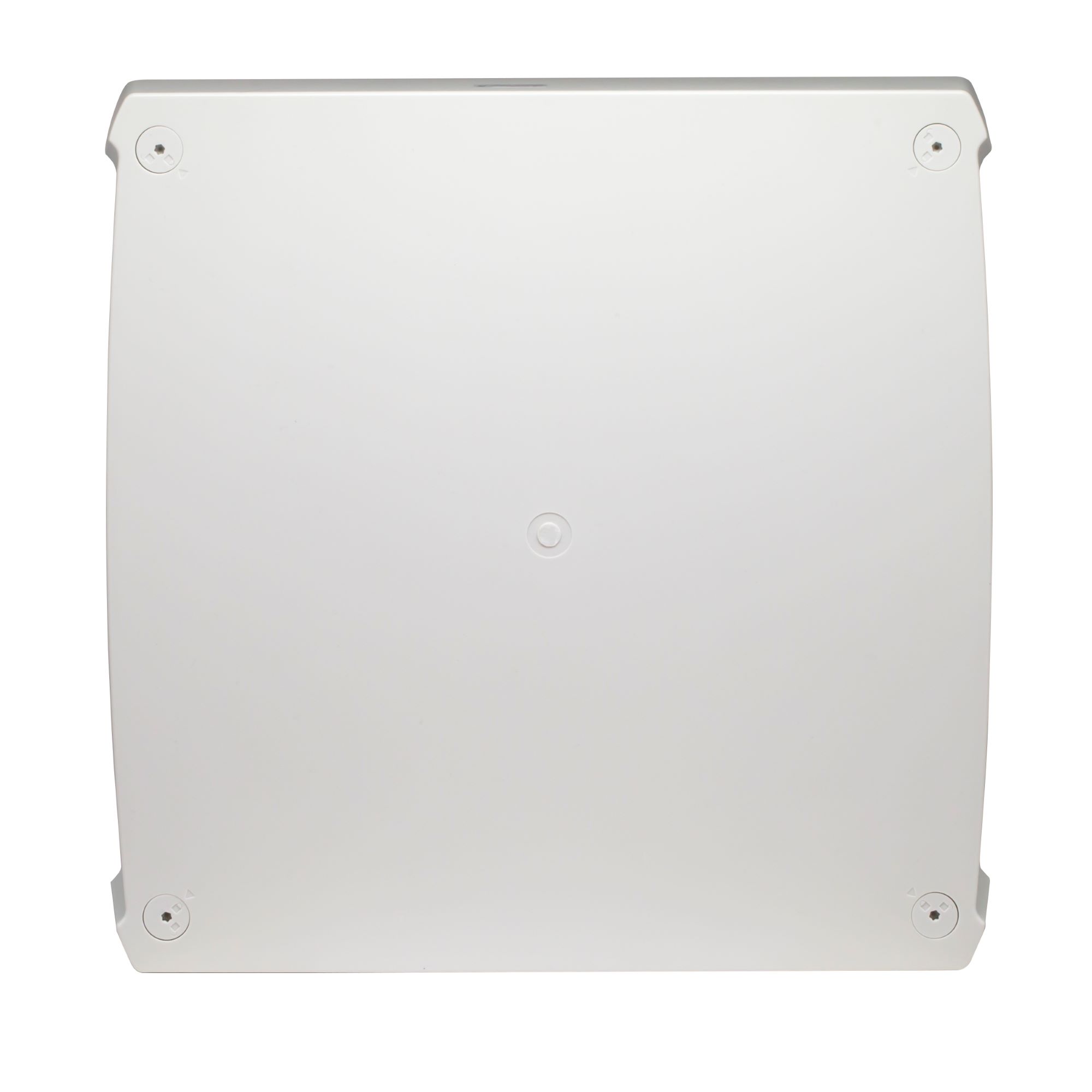

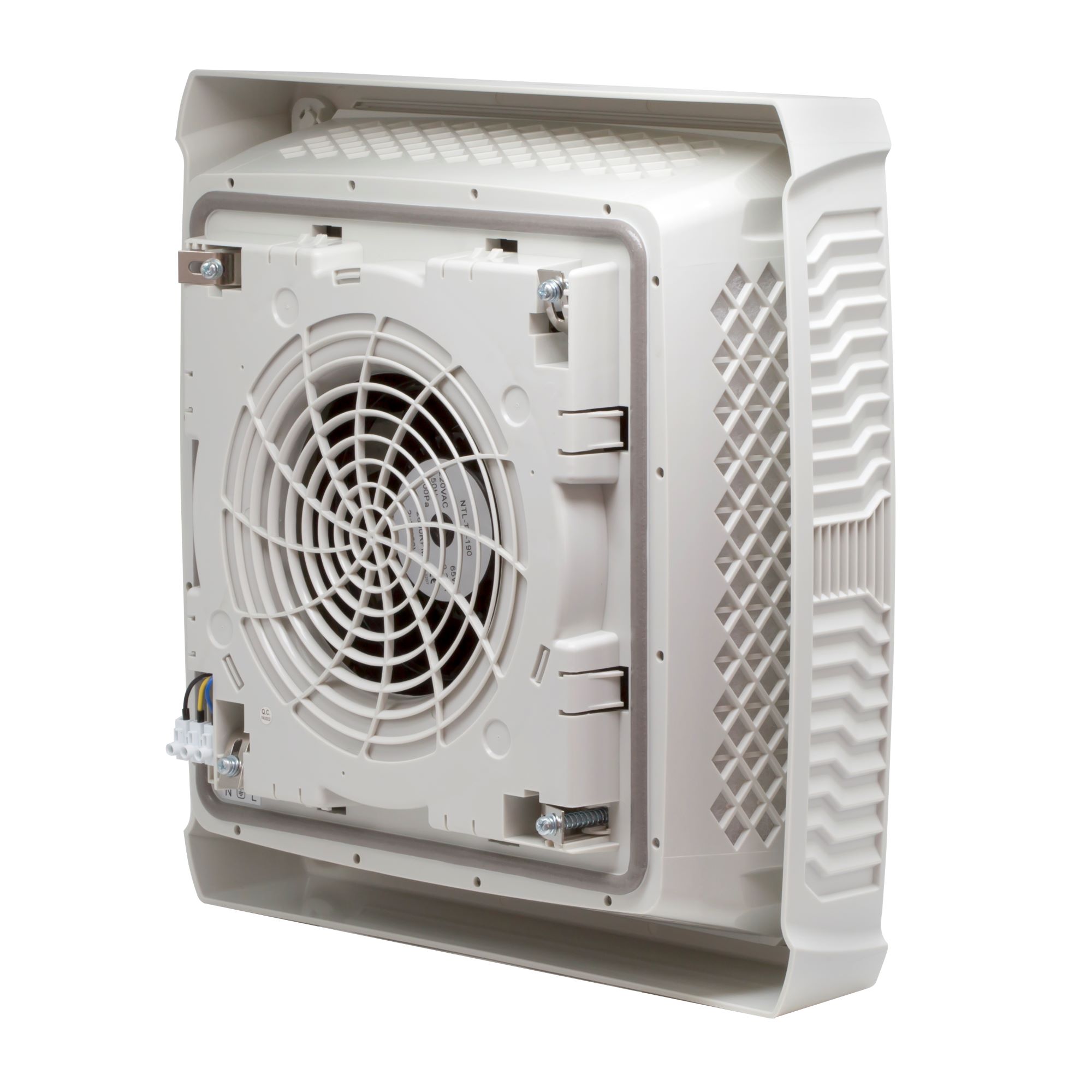

Roof fan with filter 135x400x400 mm, 675/702 m3/h, 230 V, IP55

Code: R5SCF700
  • To ask a question
Mounting method Screw mounting
Colour Grey

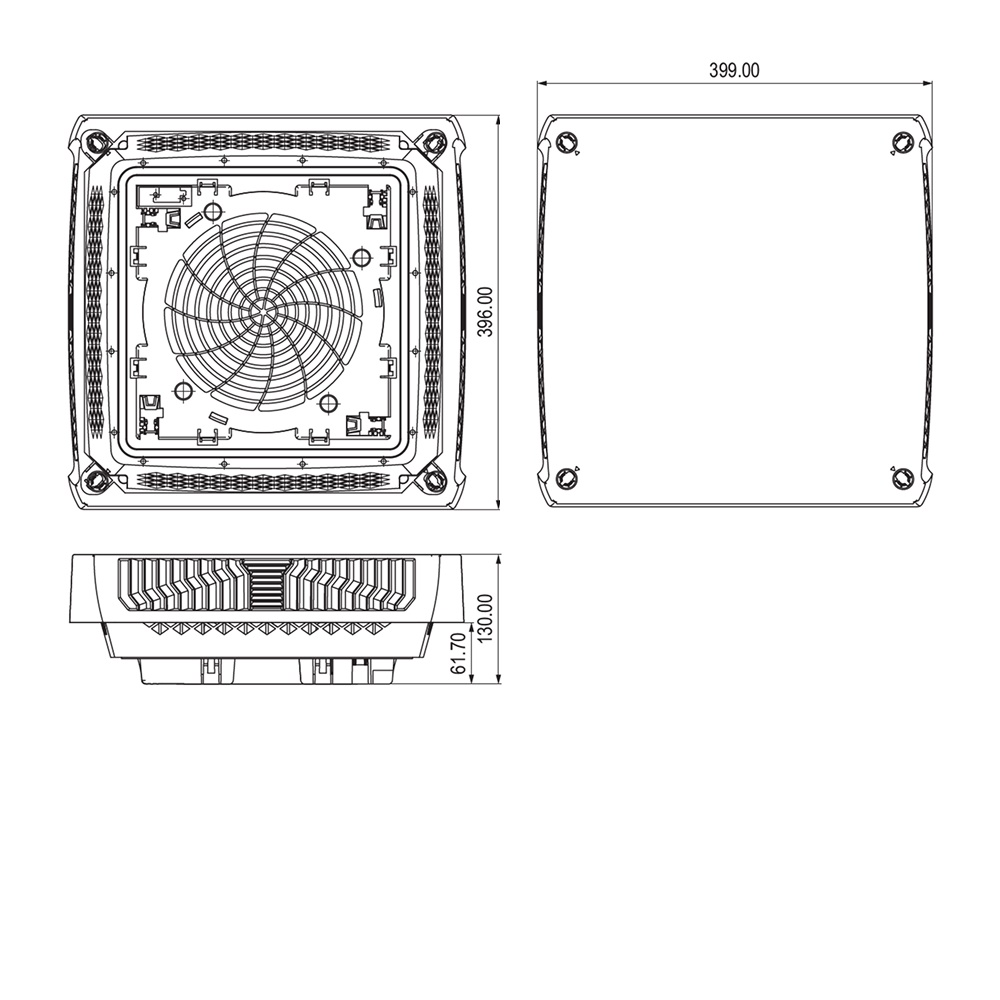

Width, mm 400
Height, mm 135
Depth, mm 400
RAL-number 7035
Voltage type AC
Suitable for 19 inch rack mounting No
Number of fans 1
EMC-version No
Degree of protection (IP) IP55
With protective cover Yes
With filter Yes
Rated power, W 98
Roof ventilator Yes
Built as slide-in ventilator No
Volume flow, freeblowing, m³/h 675
Wall build in No
Noise emission, dB(A) 74
Operating voltage at AC 50 Hz, V 230...230
Operating voltage at AC 60 Hz, V 230...230
