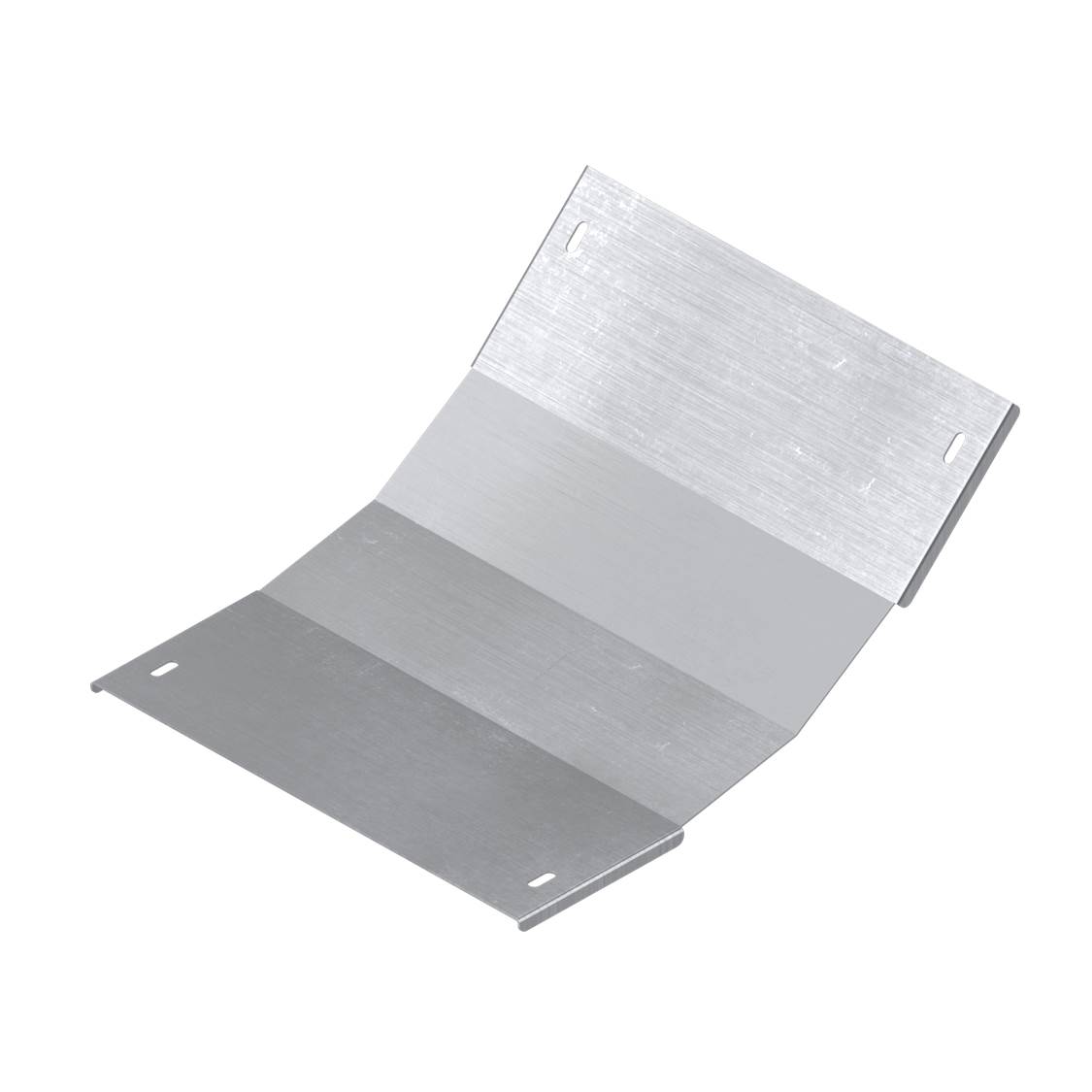

Cover for Internal vertical angle 45° 50x200, R600, included with fasteners (joint plates GTO, screws, nuts)
| Colour | Light grey |
| Width, mm | 200 |
| Surface protection | Sendzimir galvanized |
| Deflection (angle) | 45° |
| Material | Steel |
| Type of fastening | Snapped on |
| Change of direction | Vertically rising |
| Material quality | Steel |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Type of accessories | Cover for 45º vertical inner bend |
| Product type | Cover for system accessories |
| Height | 50 mm |
| Width | 200 mm |
| Material | Pre-galvanized steel |

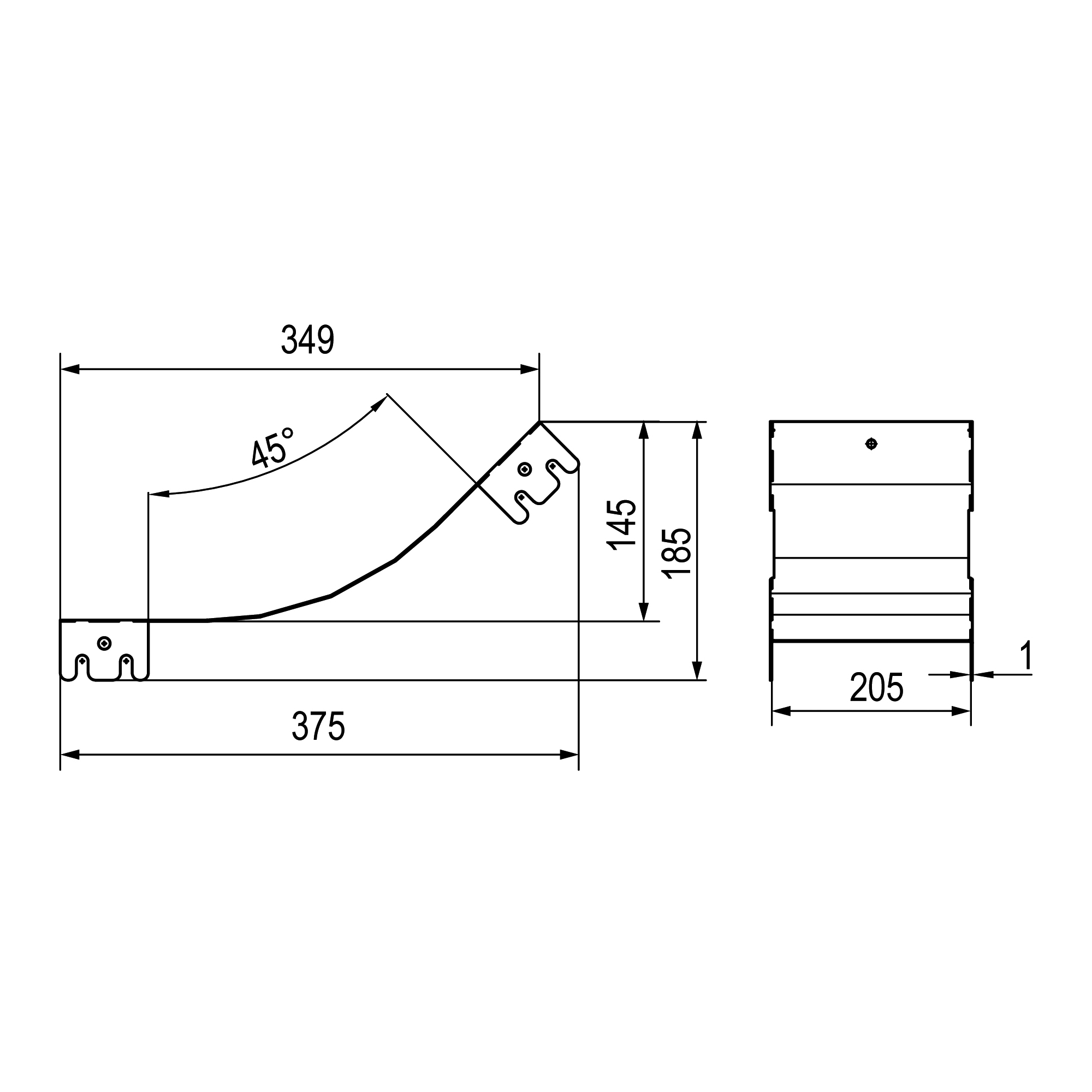

Drawings
| Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
