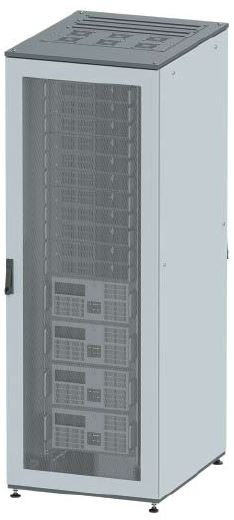

Disassembled 19 "IT-CQE 38U 600х1800х600, perforated + perforated doors, RAL7011/7035
Code:
R5IT3866PF
Disassembled 19 "IT-CQE 38U 600х1800х600, perforated + perforated doors, RAL7011/7035
Code:
R5IT3866PF
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | Grey |
| Model | With permanent frame |
| Height, mm | 1800 |
| Width, mm | 600 |
| Depth, mm | 600 |
| Demountable | Yes |
| Degree of protection (IP) | IP20 |
| Number of doors | 2 |
| Number of height units | 38 |
| Mounting level | Front and rear |
| Type of profile rail | Crank |
| With roof plate | Yes |
| With earthing | Yes |
| With front door | Yes |
| With backside door | Yes |
| With sidewall | Yes |
| Modular spacing | 482.6 mm (19 inch) |
| Type of ventilation | Active |
| RAL-number | 7035 |

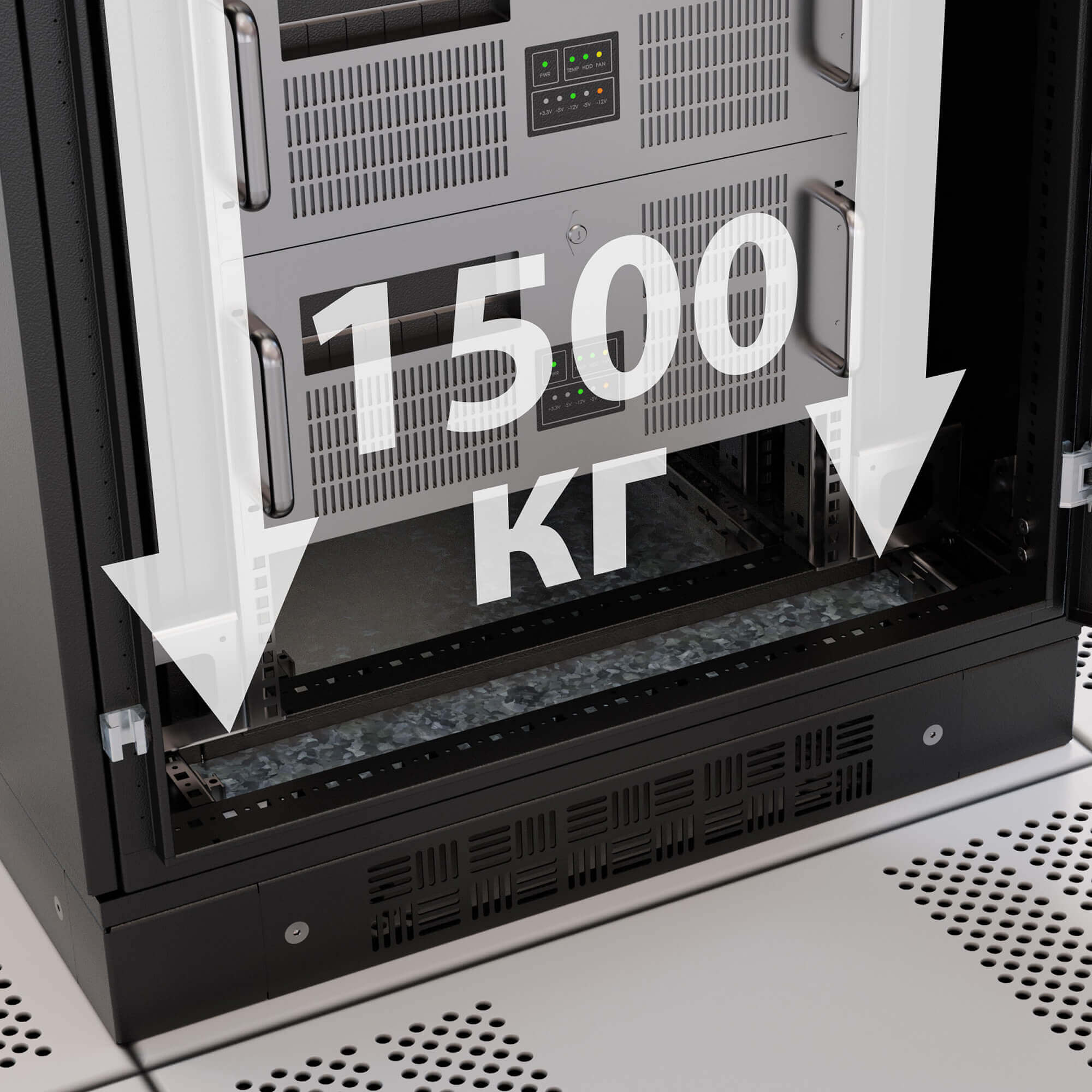

| Max. load capacity, kg | 1500 |
| With glazed door | Yes |
| Front door locking system | Three-point |
| Rear door locking system | Three-point |
| Front door material | Steel |
| Rear door material | Steel |
| Front door sort | Single leaf perforated |
| Rear door sort | Single leaf perforated |
| Product type | Switching cabinet |
| Cabinet Width | 600 mm |
| Depth | 600 mm |
| Height | 38U |
| Color | RAL7011/7035 (gray/light gray) |
| Cabinet type | Floor |
