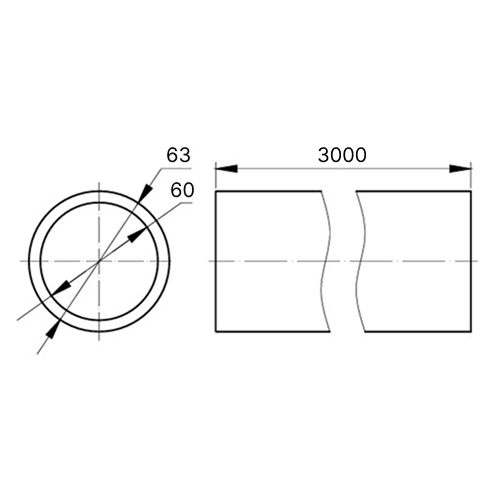

Rigid ZL conduit ø63x1,5x3000 mm
Code: 6008-63L3ZL
Rigid ZL conduit ø63x1,5x3000 mm
Code: 6008-63L3ZL
Model | Rigid non-threaded |
Outer diameter, mm | 63 |
Inner diameter, mm | 60 |
Material | Steel |
Suitable for subsurface installation (screed) | Yes |
Outdoor installation | Yes |
Colour | Natural colour |
Product type | Rigid pipe, zinc lamella |
Material | Zinc-lamellated steel |
Length, mm | 3000 |
Thickness, mm | 1,5 |
Temperature of mounting, °C | -45 ... +150 °С |
Ingress Protection rating, IP | IP66/IP67 |
Temperature of operation, °C | -60 to +150 °С |
Shock resistance, J | > 20 J at -25 °С |
Climate version | U1, HL1, UHL1, UHL5, OM1 |
Fire protection | non-combustible material |
ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2014 |
3 года | 3 years |
15 лет | 3 years |
