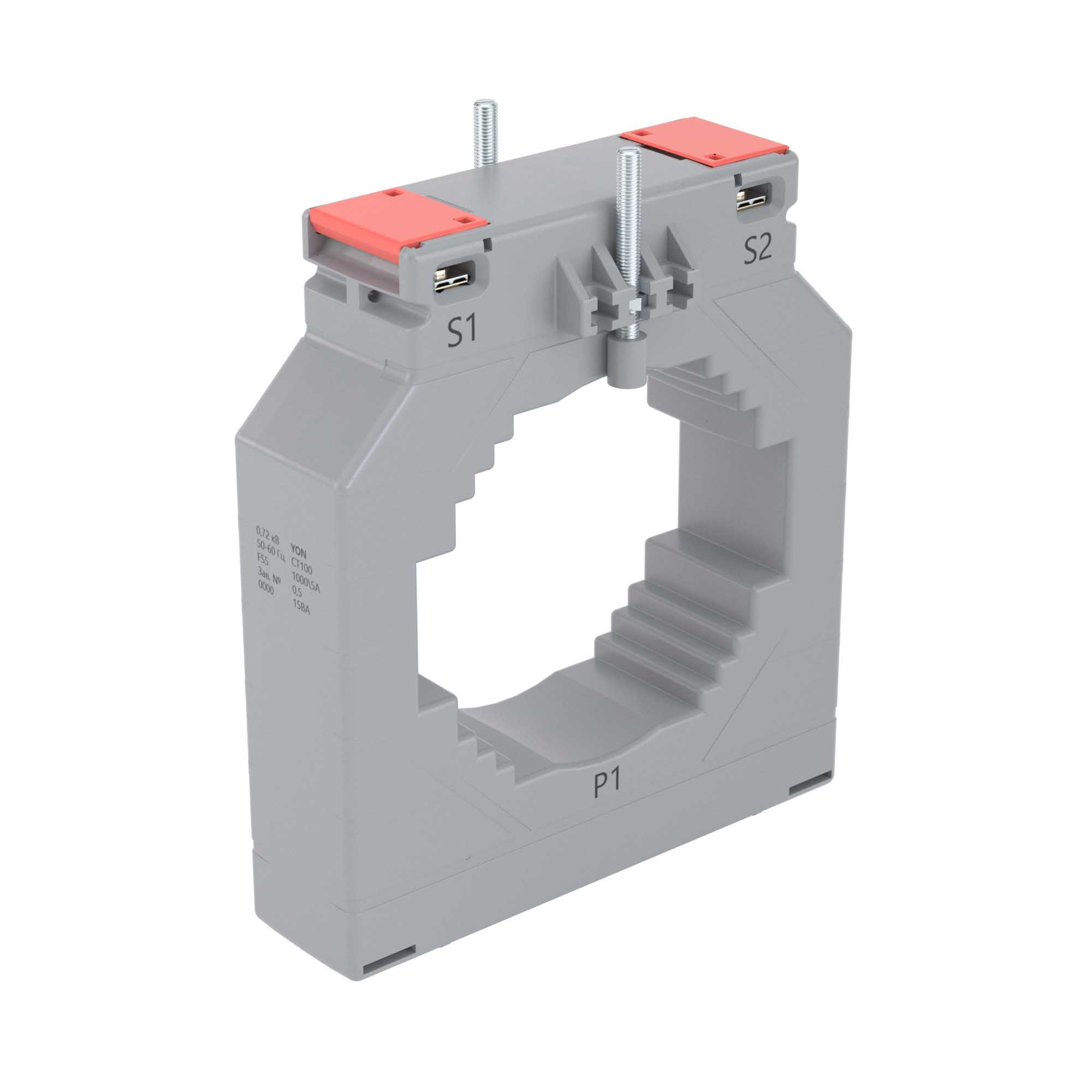

current transformer CT100 1200/5A, accuracy class - 0.1200, power - 15VA

Code: CT100-1200-0.5-15
current transformer CT100 1200/5A, accuracy class - 0.1200, power - 15VA
current transformer CT100 1200/5A, accuracy class - 0.1200, power - 15VA

current transformer CT100 1200/5A, accuracy class - 0.1200, power - 15VA

Code: CT100-1200-0.5-15
Model Single-phase current converter
Accuracy class 0.5
Calibrated Yes

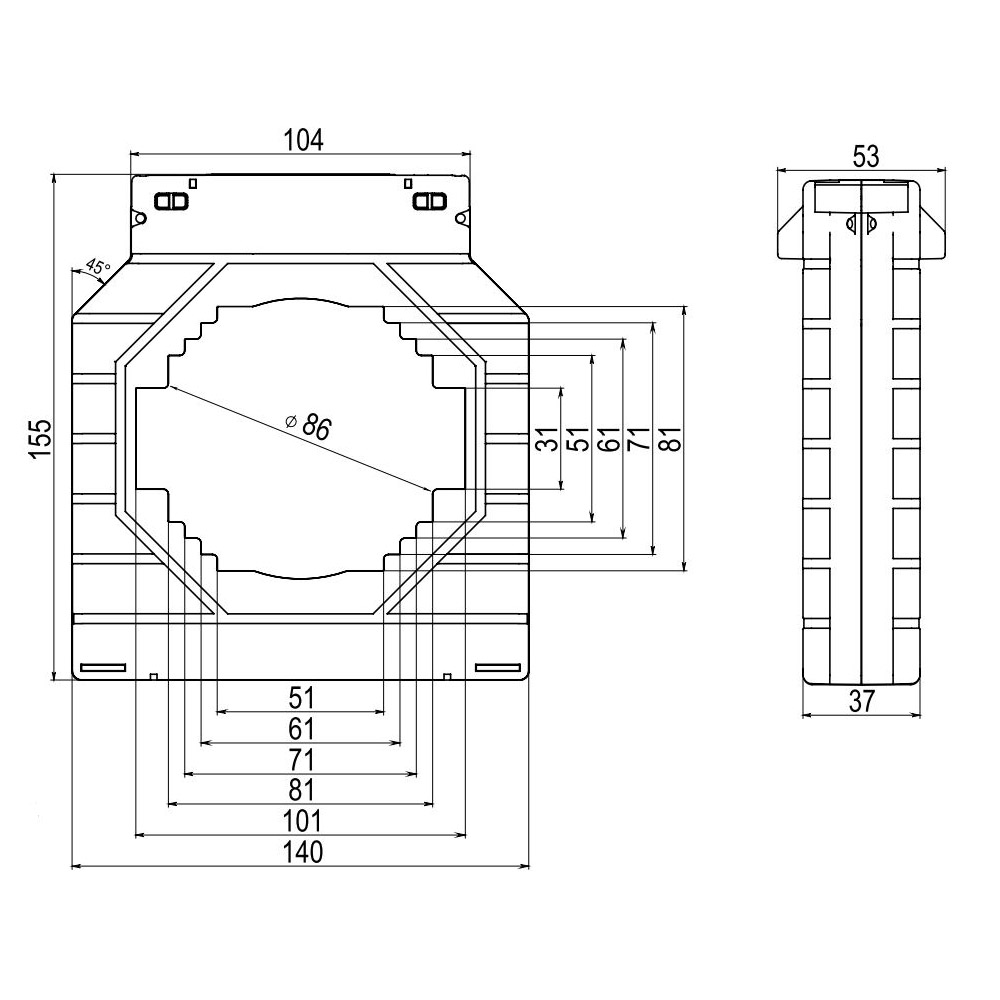

Width opening, mm 100
Height opening, mm 80
Opening diameter, mm 85
Number of primary inputs 1
With copper rail No
Primary rated current, A 1200
Snap mounting No
Secondary connection Cable
Secondary rated apparent power, VA 15
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT100-1200-0.5-15
Series YON CT
Primary winding current 1200 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
Hole width 100 mm
