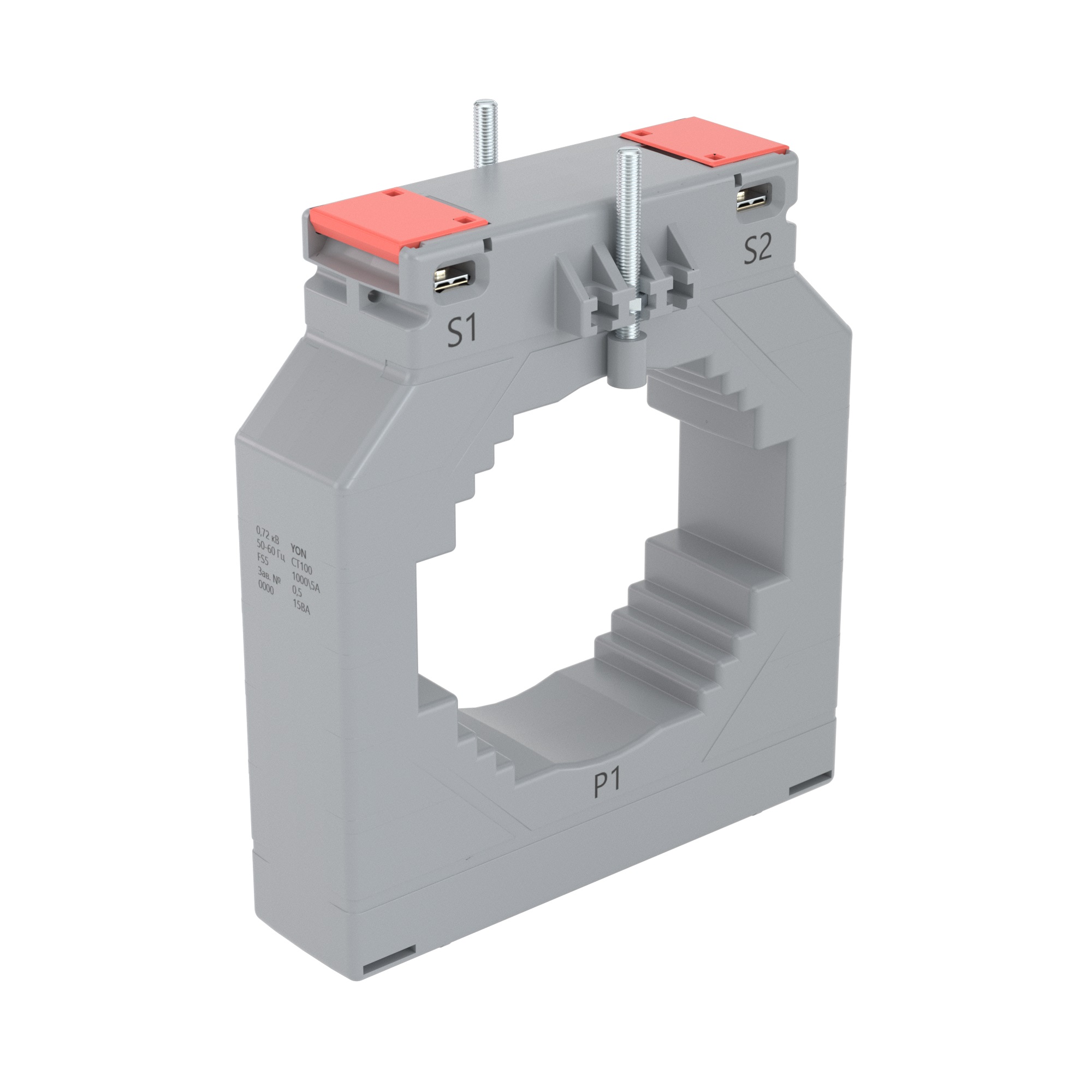

Current transforme CT100 2500/5А, accuracy class-0.2S, power -10ВА
Code: CT100-2500-0.2S-10
Current transforme CT100 2500/5А, accuracy class-0.2S, power -10ВА
Code: CT100-2500-0.2S-10
| Model | Single-phase current converter |
| Accuracy class | 0.2 |
| Calibrated | Yes |
| Width opening, mm | 100 |
| Height opening, mm | 80 |
| Opening diameter, mm | 85 |
| Number of primary inputs | 1 |
| With copper rail | No |
| Primary rated current, A | 2500 |
| Snap mounting | No |
| Secondary connection | Cable |
| Secondary rated apparent power, VA | 10 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Marking | CT100-2500-0.2S-10 |
| Series | YON CT |
| Primary winding current | 2500 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.2S |
| Hole width | 100 mm |
