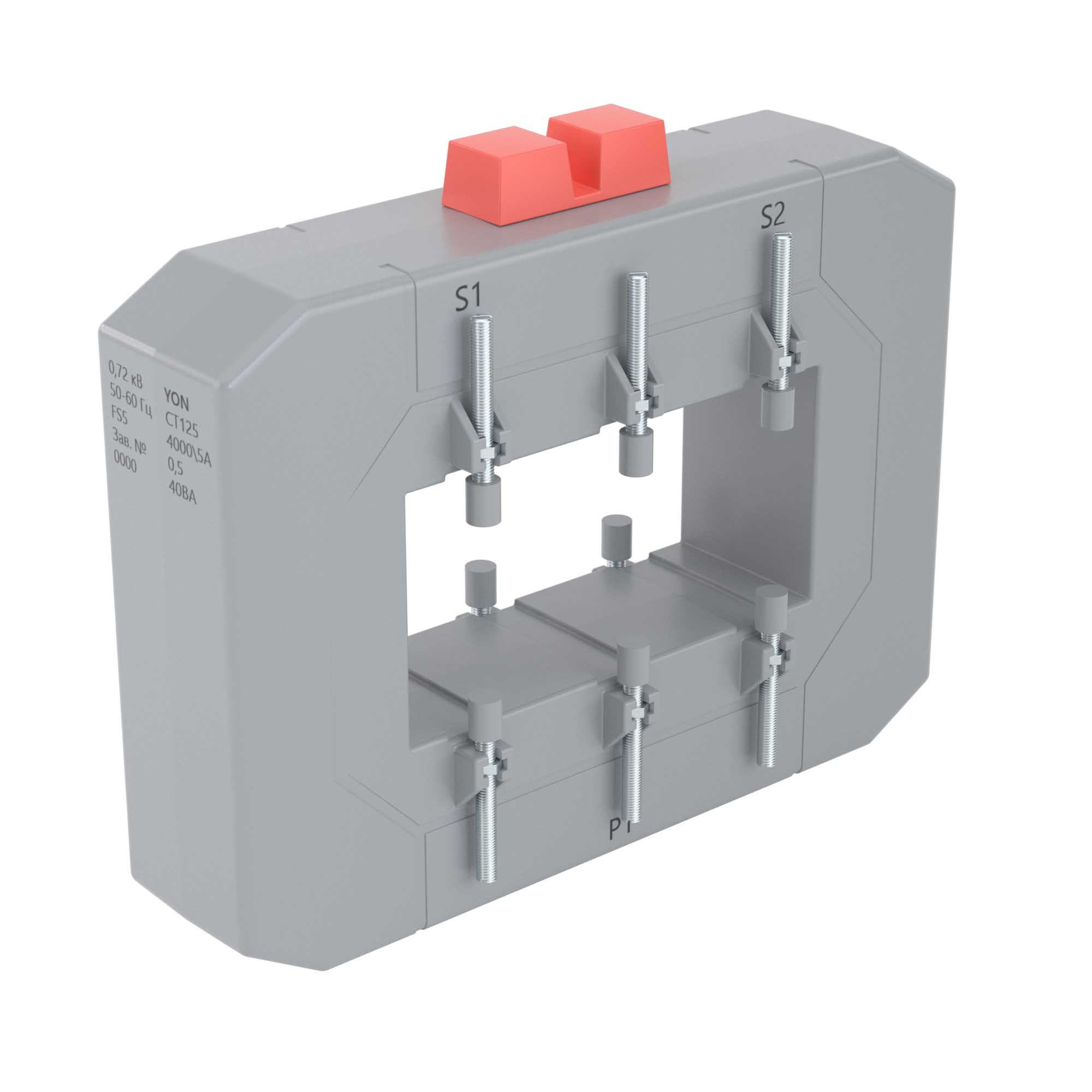

Current transformer CT125 5000/5А, accuracy class -0.2S, power - 30ВА
Code: CT125-5000-0.2S-30
Current transformer CT125 5000/5А, accuracy class -0.2S, power - 30ВА
Code: CT125-5000-0.2S-30
| Model | Single-phase current converter |
| Accuracy class | 0.2 |
| Calibrated | Yes |

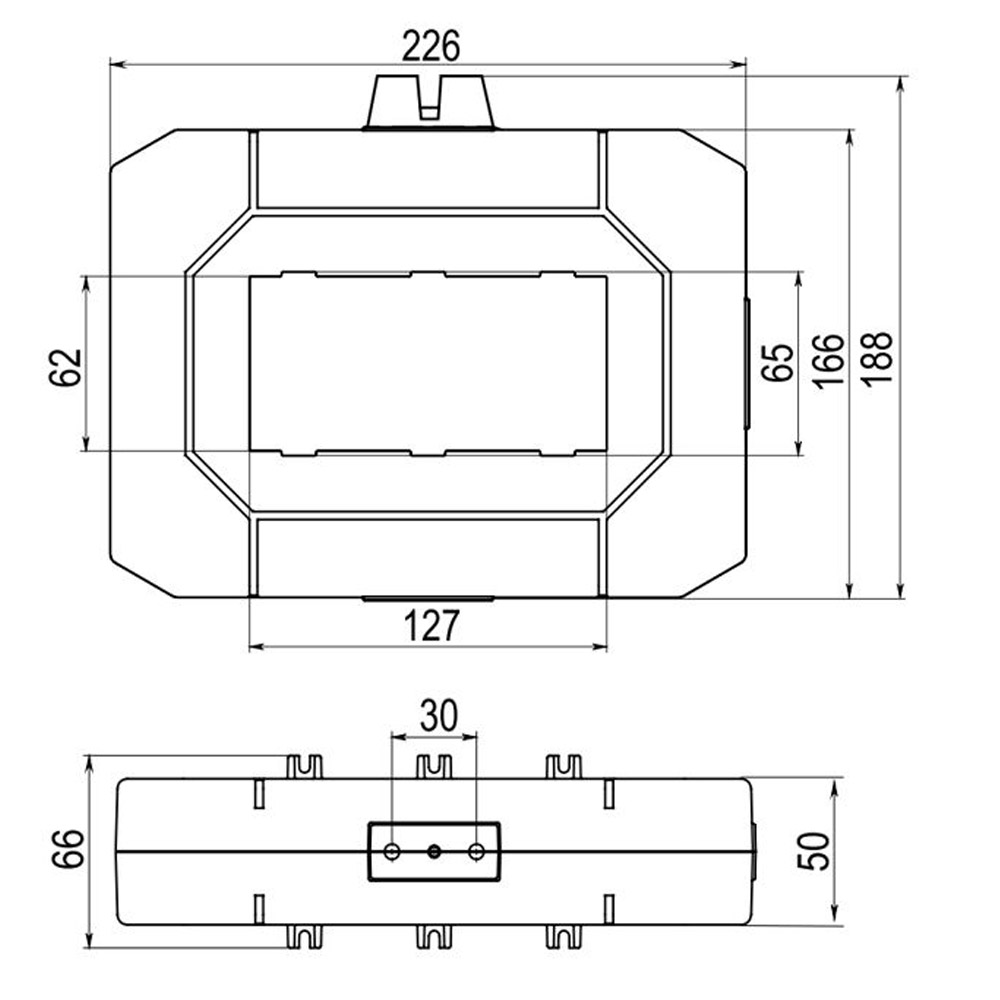

| Width opening, mm | 127 |
| Height opening, mm | 62 |
| Opening diameter, mm | 62 |
| Number of primary inputs | 1 |
| With copper rail | No |
| Primary rated current, A | 5000 |
| Snap mounting | No |
| Secondary connection | Cable |
| Secondary rated apparent power, VA | 30 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Marking | CT125-5000-0.2S-30 |
| Series | YON CT |
| Primary winding current | 5000 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.2S |
| Hole width | 127 mm |
