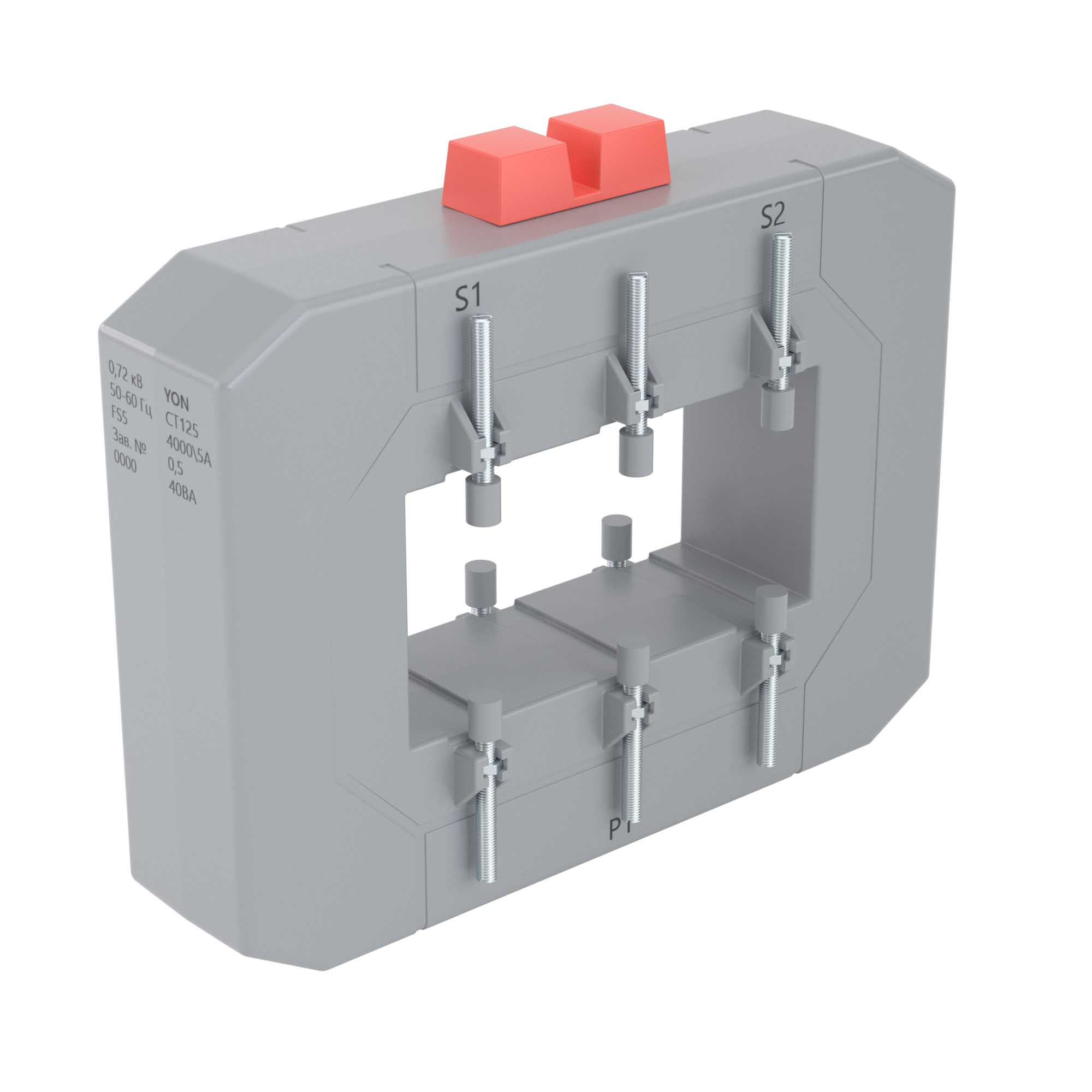

Current transformer CT125 750/5А, accuracy class -0.2S, power - 10ВА
Code: CT125-750-0.2S-10
Current transformer CT125 750/5А, accuracy class -0.2S, power - 10ВА
Code: CT125-750-0.2S-10
Model | Single-phase current converter |
Accuracy class | 0.2 |
Calibrated | Yes |

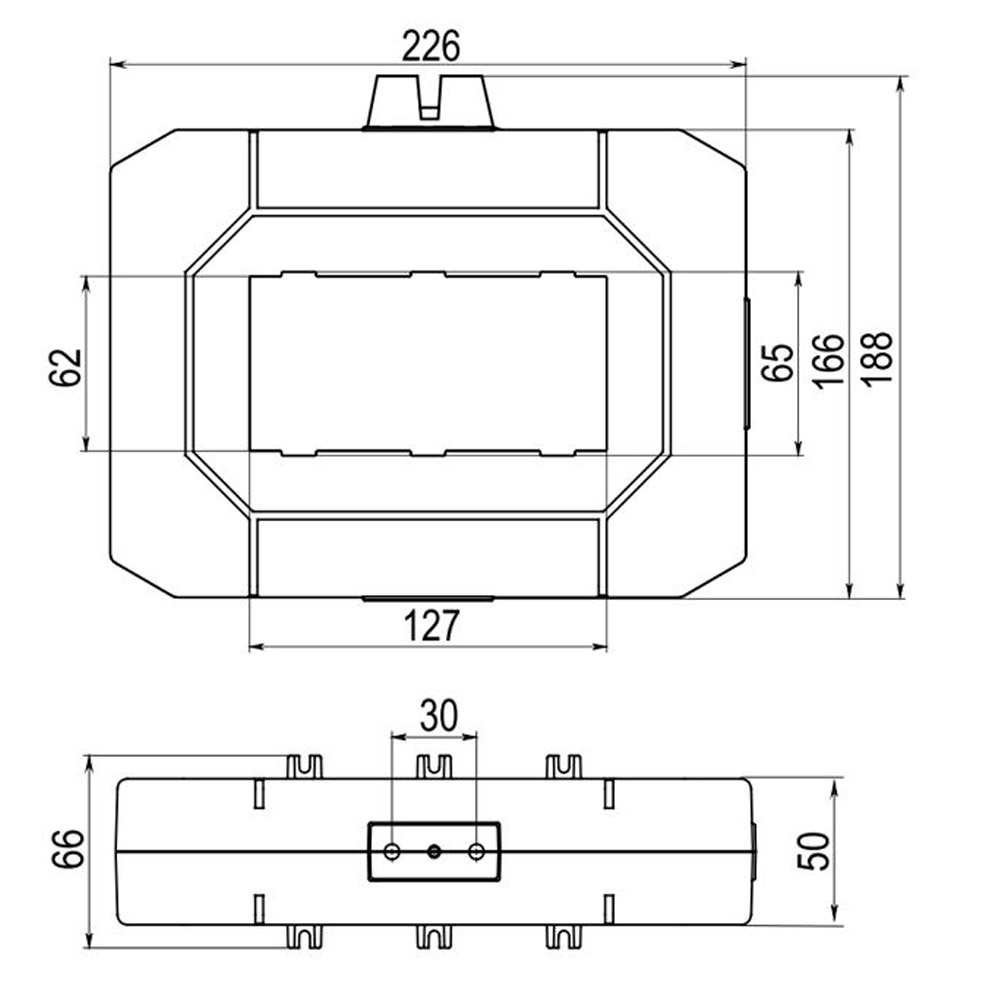

Width opening, mm | 127 |
Height opening, mm | 62 |
Opening diameter, mm | 62 |
Number of primary inputs | 1 |
With copper rail | No |
Primary rated current, A | 750 |
Snap mounting | No |
Secondary connection | Cable |
Secondary rated apparent power, VA | 10 |
Secondary rated current, A | 5 |
Over current limiting factor | FS 5 |
With shock protection | Yes |
Marking | CT125-750-0.2S-10 |
Series | YON CT |
Primary winding current | 750 A |
Secondary winding current | 0.20833333333333 |
Accuracy class | 0.2S |
Hole width | 127 mm |
