No name
Code: CT40-300-0.2-1,5
No name
Code: CT40-300-0.2-1,5
| Model | Single-phase current converter |
| Accuracy class | 0.2 |
| Calibrated | Yes |

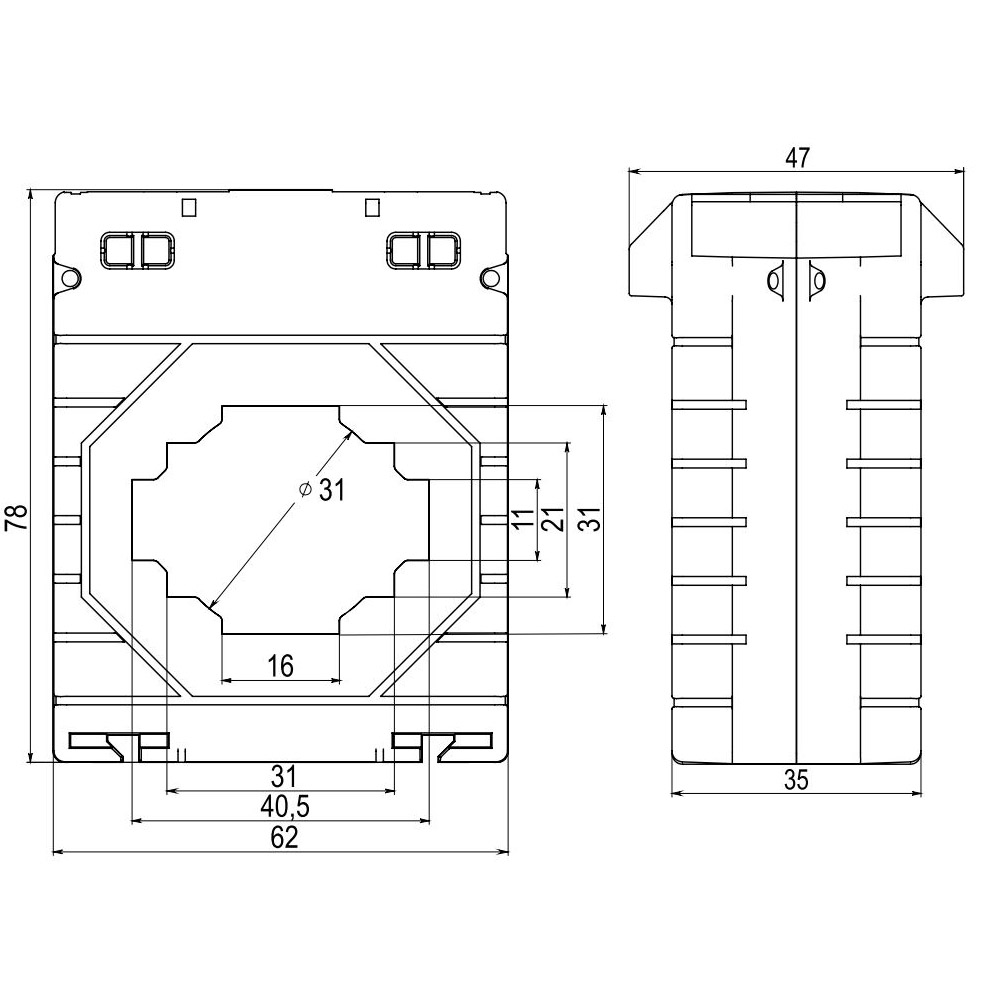

| Width opening, mm | 40 |
| Height opening, mm | 30 |
| Opening diameter, mm | 30 |
| Number of primary inputs | 1 |
| With copper rail | No |
| Primary rated current, A | 300 |
| Snap mounting | No |
| Secondary connection | Cable |
| Secondary rated apparent power, VA | 1.5 |
| Secondary rated current, A | 5 |
| Over current limiting factor | FS 5 |
| With shock protection | Yes |
| Marking | CT40-300-0.2-1,5 |
| Series | YON CT |
| Primary winding current | 300 A |
| Secondary winding current | 0.20833333333333 |
| Accuracy class | 0.2 |
| Hole width | 40 mm |
