Current transformer CT80 250/5А, accuracy class -0.5, power - 1ВА

Code: CT80-250-0.5-1
Current transformer CT80 250/5А, accuracy class -0.5, power - 1ВА
Current transformer CT80 250/5А, accuracy class -0.5, power - 1ВА

Current transformer CT80 250/5А, accuracy class -0.5, power - 1ВА

Code: CT80-250-0.5-1
Model Single-phase current converter
Accuracy class 0.5
Calibrated Yes

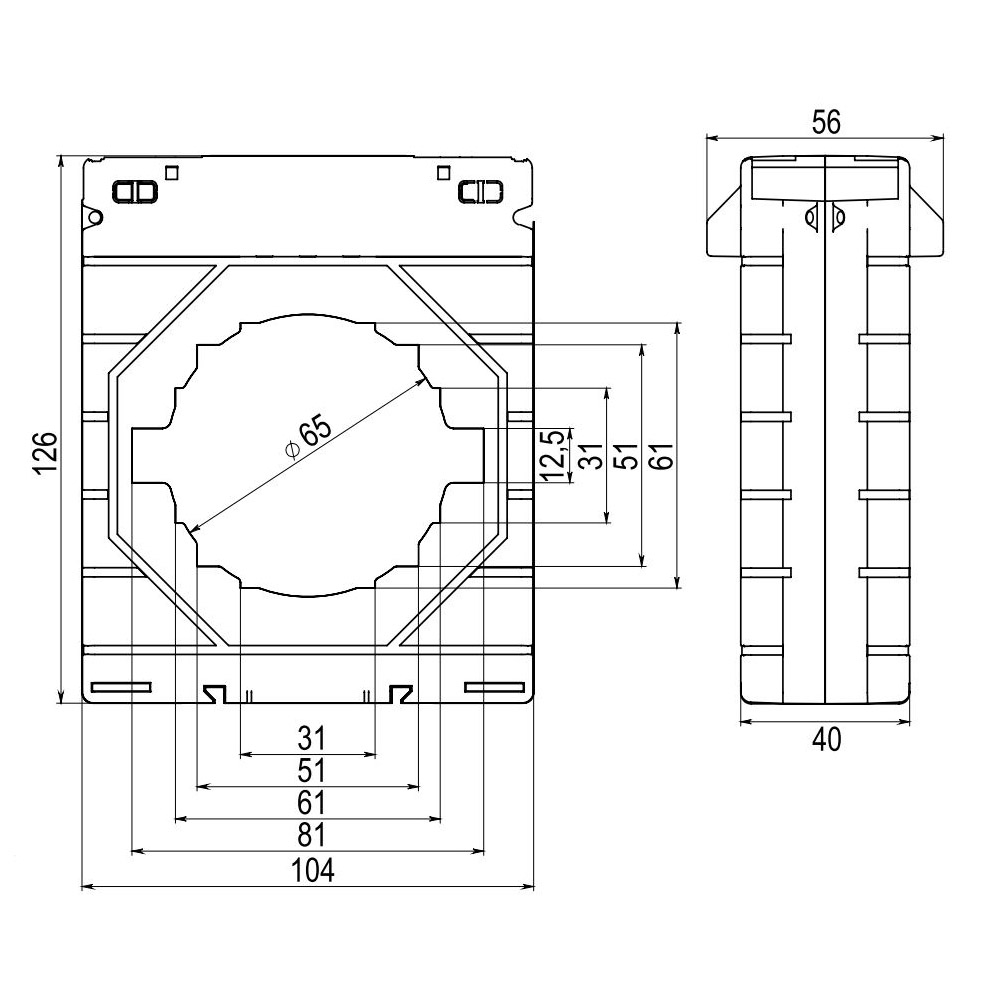

Width opening, mm 80
Height opening, mm 60
Opening diameter, mm 65
Number of primary inputs 1
With copper rail No
Primary rated current, A 250
Snap mounting No
Secondary connection Cable
Secondary rated apparent power, VA 1
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Primary winding current 250 A
Secondary winding current 0.20833333333333
Accuracy class 0.5
Hole width 80 mm
