Current transformer CT80 750/5А, accuracy class -0.2, power - 5ВА

Code: CT80-750-0.2-5

Current transformer CT80 750/5А, accuracy class -0.2, power - 5ВА

Code: CT80-750-0.2-5
Model Single-phase current converter
Accuracy class 0.2
Calibrated Yes

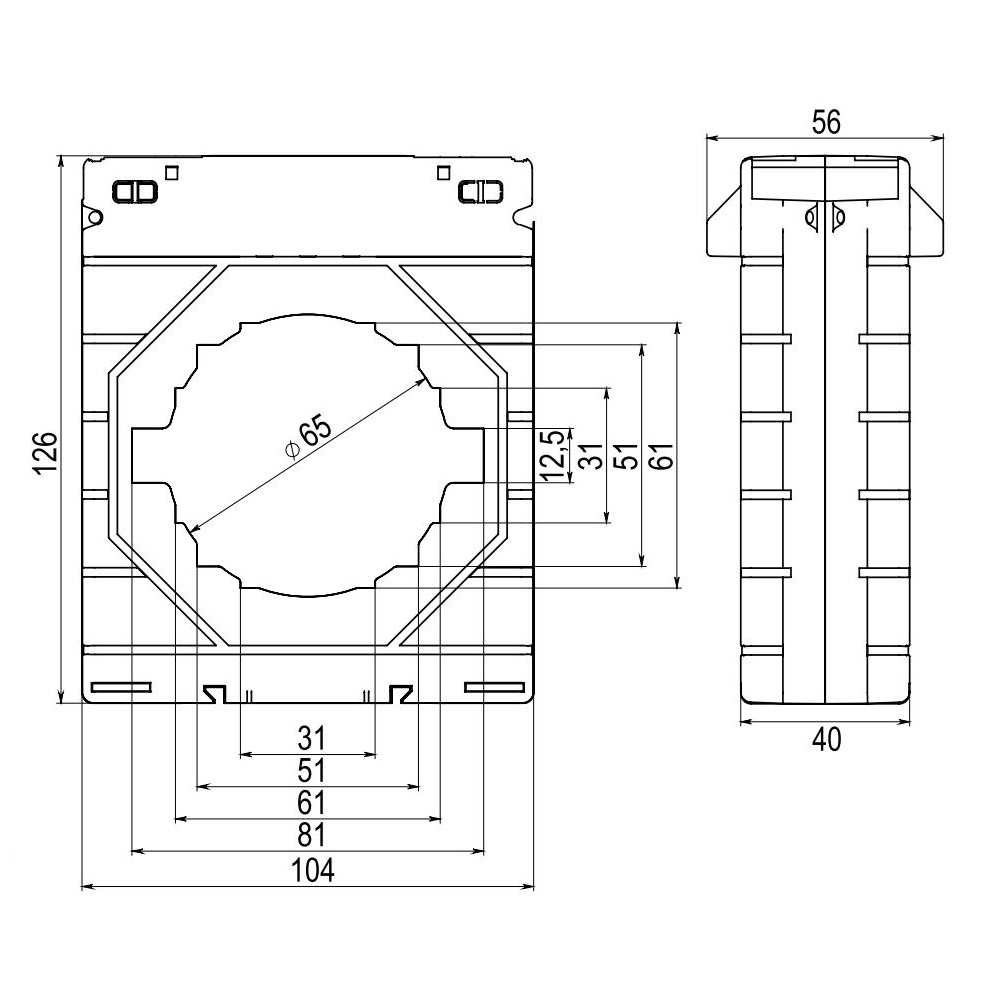

Width opening, mm 80
Height opening, mm 60
Opening diameter, mm 65
Number of primary inputs 1
With copper rail No
Primary rated current, A 750
Snap mounting No
Secondary connection Cable
Secondary rated apparent power, VA 5
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT80-750-0.2-5
Series YON CT
Primary winding current 750 A
Secondary winding current 0.20833333333333
Accuracy class 0.2
Hole width 80 mm
