Current transformer CT80 800/5А, accuracy class -0.2, power - 5ВА

Code: CT80-800-0.2-5
Current transformer CT80 800/5А, accuracy class -0.2, power - 5ВА
Current transformer CT80 800/5А, accuracy class -0.2, power - 5ВА
Code: CT80-800-0.2-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Single-phase current converter
Accuracy class 0.2

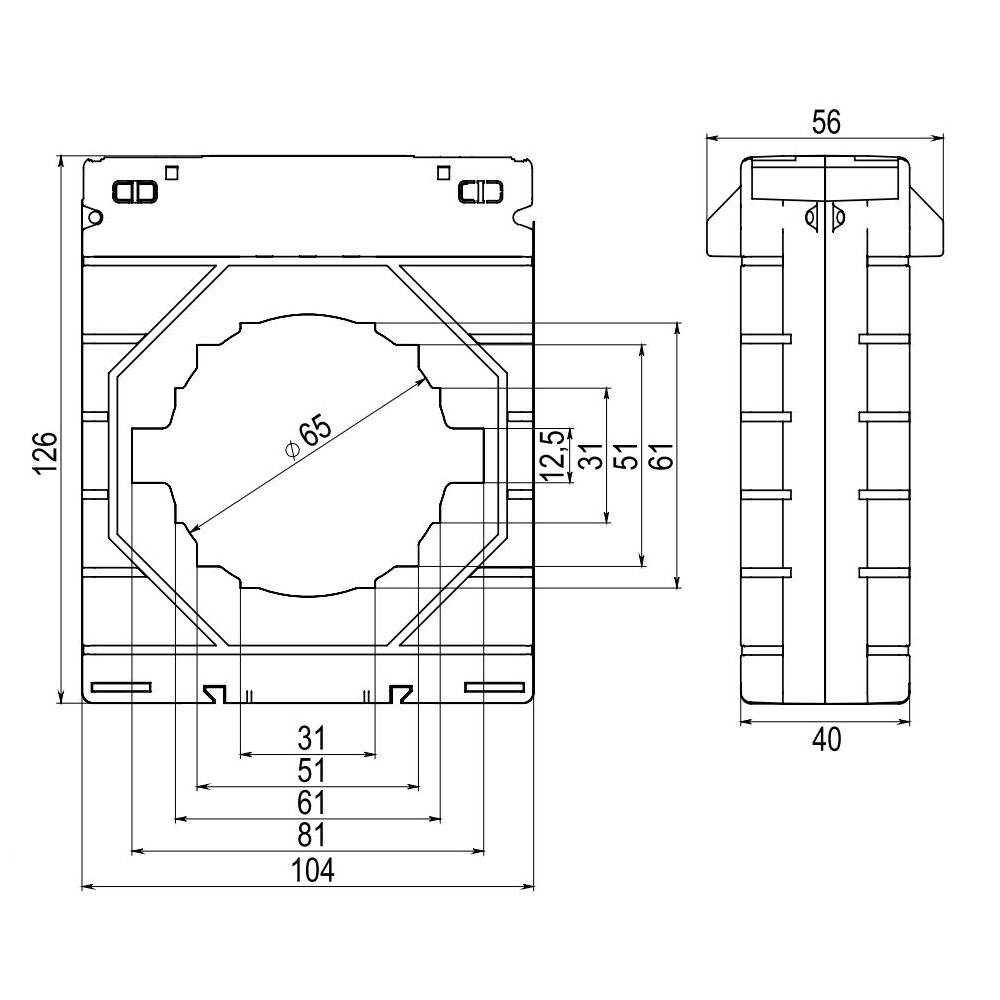

Width opening, mm 80
Height opening, mm 60
Opening diameter, mm 65
Number of primary inputs 1
With copper rail No
Primary rated current, A 800
Snap mounting No
Secondary connection Cable
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CT80-800-0.2-5
Series YON CT
Primary winding current 800 A
Secondary winding current 0.20833333333333
Accuracy class 0.2
Hole width 80 mm
Russian Classification of Products by Economic Activities (OKPD 2) 27.11.42
Commodity Nomenclature of Foreign Economic Activity 8504312909
