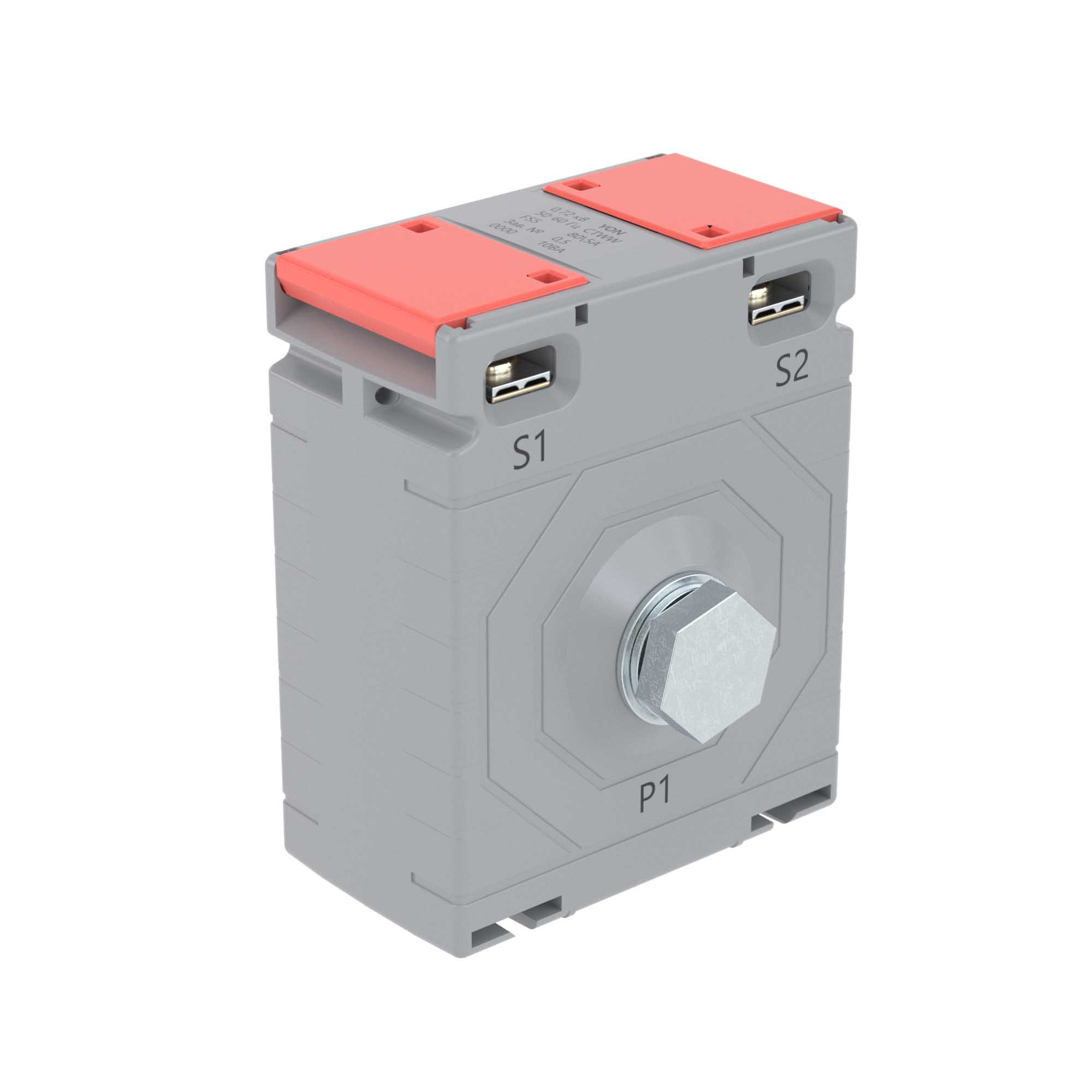

Current transformer CTWW 100/5А, accuracy class -0.2, power - 5ВА

Code: CTWW-100-0.2-5

Current transformer CTWW 100/5А, accuracy class -0.2, power - 5ВА

Code: CTWW-100-0.2-5
Removed from the product range
Model Attachable current transformer
Accuracy class 0.2
Calibrated No
Number of primary inputs 1
With copper rail Yes
Primary rated current, A 100
Snap mounting No
Secondary connection Screw connection
Secondary rated apparent power, VA 5
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Marking CTWW-100-0.2-5
Series YON CT
Primary winding current 100 A
Secondary winding current 0.20833333333333
Accuracy class 0.2
