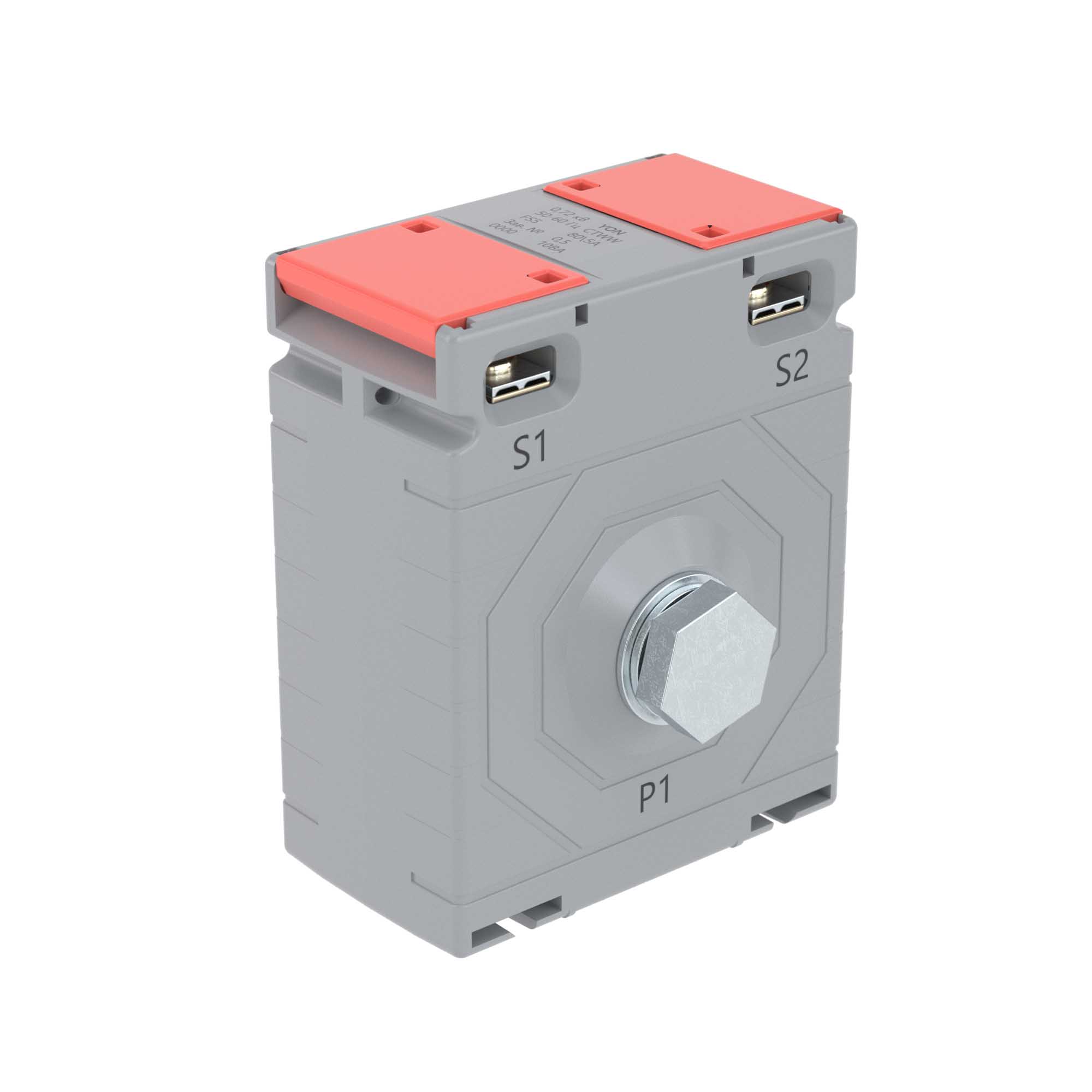

Current transformer CTWW 120/5А, accuracy class -0.2S, power - 1ВА
Code: CTWW-120-0.2S-1
Current transformer CTWW 120/5А, accuracy class -0.2S, power - 1ВА
Code: CTWW-120-0.2S-1
Model | Attachable current transformer |
Accuracy class | 0.2 |
Calibrated | No |
Number of primary inputs | 1 |
With copper rail | Yes |
Primary rated current, A | 120 |
Snap mounting | No |
Secondary connection | Screw connection |
Secondary rated apparent power, VA | 1 |
Secondary rated current, A | 5 |
Over current limiting factor | FS 5 |
With shock protection | Yes |
Primary winding current | 120 A |
Secondary winding current | 0.20833333333333 |
Accuracy class | 0.2S |
