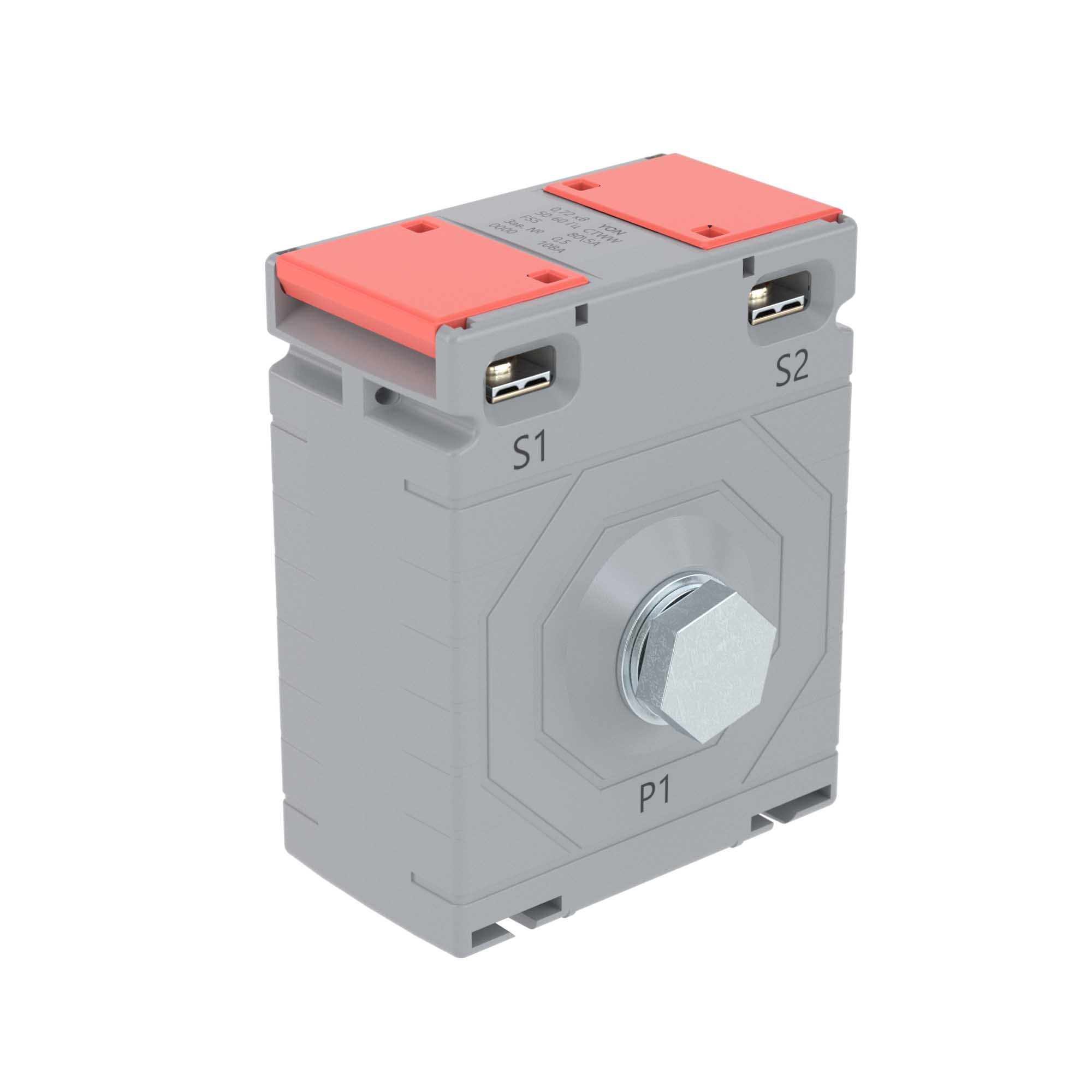

Current transformer CTWW 120/5А, accuracy class -0.5S, power - 5ВА

Code: CTWW-120-0.5S-5
Current transformer CTWW 120/5А, accuracy class -0.5S, power - 5ВА
Current transformer CTWW 120/5А, accuracy class -0.5S, power - 5ВА
Code: CTWW-120-0.5S-5
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Model Attachable current transformer
Accuracy class 0.5
Number of primary inputs 1
With copper rail Yes
Primary rated current, A 120
Snap mounting No
Secondary connection Screw connection
Secondary rated current, A 5
Over current limiting factor FS 5
With shock protection Yes
Primary winding current 120 A
Secondary winding current 0.20833333333333
Accuracy class 0.5S
