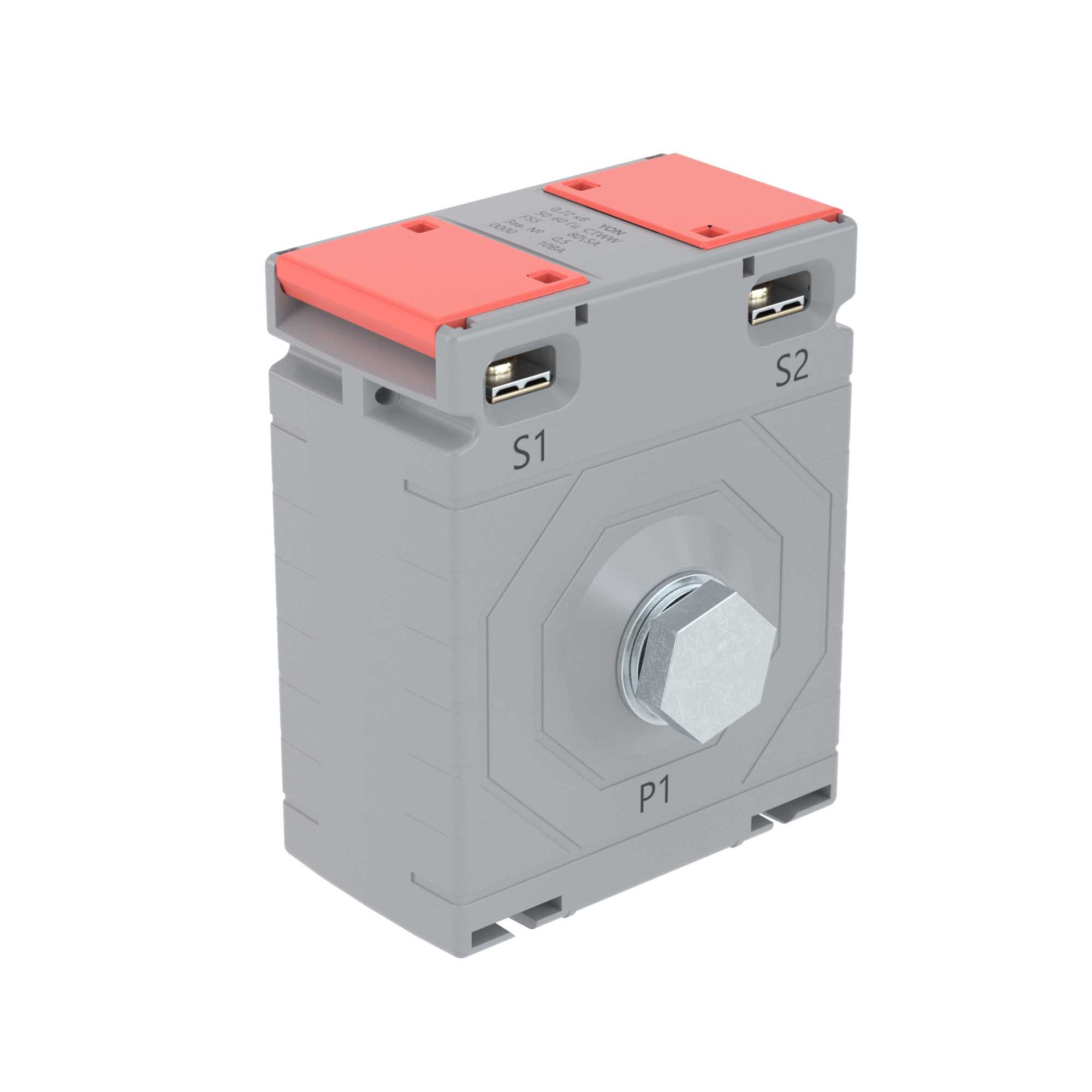

current transformer CTWW 50/5A, accuracy class - 0.50, power - 5VA
Code: CTWW-50-0.5S-5
current transformer CTWW 50/5A, accuracy class - 0.50, power - 5VA
Code: CTWW-50-0.5S-5
Model | Attachable current transformer |
Accuracy class | 0.5 |
Calibrated | No |

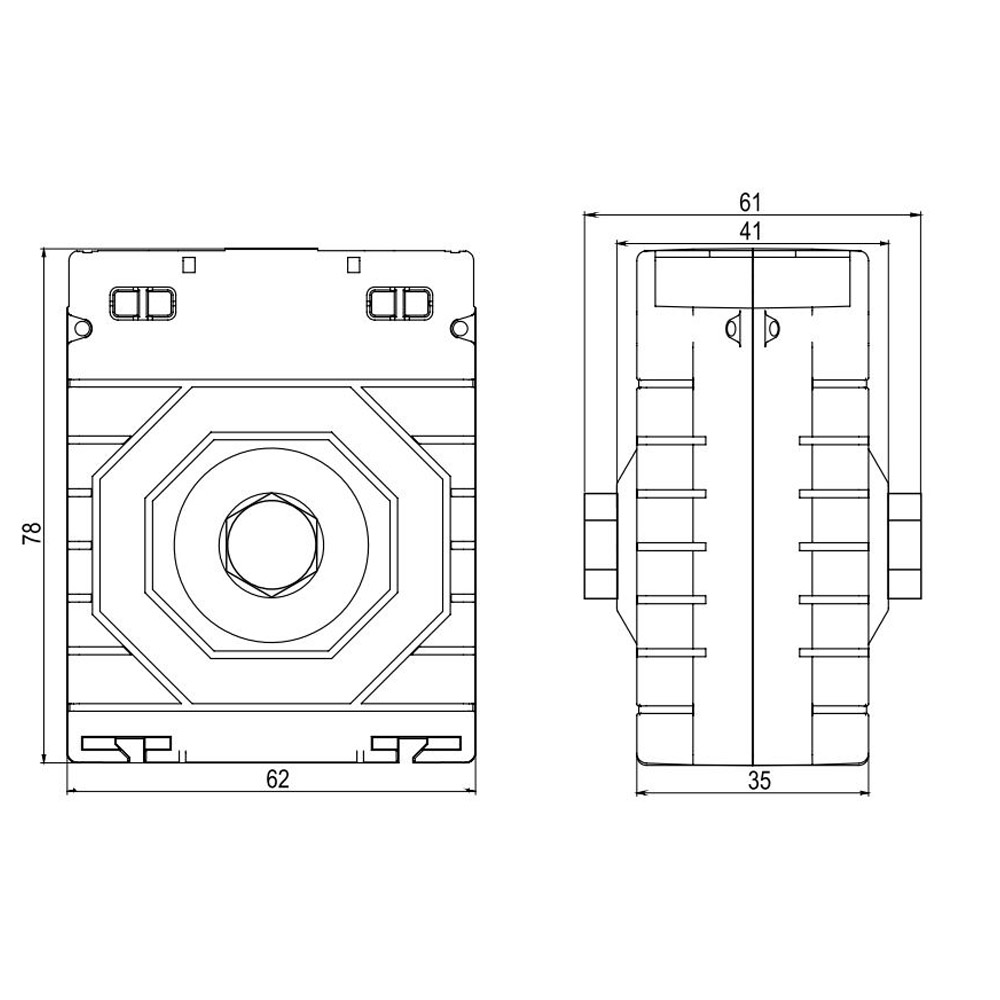

Opening diameter, mm | 30 |
Number of primary inputs | 1 |
With copper rail | Yes |
Primary rated current, A | 50 |
Snap mounting | No |
Secondary connection | Cable |
Secondary rated apparent power, VA | 5 |
Secondary rated current, A | 5 |
Over current limiting factor | FS 5 |
With shock protection | Yes |
Marking | CTWW-50-0.5S-5 |
Series | YON CT |
Primary winding current | 50 A |
Secondary winding current | 0.20833333333333 |
Accuracy class | 0.5S |
