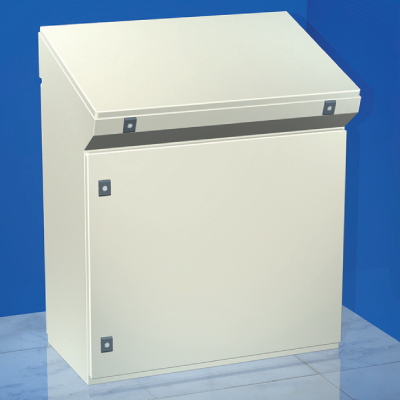

The control panel PN, width 1200 mm

Code: R5PN1200
The control panel PN, width 1200 mm
The control panel PN, width 1200 mm
  • To ask a question
Colour Grey
Width, mm 1200
Height, mm 973
Depth, mm 380
RAL-number 7035
Number of doors 1
Material Steel
Degree of protection (IP) IP55
Surface finishing Powder coating
Component of the desk system Desk console
Material Painted steel
Enclosure type Console
Product type Console elements
Drawings
Seria Name DWG STEP DWG (dynamic.)
Metal enclosures - "RAMblock"
The control panel PN, width 1200 mm
RAR
339.76 Kb
RAR
2.02 Mb
Metal enclosures - "RAMblock"
A remote control console (dynamic blocks)
RAR
6.92 Mb
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
