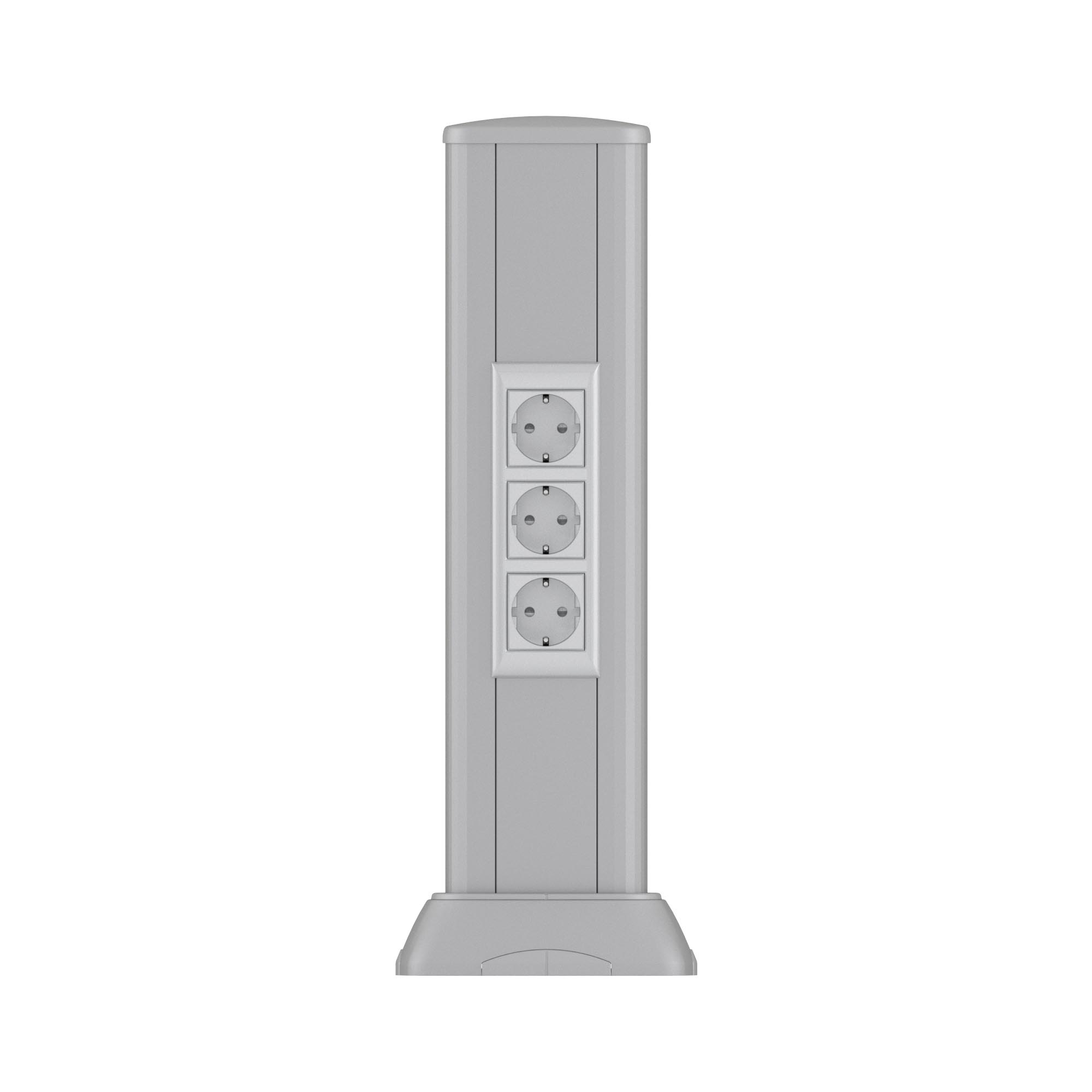

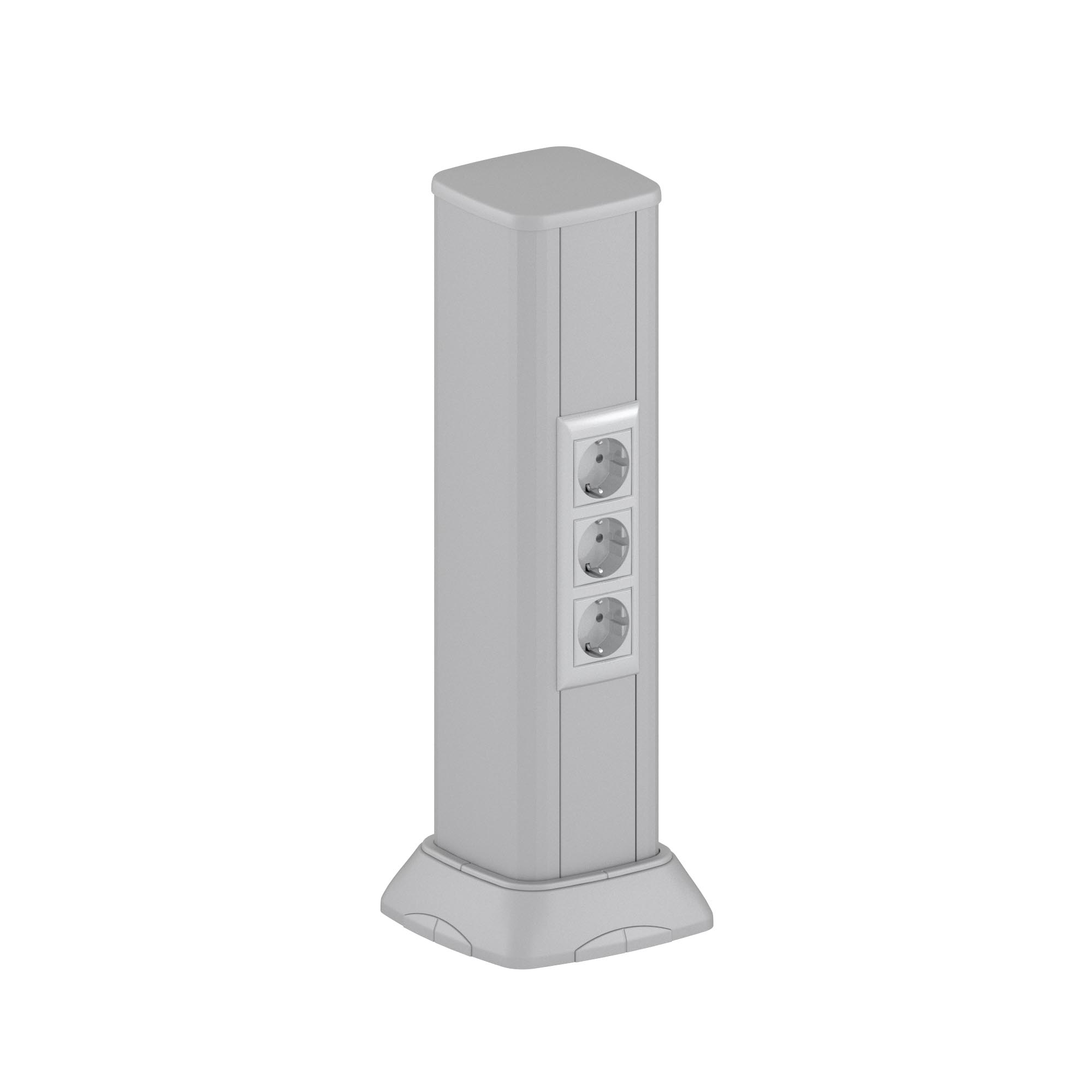

Column, aluminum, 0.5 m, space gray

Code: 19554
Column, aluminum, 0.5 m, space gray
  • To ask a question
Model Other
Adjustable No
Type of fastening Screwing
Number of usable covers 2
Number of partitions 2…3
Cover width, mm 60
Column height, mm 500
Material installation column Aluminium
Material cover Aluminium
Ceiling mounting No
Pillar shape Rectangular
Colour cover Stone grey
Colour column Stone grey
Prewired No
Material installation column halogen free Yes
Material cover halogen free Yes
Material quality installation column Other
RAL-number column 9006
Colour Dark silvery
Color gray
Material Aluminium

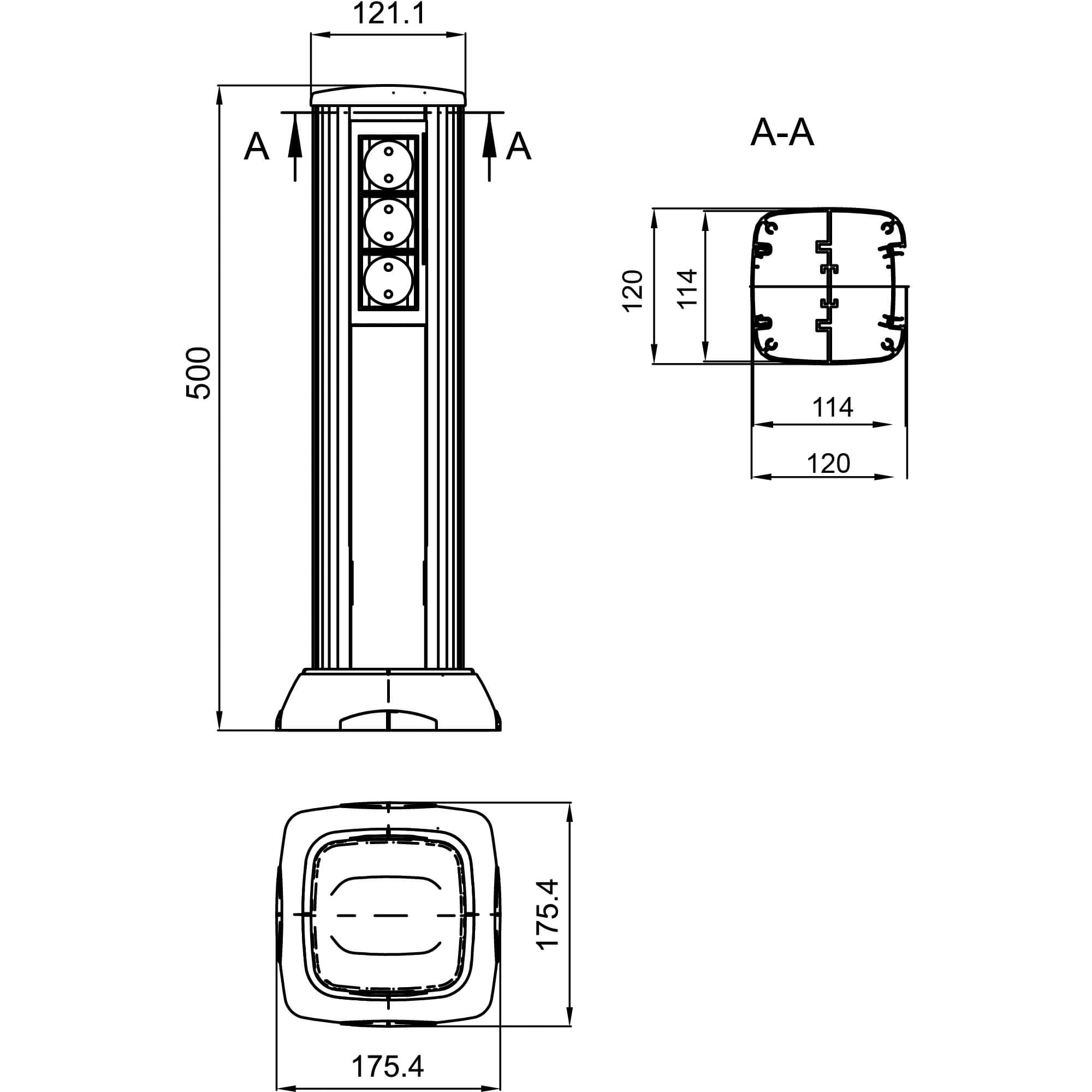

Height, mm 500
Width, mm 173х173
Temperature of mounting, °C 25С+60С
Width (nominal), mm 120х120
Ingress Protection rating, IP IP40
Average filled area, 4905+4905
Summarized profile area (max), 9810
Temperature of operation, °C 25С +60С
Temperature of operation, °C +60
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 2
Height (nominal), mm 500
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Column
