| Colour | Black |
| RAL-number | 9005 |
| Width outside dimension, mm | 231 |
| Width built-in dimension, mm | 218 |
| Length external dimension, mm | 198 |
| Length built-in dimension, mm | 182 |
| Suitable for wet cleaning | No |
| Suitable for hollow floor | Yes |
| Cover model | Rectangular |
| Number of socket outlets with protective-earth clips | 4 |
| Material | Other |
| Min. built-in depth, mm | 72 |
| Depth of flooring recess, mm | 73 |
| Degree of protection (IP) | IP53 |
| Temperature of mounting, °C | -25°С ... +60°С |
| Ingress Protection rating, IP | IP53 |
| Temperature of operation, °C | -25°С ... +60°С |
| Climate version | UHL4 |

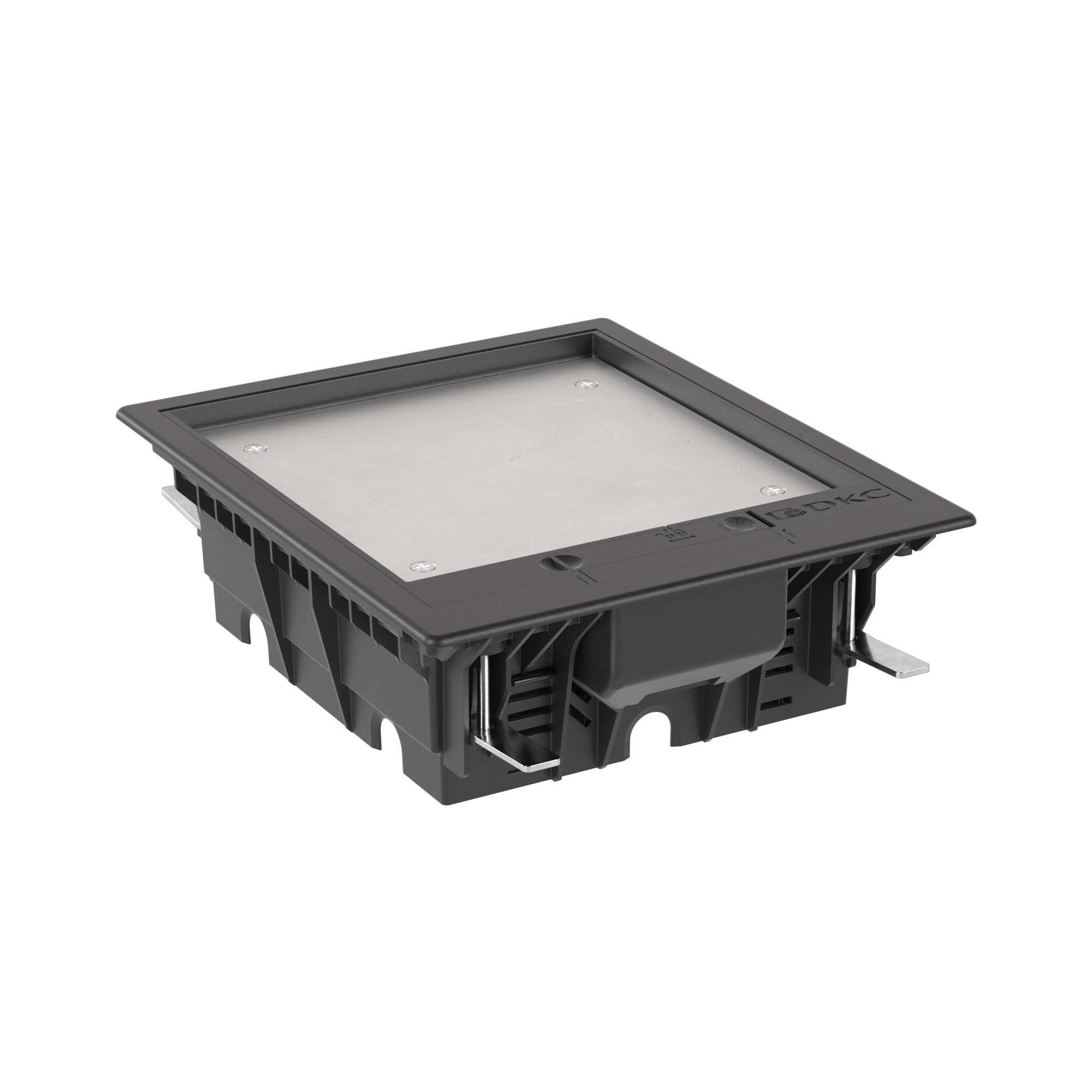

| Product type | Under floor box |
